Model：PT-T1200-S60LK2

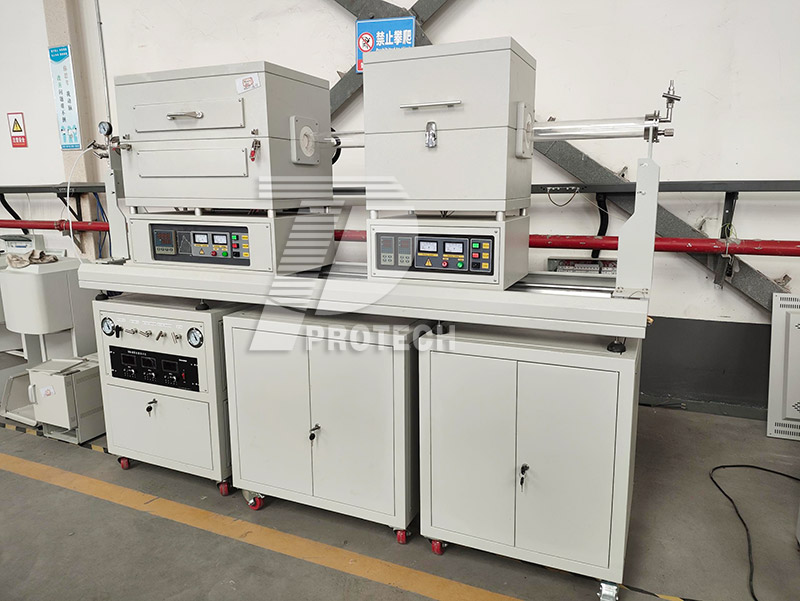

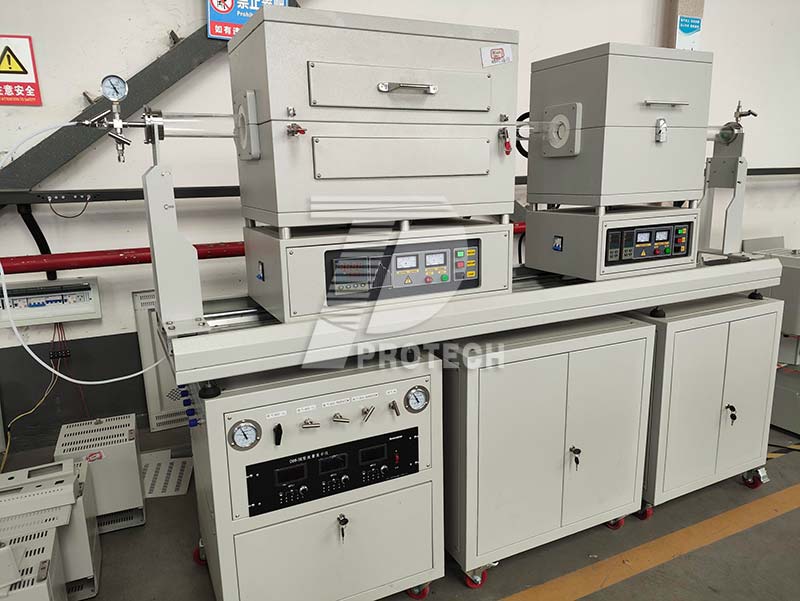

Description：CVD Double Furnace Sliding Tube Furnace is composed of a 1400°C tube furnace, a 1200°C tube furnace and a gas system. The hearth is made of high-quality high-purity alumina polycrystalline fiber. The material has good thermal insulation performance.
Product description:
PT-T1200-S60LK2 sliding tube furnace can heat samples in different environments such as vacuum, atmosphere, and air. It is mainly used for rapid annealing, silicidation, diffusion, crystallization and densification of various materials.
Main product advantages:
(1).Double-layer steel structure with cooling fan.
(2). A pair of sliding rails are installed on the bottom of the furnace, and the furnace can be moved left and right manually.
(3). Install vacuum flange and mechanical pressure gauge, ready for immediate use.
| 1400℃ tube furnace part | |
| Furnace structure | Double-layer shell structure, equipped with cold air system, automatic cooling furnace shell temperature does not exceed 50 ℃ |
| Furnace material | High-quality high-purity alumina polycrystalline fiber solidified furnace with vacuum adsorption molding technology from Japan. The material has good thermal insulation performance, high reflectivity, and balanced temperature field. |
| maximum temperature | 1400℃ |
| continuous working temperature | ≤1300℃ |
| Heating rate | Recommended ≤10°C/min, the fastest heating rate is 20°C/min |
| Furnace tube material | Depending on the temperature of use, replace the tubes of different materials |
| Furnace tube size | Outer diameter: 60mm |
| Heating zone length | 500mm |
| Temperature Control System |
The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Adopt PID method to adjust temperature control, and can set 30 heating and cooling programs 2. Temperature control accuracy ±1ºC 3. With over-temperature protection and burnout protection 4. The instrument has the function of temperature self-tuning |
| Heating element | High temperature silicon carbide rod |
| Temperature measuring element | S type thermocouple |
| Working power | AC220V，50Hz |
| rated power | 5KW(subject to actual power) |
| sliding device |
Cr-plated thick steel plate two-way slide rails can realize the movement of the tube furnace to achieve rapid heating and cooling Shared slideway with 1200℃ tube furnace |
| 1200℃ tube furnace part | |
| Furnace structure | Double-layer shell structure, equipped with cold air system, automatic cooling furnace shell temperature does not exceed 50 ℃ |
| Furnace material | High-quality high-purity alumina polycrystalline fiber solidified furnace with vacuum adsorption molding technology from Japan. The material has good thermal insulation performance, high reflectivity, and balanced temperature field. |
| continuous working temperature | ≤1100℃ |
| Heating rate | Recommended ≤10°C/min, the fastest heating rate is 20°C/min |
| Furnace tube size | Φ60mm (The length is subject to the actual temperature) |
| Heating zone length | 300mm |
| Temperature Control System |
The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Adopt PID method to adjust temperature control, and can set 30 heating and cooling programs 2. Temperature control accuracy ±1ºC 3. With over-temperature protection and burnout protection 4. The instrument has the function of temperature self-tuning |
| Heating element | Molybdenum alloy resistance wire |
| Temperature measuring element | K type thermocouple |
| Working power | AC220V，50/60Hz |
| rated power | 3KW (subject to actual power) |
| sliding device |
Cr-plated thick steel plate two-way slide rails can realize the movement of the tube furnace to achieve rapid heating and cooling Shared slideway with 1400℃ tube furnace |
| Flange seal | The 1400°C tube furnace and the 1200°C tube furnace share a quartz tube and slideway, the two ends of the quartz tube are sealed with stainless steel flanges, the left flange has an air inlet, and the right flange is an air outlet |
| Air system part | |
| Mass flowmeter |
Three-way precision mass flowmeter: digital display, automatic control of gas flow. MFC1 Range: 0-500 sccm (range optional) MFC2 range: 0-500 sccm (range optional) MFC3 range: 0-500 sccm (range optional) Air way: 3 way Flow accuracy: 0.2% Inlet and outlet ports: 1/4" ferrules Each gas path has an independent stainless steel needle valve control. The gas flow is adjusted by the knob on the control panel. |
| Standard configuration | 1 host, 1 set of gas system, 1 set of flange, 1 piece of quartz tube, 2 pieces of furnace plug, 1 piece of crucible hook, 1 pair of high-temperature gloves, 1 copy of instruction manual, 1 copy of certificate and warranty card |
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
