Model：PT-TCVD1100-S100CK1
Description：The CVD tube furnace produced by Zhengzhou Protech is widely used for sintering, coating, nanotube research, brazing, annealing and other experiments of samples under vacuum and atmosphere conditions. It is suitable for scientific research and experiments on CVD process in universities, research institutions, laboratories and industrial and mining enterprises.
The CVD tube furnace produced by Zhengzhou Protech is widely used for sintering, coating, nanotube research, brazing, annealing and other experiments of samples under vacuum and atmosphere conditions. It is suitable for scientific research and experiments on CVD process in universities, research institutions, laboratories and industrial and mining enterprises.Click to view more CVD furnaces, or click to consult online customer service to learn more products!

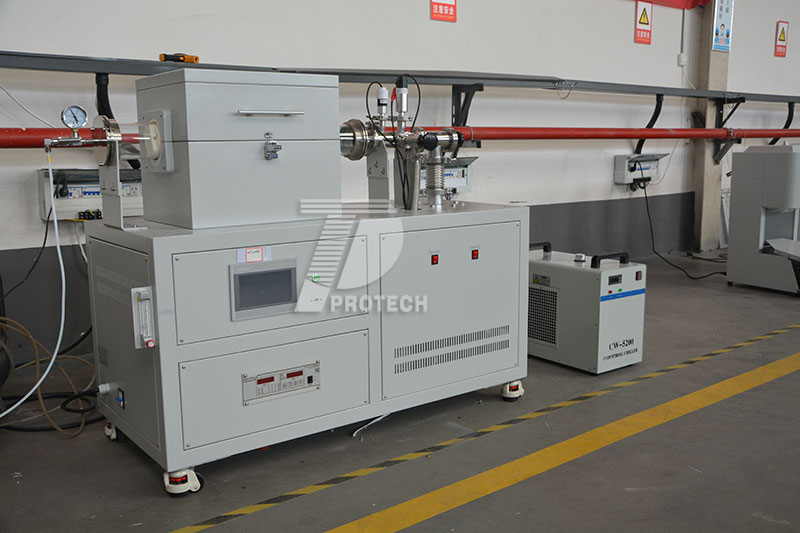

Actual photo of 1100C CVD vacuum tube furnace
1. Double layer shell opening structure: The double layer shell opening structure is convenient for taking and placing furnace tubes, equipped with an air cooling system, and the temperature of the furnace shell is kept within a safe range.
2. LCD touch screen operating system: Adopting the LCD touch screen operating system, the operation is convenient and fast, and the data can be stored and output through EXCEL.
3. Excellent dynamic sealing system: A silicone O-ring is used for compression sealing between the furnace tube and the flange, which is easy to remove and has strong sealing performance, allowing the equipment to maintain an atmospheric state during rotation.
| Model | PT-TCVD1100-S100CK1 | |||
| Part I: Tube Furnace | ||||
|
PT-TCVD1100-S100CK1 CVD tube furnace |
Display | LCD touch screen easy to operate | ||
| Furnace Structure |
•Double-layer steel structure with air cooling. •High purity Al2O3 fibrous insulation with Max. energy saving. |
|||
| Max. Temperature | 1200℃ for short time | |||
| Working Temperature | ≤1100°C ( continuous) | |||
| Heating Rate | 0~20℃/min，≤10℃/min recommended | |||
| Heating Zone Length | 300mm | |||
| Heating Element | Resistance wire with mo | |||
| Tube Material | High purity quartz | |||
| Thermal Couples | K type | |||
| Temperature Control Accuracy | ±1℃ | |||
| Tube Size | 1 qty |

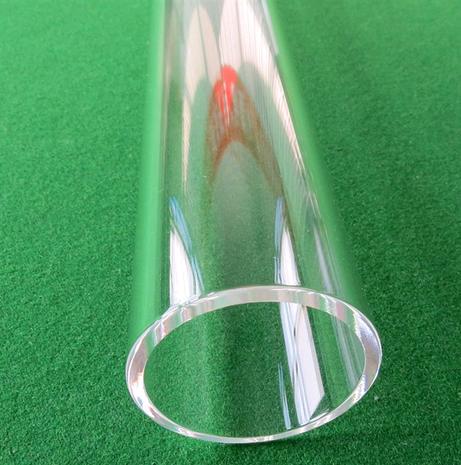

High purity quartz tube Outer diameter: 100mm  |
||
| Temperature Control |
•LCD touch screen control with 16 temperature curves can be saved,each temperature curve can be automatically set with 30 steps programmable. •PID automatic control via SCR power control. •Built-in Over Temperature and Thermocouple Failure Protection. |
|||
| Vacuum Flange | Stainless Steel vacuum flange with valve | |||
| Part II: Vacuum system | ||||
| High Vacuum diffusion Pump Set |
Rotary vane pump,Diffusion pump system
Ultimate vacuum: 0.0001 mbar  |
|||
| Water chiller | CW5200 water chiller to cool the pumps | |||

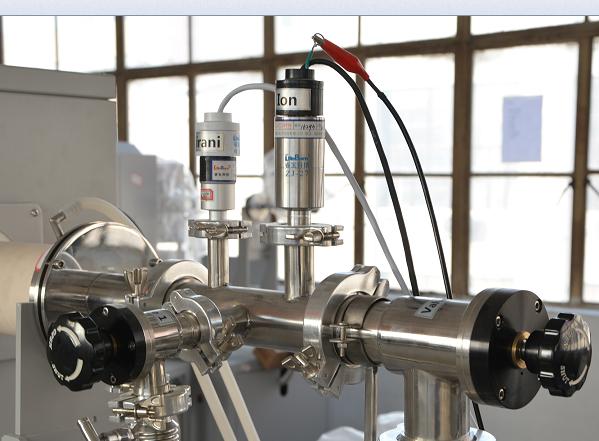

| Vacuum gauge |
Resistance vacuum gauge
Ionization vacuum gauge  |
|||
| Part III: Float flowmeter | ||||

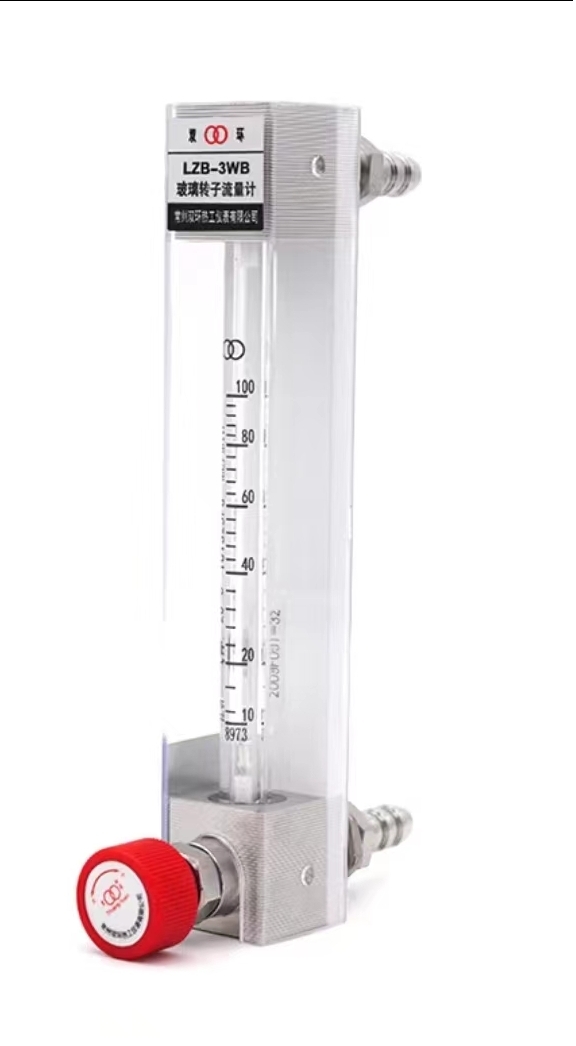

| Float flowmeter |
Standard flow range:
10-100ml/min for gas (Final flow range is based on customer’s requirement)  |
|||
| Pressure Gauge |

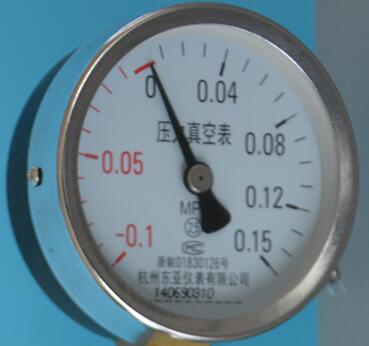

Mechanical pressure gauge (-0.1Mpa to 0.15Mpa)
 |
|||
| Power | 4KW | |||
| Power Supply | 220~240V,50/60HZ | |||
| Compliance | CE and ISO Certification | |||
| Warranty | One year limited warranty (Consumable parts such as heating elements and tube are not covered by the warranty) with lifetime support . | |||

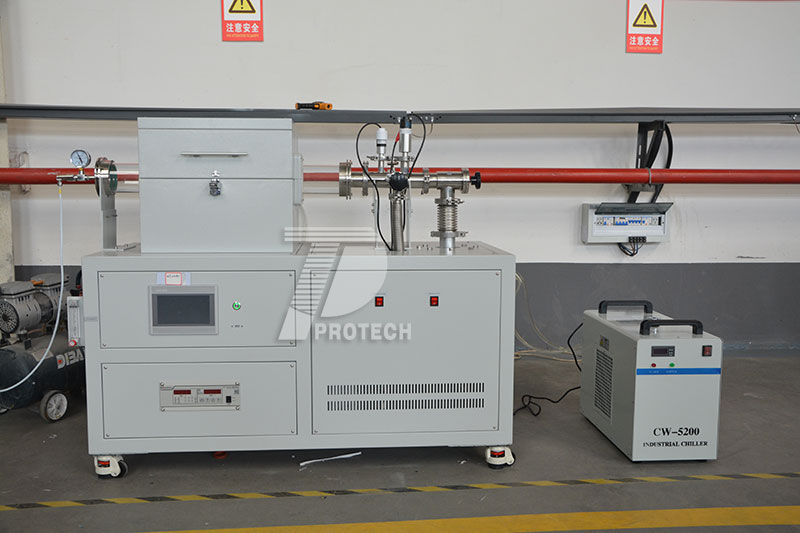

Actual photo of 1100C CVD vacuum tube furnace

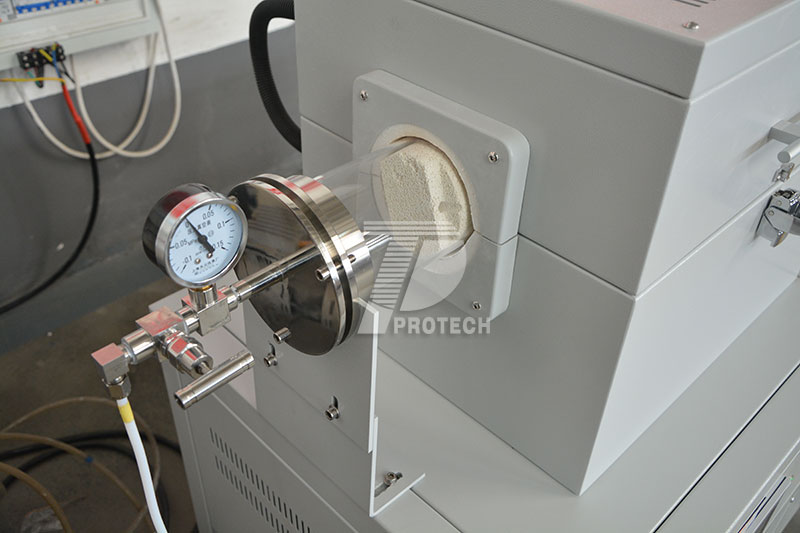

Actual photo of 1100C CVD vacuum tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
