Product Introduction:

The PT-TCD1100-S60CK2CVD system mainly consists of a 1200 degree dual temperature zone slide tube furnace, a high vacuum molecular pump vacuum system, a 6-channel mass flow meter gas supply system, and other connecting components; Six gas sources can be connected simultaneously, and the gas flow rate is accurately measured and controlled using a touchscreen 6-channel mass flow controller. Fast cooling and heating of materials can be achieved by sliding left and right on the guide rail; Mainly used for conducting experiments and production related to vapor deposition in universities, research centers, and manufacturing enterprises. Click to view more CVD furnaces!

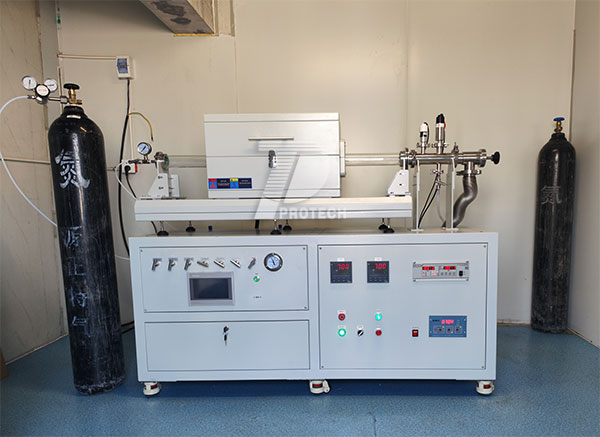

Actual photo of 1200 ℃ dual temperature zone slide CVD tube furnace

Product advantages:

1. The furnace body adopts an upper and lower "open close" structure, which is easy to take and place furnace tubes;
2. The furnace is designed with convection grids inside, which makes it easy for the airflow inside the furnace to form upward and downward convection circulation, which is beneficial for furnace temperature balance and uniform temperature field.
3. The entire furnace body adopts a double-layer inner liner structure with an air gap in the middle for isolation. Even if the furnace temperature reaches up to 1000 ℃, the surface of the furnace body can still be safely touched without a feeling of scalding.
4. The heating elements in the furnace are evenly distributed in a circular axial direction, and the heating elements have been embedded and solidified. The thermal energy radiation during heating is uniform and mild.
5. The gas flow rate is accurately measured and controlled using a touchscreen 6-channel mass flow controller.
6. The high vacuum molecular pump unit can quickly replace gas in the furnace tube and achieve high vacuum inside the tube.

Technical parameters:
