Compared with ordinary tube furnaces, multi temperature zone tube furnaces have shown great advantages in multiple aspects, which make them widely used in materials science research, industrial production and other fields. Let's take a look at the advantages of multi zone tube furnaces compared to ordinary tube furnaces!

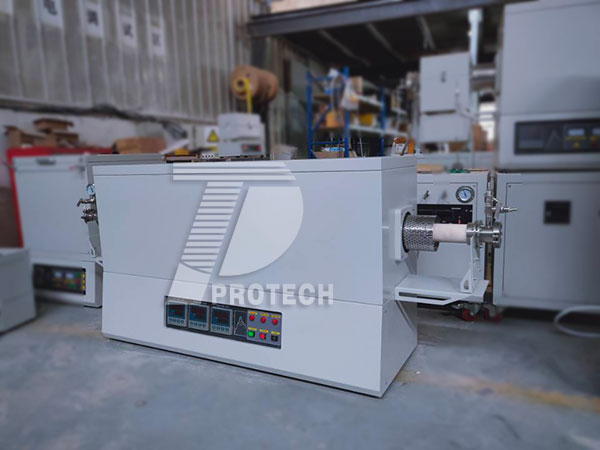

Three commonly used temperature zone tube furnaces (click on the image to view product details)

1. More flexible temperature control
Multi zone independent control: The multi zone tube furnace has multiple heating zones, and each heating zone can be independently set and controlled for temperature. This design enables the device to meet complex heating process requirements and is particularly suitable for material processing processes that require different temperature gradients or segmented heating.
High precision temperature control: The multi zone tube furnace is equipped with an excellent temperature control system, which can usually achieve temperature control accuracy of ± 1 ℃ or even higher. This is important for processes that require high temperature accuracy, such as metal calcination and material sintering, to ensure the stability and consistency of product quality.

2. Superior heating effect
Uniform heat distribution: The multi temperature zone tube furnace adopts segmented heating and efficient heating elements (such as resistance wires, silicon carbon rods, silicon molybdenum rods, etc.). Through multi-stage heating control, segmented control of the heating zone can be achieved. This design ensures a more uniform distribution of heat within the furnace, avoiding local overheating or uneven temperature.
Fast heating and cooling speed: Multi temperature zone tube furnace has a fast heating and cooling speed, which can reach the set temperature in a short time and quickly cool down after processing. This not only improves production efficiency and reduces production cycles, but also reduces the residence time of materials at high temperatures, avoiding unnecessary reactions or performance changes caused by prolonged high temperatures.

3. Easy to operate
Intelligent control system: Multi temperature zone tube furnaces are usually equipped with intelligent control systems with programmable functions. Operators can flexibly set and adjust heating programs based on the characteristics of materials and process requirements, achieving different heating, insulation, and cooling curves. This intelligent operation method greatly reduces the difficulty of operation and improves work efficiency.
Real time monitoring and alarm: The multi temperature zone tube furnace also has self diagnosis and alarm functions, which can help operators detect abnormal situations in a timely manner, such as overheating, overpressure, overcurrent, disconnection, power outage, etc., ensuring the safety and reliability of operation.

4. More extensive application scope
Multiple atmosphere conditions: In addition to working in a vacuum environment, a multi temperature zone tube furnace can also be filled with various protective or reactive gases (such as nitrogen, argon, other inert gases, etc.) as needed, and the flow rate and pressure of the gases can be controlled. This provides diverse atmospheric conditions for the heat treatment of materials, which can meet the processing needs of different materials in different atmospheres.
Wide range of material applications: Multi temperature zone tube furnaces are suitable for processing various materials, including metal materials (such as iron, copper, aluminum, titanium, etc.), ceramic materials, composite materials, nanomaterials, carbon materials, etc. Whether it is the calcination of metals, preparation of alloys, sintering of ceramics, synthesis of nanomaterials, etc., they can all be carried out in this equipment.

5. Better energy conservation and environmental friendliness
Efficient and energy-saving: The multi zone tube furnace adopts various energy-saving measures, such as good insulation materials and heating elements, to achieve more efficient heating effects. Meanwhile, due to precise temperature control, excessive energy waste and environmental pollution can be avoided.
Compact structure and small footprint: The multi temperature zone tube furnace adopts an integrated design, with a compact structure and small footprint. This allows it to be flexibly arranged in environments with limited space such as laboratories and factories, improving space utilization.

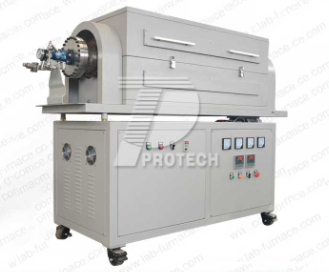

Rotating tilted multi temperature zone tube furnace (click on the image to view product details)

Overall, multi zone tube furnaces have significant advantages over conventional tube furnaces in terms of temperature control, heating efficiency, ease of operation, application scope, and energy conservation and environmental protection. These advantages make multi zone tube furnaces one of the important equipment in materials science research, industrial production, and other fields.Click to learn more multi-Zone tube furnaces! Or click on online customer service to learn more about product information!
