The selection of a muffle furnace with customized furnace size requires comprehensive consideration of multiple factors to ensure that it meets the specific needs of experiments or production. Let's take a detailed look at how to choose below!

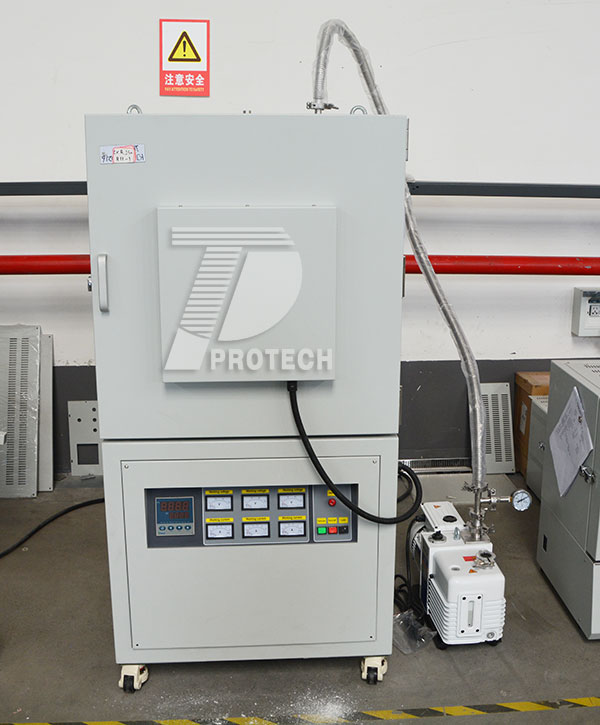

Customized furnace carbonization pyrolysis muffle furnace (click on the picture to view product details)

1. Clearly define the temperature range for use
Temperature upper limit: The upper limit temperature of the muffle furnace should be 100-200 ℃ higher than the actual operating temperature to ensure the stability and safety of the equipment.
Heating element: Select the appropriate heating element according to the required temperature range. For example, resistance wires can be used below 1200 ℃, silicon carbon rods can be used for 1300-1400 ℃, and silicon molybdenum rods can be used for 1400-1700 ℃ or above.

2. Determine the furnace size
Sample volume: The furnace volume generally needs to be selected at least 1.5 times the total volume of the sample to ensure that the sample can be fully heated and does not come into contact with the inner wall of the furnace.
Sample size: If the sample size is large, such as large castings, mechanical parts, etc., it is necessary to choose a muffle furnace with a larger furnace size.
Space utilization efficiency: While meeting the heating requirements of the sample, try to choose a smaller furnace size to save space and energy.

3. Choose furnace material
Fiber material: lightweight, soft texture, good insulation, suitable for scenarios that require rapid heating and energy saving.

4. Consider the power supply voltage
Voltage usage: Determine whether the voltage used for the muffle furnace is 380V or 220V to ensure compatibility with the power supply in the laboratory or production workshop.

5. Pay attention to temperature control accuracy
Temperature control accuracy: A high-precision temperature control system ensures accurate and reliable experimental results. The ideal temperature control accuracy is generally within ± 1 ℃.

6. Consider security performance
Safety function: Choose a muffle furnace with safety functions such as overheating protection, leakage protection, and power-off when opening the door to ensure the safety of operators.

7. Evaluate energy-saving performance
Energy consumption: Energy saving muffle furnaces can reduce operating costs and are also more environmentally friendly. When choosing, attention can be paid to the energy consumption indicators and energy-saving technologies of the equipment.

8. Consider other factors
Heating speed: Choose a muffle furnace with fast heating speed according to experimental requirements to improve experimental efficiency. However, it should also be noted that certain materials are sensitive to heating rates, and excessive heating may lead to changes in material properties.
Net weight of furnace body: The size and net weight of the muffle furnace will affect its handling and installation. When choosing, it is necessary to consider the spatial conditions and handling capacity of the laboratory or production workshop.
Control method: Modern muffle furnaces are usually digitally controlled, which is easy to operate and precise. Some also have programmable control functions, which can set multiple temperature ranges and times to achieve complex heat treatment processes.

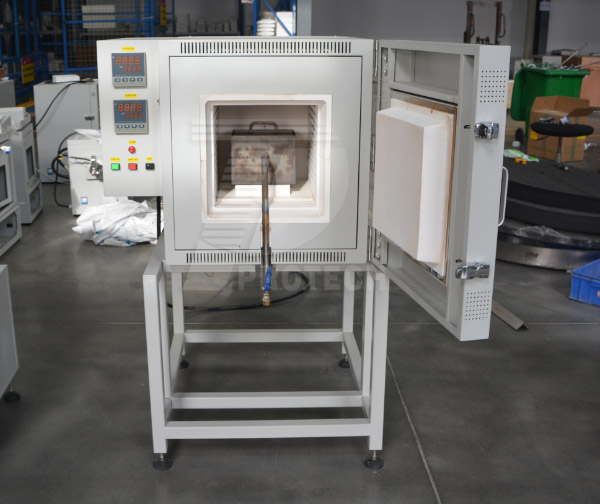

Customized Multi sided Heating Muffle Furnace (Click on the image to view product details)

In general, when choosing a customized muffle furnace, attention should be paid to these aspects to ensure the selection of suitable heat treatment equipment. It is recommended to communicate the corresponding product parameters with the business manager before purchasing!Click to learn more Muffle furnaces! Or click on online customer service to learn more about product information!
