Model：PT-A1200-45LC
Description：The 1200 ℃ box atmosphere furnace adopts a separate design, with the furnace body and control system separated. The door opening method is from the front to the right, which is easy to operate and convenient for loading and unloading materials. All insulation materials and heating elements inside the furnace body are installed from the upper part of the furnace body, equipped with a movable cover plate.
The high-temperature box atmosphere furnace adopts a separate design, with the furnace body and control system separated. The door opening method is from the front to the right, which is easy to operate and easy to load and unload materials. All insulation materials and heating elements inside the furnace body are installed from the upper part of the furnace body, equipped with a movable cover plate. The control system box is equipped with various control components, which operate in a panel style and have a simple and beautiful structure. The entire equipment mainly consists of a lightweight alumina fiber heating and insulation furnace, furnace body, electrical control system, vacuum system, etc. Click to view more atmosphere furnaces! Or click to directly consult online customer service for details!
s

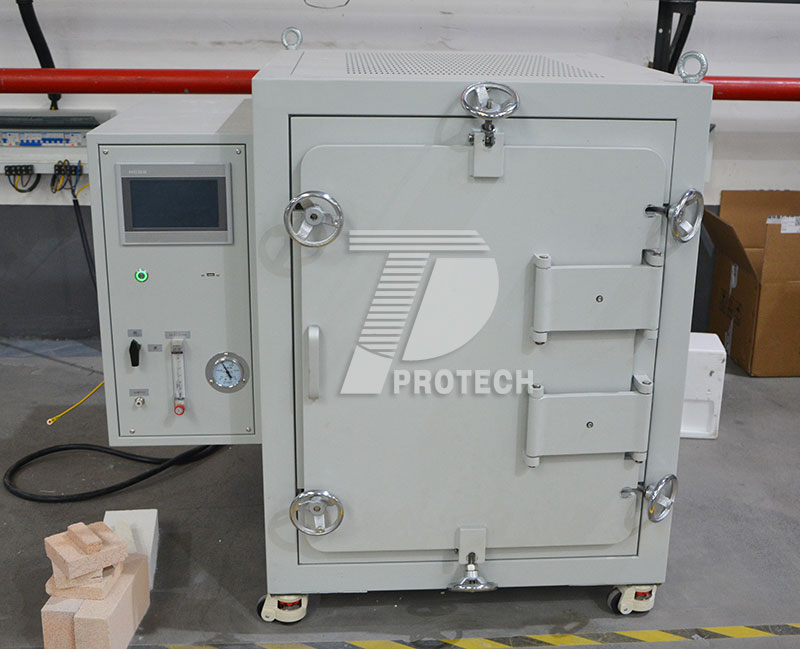

Actual photo of a 1200 C atmosphere furnace
1. The furnace is made of high-quality alumina polycrystalline fiber inorganic material, which has good thermal insulation performance, durability, high tensile strength, no debris, high purity, and the energy-saving effect is significantly better than other domestic fiber materials;
2. The entire furnace body adopts a double-layer inner tank structure with an air gap in the middle. Even if the temperature of the furnace reaches the highest level, the surface of the furnace body can still be touched safely without feeling hot.
3. The furnace is made of energy-saving materials, and the energy consumption of the whole machine is only 1/3 of the same traditional electric furnace, which is energy-saving and environmentally friendly.
4. The heating element uses molybdenum-containing resistance wire, which has a fast heating rate.
5. The temperature control system adopts touch screen operation, artificial intelligence adjustment, PID adjustment, and self-tuning functions. It can program 30-segment temperature rising and cooling programs, and the temperature rising and cooling data can be stored and output in real time.
6. It has over-temperature alarm and power-off protection function, and is equipped with a safety valve. When the air pressure in the furnace is too high, it will automatically deflate, making the operation safe and reliable.
7. Our company has the ability to develop, design, produce and process by itself. Our machines provide lifetime parts replacement and upgrade services.
| Product name | High temperature box atmosphere furnace |
| Model | PT-A1200-45LC |
| Chamber size | 300x300x500mm (length*width*height) |
| Working temperature | 1000℃ |
| Max.temperature | 1200℃ |
| Chamber material | Alumina polycrystalline fiber |
| Temperature control accuracy | ±1℃ |
| Temperature control protection | With over-temperature and burnout protection function |
| Heating rate | 0-20℃/min，Recommended 10℃/min |
| Heating element | Molybdenum resistance wire |
| heating method | Heating on three sides: left, right and bottom |
| Operating Voltage | AC 380V |
| Design power | 12KW |
| Temperature test element | 3 K-type thermocouples |
| Door opening method | Side opening |
| Sevice moves type | There are 4 mobile casters installed at the bottom of the machine with braking function. |
| Furnace structure | split type |
| sealing system | The furnace door and top are sealed with high-temperature silicone rubber, and the double-layer shell is air-cooled. The furnace has an air inlet and an air outlet, and can pass argon, nitrogen and other gases. |
| air intake control | A float flowmeter is installed to control the inlet air flow. The flow range is based on the user's requirements. |
| safety devices | The furnace is equipped with a safety valve. When the pressure in the furnace is too high, the safety valve starts to automatically release air and pressure, which is safe and reliable. |
| Provide related accessories | Crucible tongs, high temperature gloves, setting plate, thermocouple, warranty card, instructions, etc. |
| After-sales service | Warranty for 12 months, heating elements and other wearing parts are not covered by the warranty |

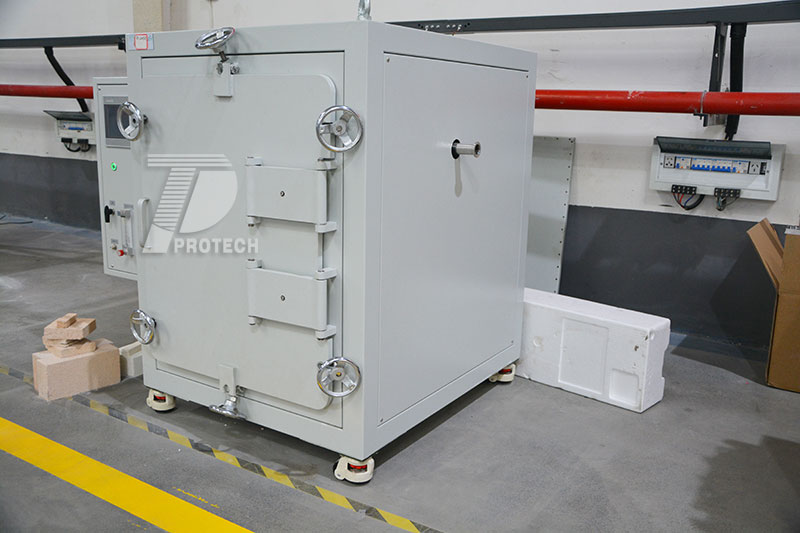

Actual photo of a 1200 degree atmosphere furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
