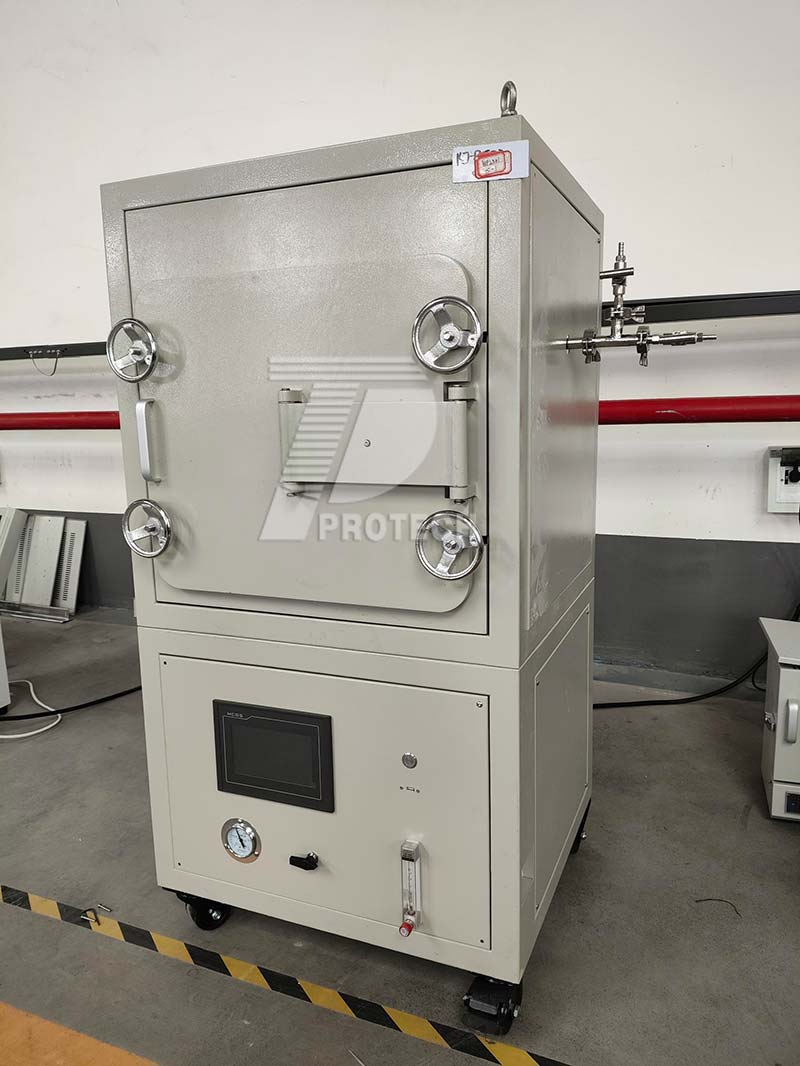

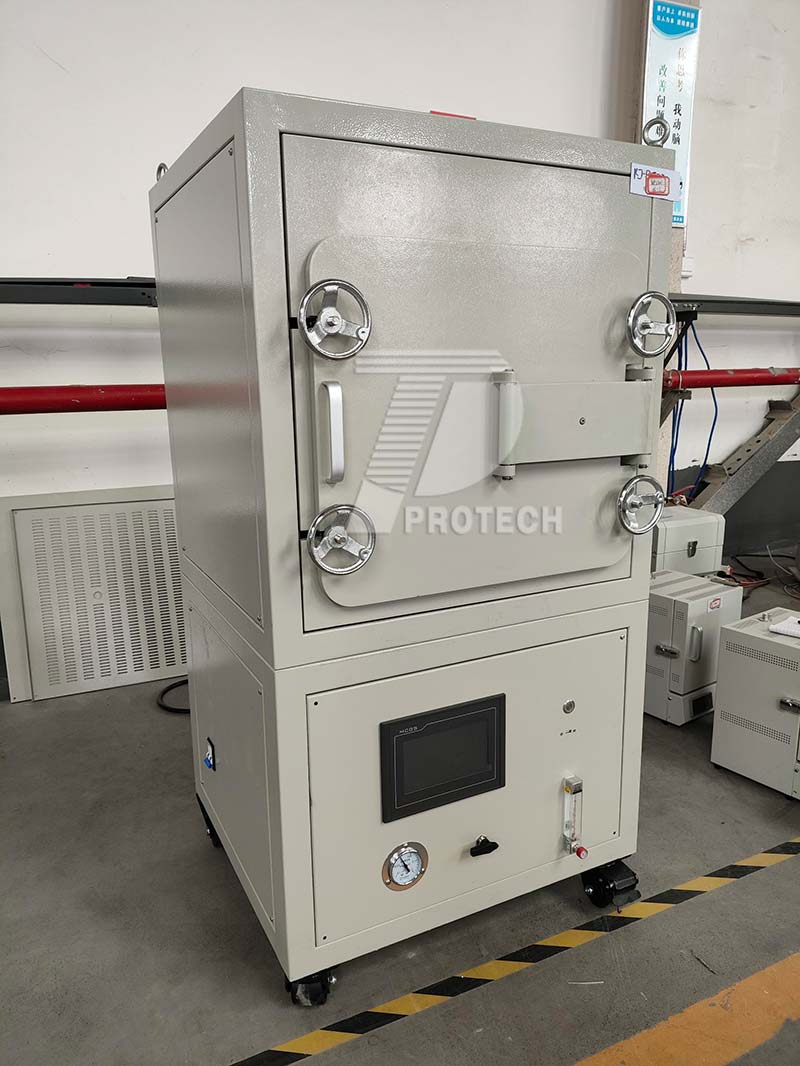

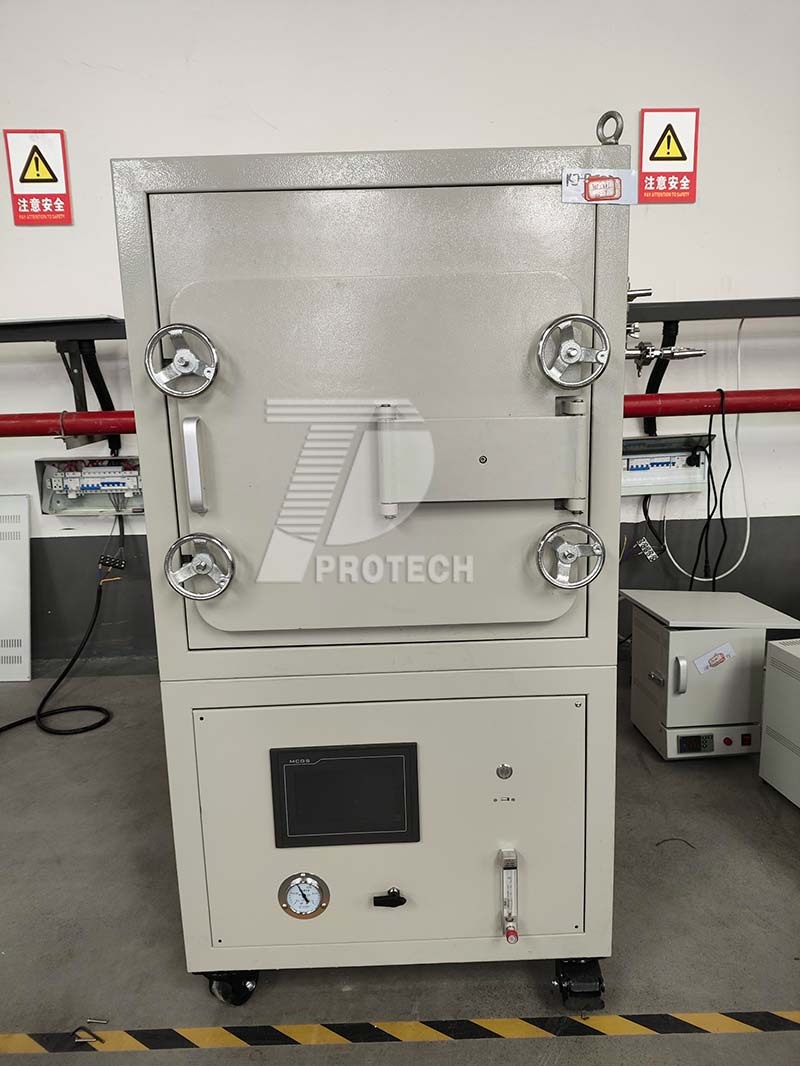

Large LCD Screen Atmosphere Furnace-The best lab furnace manufacturer

Model：PT-A1700-8L

Description：PT-A1700-8L high temperature atmosphere furnace is mainly used in college laboratories, industrial and mining enterprise laboratories, for chemical analysis, physical measurement and sintering and dissolution of metals, ceramics, etc., used in electronic components, powder metallurgy, magnetic materials, quartz materials and other products It can also be used for heat treatment of other materials etc. The furnace body adopts a double-layer furnace shell structure, high-performance heat insulation material, and is equipped with a cooling fan, so that the surface temperature of the furnace body is low, and the energy saving is 60% compared with ordinary furnaces. The furnace door and furnace top are sealed with high-temperature silicone rubber, which can be pre-evacuated and can be fed with various inert gases.

Inquire Now

Introduction:

Product Introduction:
PT-A1700-8L high temperature atmosphere furnace is mainly used in college laboratories, industrial and mining enterprise laboratories, for chemical analysis, physical measurement and sintering and dissolution of metals, ceramics, etc., used in electronic components, powder metallurgy, magnetic materials, quartz materials and other products It can also be used for heat treatment of other materials etc. The furnace body adopts a double-layer furnace shell structure, high-performance heat insulation material, and is equipped with a cooling fan, so that the surface temperature of the furnace body is low, and the energy saving is 60% compared with ordinary furnaces. The furnace door and furnace top are sealed with high-temperature silicone rubber, which can be pre-evacuated and can be fed with various inert gases.
It adopts double-layer shell structure and intelligent program temperature control system, phase-shift trigger and thyristor control. The furnace is made of alumina polycrystalline fiber material. The double-layer furnace shell is equipped with an air-cooling system. It has the advantages of low surface temperature, fast temperature rises and fall rate, and energy saving.Belongs to a type of atmosphere furnace.

Main technical requirements:

Max Temperature: 1700℃
Working Temperature: 1600℃
Temperature Controller: 30-segment programmable PID intelligent control, phase-shift trigger.
Chamber size: 200*200*200mm
Furnace structure: double-layer shell with built-in air-cooling structure
Temperature control protection: With over-temperature, thermocouple broken protection function
Vacuum atmosphere: Nitrogen, Argon, Oxygen and other gases can be passed through, and it can be evacuated.
Ultimate vacuum degree: -0.1MPa
Float flow meter: Argon Gas (5L/min）

Main functions and features:
1. The furnace adopts high-quality alumina polycrystalline fiber inorganic material formed by vacuum adsorption with Japanese technology, which has good thermal insulation performance, durability, high tensile strength, no foreign balls, high purity, and energy saving effect is obviously better than other fiber materials;
2. The entire furnace body adopts a double-layer liner structure with an air gap in the middle. Even if the furnace temperature reaches the highest, the surface of the furnace body can still be safely touched without a burning feeling.
3. The furnace is made of energy-saving materials, and the energy consumption of the whole machine is only 1/3 of the same traditional electric furnace, which is energy-saving and environmentally friendly.
4. The furnace body is equipped with: output voltage and output current monitoring table, the heating state of the furnace is clear at a glance.
5. Over-temperature alarm power-off function and leakage protection measures, safe and reliable operation.

Usage:
This series of products are specially designed for laboratories of colleges and universities, scientific research institutes and industrial and mining enterprises to develop ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new materials, special materials, powder metallurgy, magnetic materials, building materials, Special equipment for heat treatment developed for debinding, sintering, melting, analysis and production of metal, non-metal and other chemical materials in atmosphere or vacuum state.

Detail Specification:
Door Structure	Side Door
Furnace structure	Double layer steel casting with dual cooling fan
Display	Touch Screen
Max. Temperature	1700℃
Continuous working Temperature	≤1600℃
Heating Rate	10℃/min
Accuracy	±1℃
Inside Chamber Size	200x200x200mm (width x height x depth)
Heating Element	Mosi2
Thermocouple	B Type
Temperature control	● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● Over temperature protection and alarm allows for operation without attendant.
Sealing system	Furnace door use high temperature silicone rubber seal and seal valves
Gas system	Gas inlet and outlet with shut off valve, can pass nitrogen and other gases to the furnace chamber; Standard equipped with 1 Nitrogen float flow meters（5L/min) which can control the flow rate of gases.
Working Voltage	AC 220V, 50HZ, Single phase
Output Power	5KW
Warranty	One-year limited warranty, provide life-time maintenance service. (Consumable parts such as heating elements and thermocouple are not covered by the warranty)
Certificate	CE
After-sales service:
1. Our company provides a one-year warranty service for the supplied equipment (except for wearing parts and man-made damage). During the warranty period, any equipment damage or failure caused by the equipment quality will be repaired free of charge. After the warranty period expires, life-long, high-quality maintenance services are still provided. 2. In case of equipment failure during the use of the equipment, the user can notify the maintenance needs by telephone, writing, fax, e-mail or other means, and our company will make a solution as soon as possible to ensure the normal operation of the equipment. 3. Our company provides free equipment operation training and simple troubleshooting and maintenance training. To ensure that the user can skillfully carry out standardized and safe operation of the product, can deal with general faults and routine maintenance and maintenance of the equipment, and ensure the normal use of the equipment. 4. Our company's technicians can provide door-to-door service (product installation and debugging, whole machine maintenance, technical explanation and operation guidance, etc.). Our company's technical consultants can answer customers' questions about technology and standard specifications and provide technical guidance at any time. 5. The company can provide transportation services, and the packaging methods are in accordance with standard safety packaging. Complete random technical information (user manual, warranty manual, related information and accessories, random tools, etc.).

Large LCD Screen Atmosphere Furnace

Transaction process

After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
