Model：PT-VM300-27CWG
Description：The equipment is suitable for applications such as baking, drying, low vacuum sealing testing, anaerobic treatment, stress relief, solidification, and stage anaerobic testing.
The PT-VM300-27CWG vacuum drying oven adopts an external bundled multi group heater, and the equipment is suitable for applications such as baking, drying, low vacuum sealing testing, anaerobic treatment, stress relief, solidification, and stage anaerobic testing. It belongs to a type of vacuum heat treatment furnace.

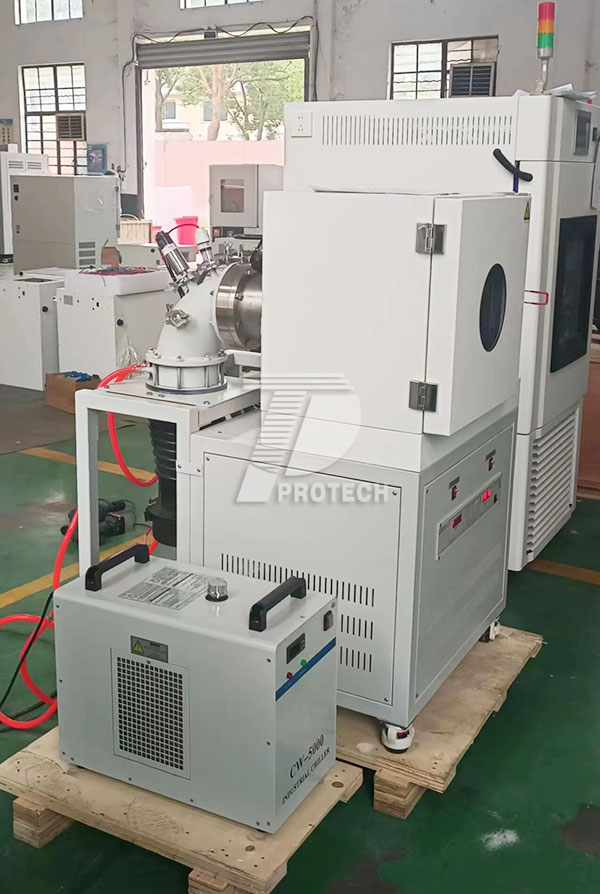

Actual photo of PT-VM300-27CWG vacuum drying oven
| Furnace Part | |
| Display | LCD Touch Screen |
| Temperature control range | 50～300℃ |
| Chamber Size |
200*200*300mm 12L Or 300*300*300mm 27L |
| Temperature resolution | ±0.1℃ |
| Temperature fluctuation | ±0.3℃ |
| Sensor accuracy | ±0.1°C |
| Ultimate Vacuum Degree | 6.7*10^(-3)Pa |
| Temperature controller | Main temperature controller High-precision microcomputer PLC program temperature controller, equipped with 30 temperature control steps, can set 100 cycles, adopts multi-group segmental PID and empirical value fuzzy control technology, precise temperature control, arbitrary setting of working temperature, With 10 temperature linear error calibration, data record storage, USB data export function, fault alarm query function |
| Heating rate | 0.5~1.5℃/min (no load) |
| Temperature detection | The detection sensor adopts PT100 thermocouple |
| Shell material | High-quality cold-rolled steel plate/thickness 1.2mm steel plate welded with 100*100*80mm channel steel, surface electrostatic spray treatment. |
| Chamber Material | High-quality SUS304/thickness 6.0mm brushed stainless steel plate, using laser cutting and blanking, low-temperature laser welding for splicing parts, passivation treatment of welding parts, surface grinding and polishing. |
| Box Door Structure |
1. Channel steel and stainless steel plate are connected (this case has no observation window function, and the shape of the picture is only for reference) 2. Manual tight locking 3. High-power stainless steel vacuum hinge |
| Door Seal Material | The tightness of the box door can be adjusted, and the T-shaped silicone rubber door seal ring imported from Japan is integrally formed to ensure high vacuum in the box |
| Insulation Material | High temperature resistant ceramic glass fiber |
| Three-color light alarm definition |
1. The green light is on for normal operation 2. The yellow light is on the standby state 3. The red light is on for abnormal alarm |
| Heating method |
External bundled heater multiple groups |
| Shelf | 2 stainless steel strip partitions at the bottom |
| Bottom structure | There are 4 mobile casters installed at the bottom of the machine, with brake function and level adjustment |
| Vacuum System Part | |
| Max. Vacuum | 10-3Pa (in empty and cold state) |
|
Vacuum System-Optional |
1. Mechanical rotary vane vacuum pump + diffusion pump with digital compact vacuum gauge
OR
2. Mechanical rotary vane vacuum pump + molecular pump with digital compact vacuum gauge |
| After sale service | 12 month quality warranty except Consumables parts like heating elements |
| Standard Accessories |
Protective Glove x 1 pair Crucible Tong x 1 pair |
| Optional Water Chiller | |

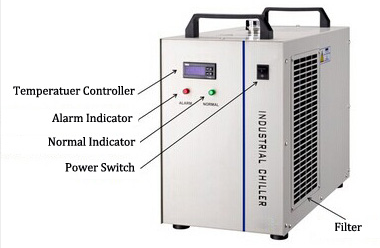

| Water Chiller |
Used to cool the vacuum pump |

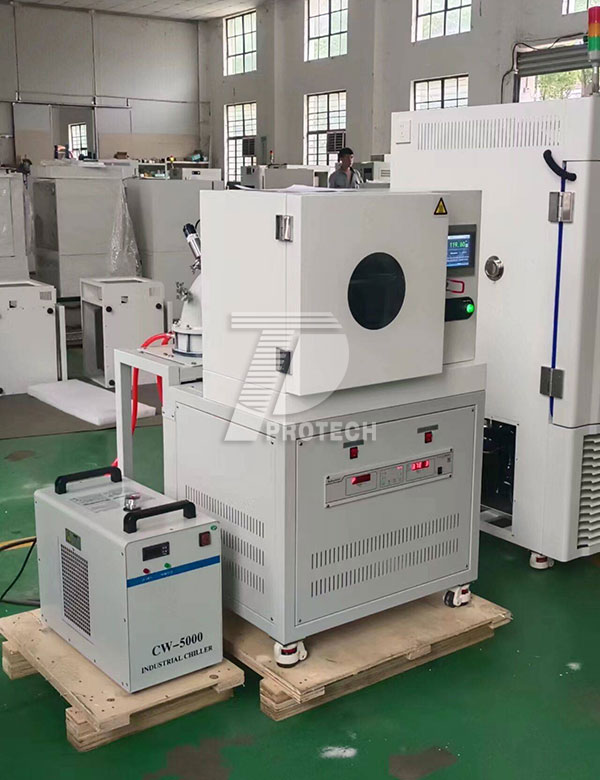

Actual photo of PT-VM300-27CWG vacuum drying oven
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
