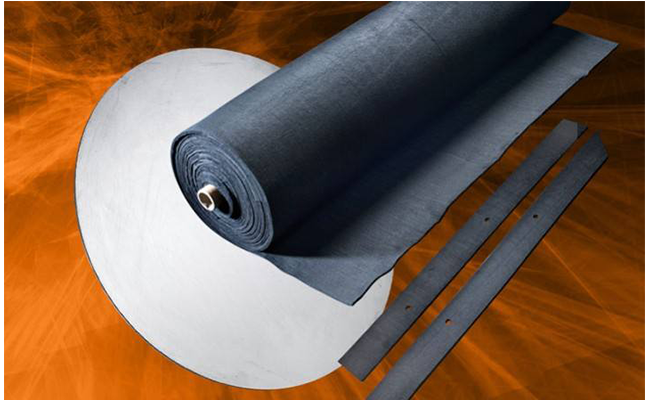

Graphite felt

Model：

Description：Graphite felt is using polyamide membrane sintering into the new diaphragm material, with high thermal conductivity and excellent product design flexibility.

Inquire Now

Introduction:

Advantage of Graphite Felt
1. High heat transfer efficiency: The thermal conductivity of synthetic graphite sheet is 800-1500w/mk (highest specification series thermal conductivity is 5 times that of copper,which is 8.3 times that of aluminum)
2. Easy processing: A flexible diaphragm, easy cutting and processing into any shape and can be repeated bending
3. Light weight density: Synthetic graphite sheet 1.6-2.1g/cm3 (About 1/3 of the aluminum and equivalent to 1/5-1/4 of the copper)
4. Low resistant: Can be used for electromagnetic shielding.
Certification of Graphite Felt
Our products have passed the ISO9000 certification, CE certification, all products are in accordance with ISO9000:2000 quality management.Our diversity of products, to meet all kinds of consumer demand.
Application of Graphite Felt
Mainly used as insulation in high-vacuum and inert atmosphere furnaces. This kind of high-vacuum is widely used for metal heat treatment, meticulous and ceramic sintering, different kinds of crystallization production, sintering silicon for semiconductors.
1. Power conversion, power supply equipment and the surrounding equipment;
2. Large communications equipment and peripheral equipment;
3. Computers, tablet computers, smart phone, smart terminal, high-power LED applications;
4. PV power generation equipment and peripherals;
5. Other special industries.

Technology of Graphite Felt

ITEM		INDEX
Trademark		Rayon-based Carbon Felt LTZ-124-5	Rayon-based Graphite Felt LTZ-124-6	PAN-based Carbon Felt LTZ-124-3	PAN-based Graphite Felt LTZ-124-1
Material		RCF	RCF	PAN-CF	PAN-CF
Bulk density g/cm 3		0.10-0.12	0.08-0.10	0.14-0.15	0.12-0.14
Carbon %		≥98.5	≥99	≥98.5	≥99
Thermal conductivity 1150 o C W/m .k		0.08-0.15	0.06-0.14	0.12-0.18	0.08-0.14
Tensile Strength (Mpa)		0.13	0.1	0.15	0.14
Crushing stress at 10% compression N/cm 2		6-10	5-8	8-12	8-10
Ash %		≤0.05	≤0.005	≤0.05	≤0.005
Processing temperature		1200 o C	2300 o C	1200 o C	2300 o C
Operating Condition	in the air	≤400 o C	≤400 o C	≤400 o C	≤400 o C
	in the vacuum	≥1500 o C	≥2300 o C	≥1500 o C	≥2300 o C
	In the inert atmosphere	≥2300 o C	≥3300 o C	≥2300 o C	≥3300 o C
Spec	length (m)	16 - 18		9 - 12
	Wide (mm)	1000-1300
	Thickness (mm)	3,5,8,10,12

Our Other High Temperature Material

No	Product name	Applications
1	Ceramic fiber blanket	Thermal insulation for spaceflight, steel plant, petrochemical plant, military equipment, high temperature pipelines, electrical components; Lining of industrial furnaces, heating equipment; also used to make high temperature gasket, module and collapse block.
2	Ceramic fiber board	Lining of cement kiln and other architectural furnaces and kilns; lining of industrial furnaces and kilns in petrochemical, metallurgy, ceramic, glass, heat treatment, nonferrous metals field; lining of high-temperature reaction and heating equipment.
3	Ceramic fiber rope	Sealing and thermal insulation of door, flue, brick expansion gap of industrial furnaces and kilns; sealing and packing of burner, heat ex-changer, high temperature pipeline of industrial furnaces and kilns.
4	Ceramic fiber paper	Thermal insulation, sealing, electric insulation, sound absorption, filter in high temperature environment.
5	Ceramic fiber cotton	Lining of industrial furnaces and kilns, boiler; thermal insulation in thermal equipment like steam engine, gas engine; flexible thermal insulation material for high temperature pipeline, thermal reactor; high temperature gasket; high temperature filter; fireproofing of industrial furnaces and kilns, electrical components; thermal insulation of incinerator, investment casting; also used to make module and collapse block, veneering modules.
6	Ceramic fiber cloth	Thermal insulation of industrial furnaces and kilns, high temperature pipeline and container, engine and instrument; fireproofing equipment and thermal cover; fire-proof suit; sound absorption; substitute of asbestos cloth.
7	Ceramic fiber module	Lining of industrial furnaces and kilns in petrochemical, metallurgy, ceramic, glass, heat treatment field.
