Model：PT-M1100-12LZ
Description：The 1100 degree box type asher with chimney is suitable for ashing and ash analysis and determination of products in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, universities, research institutes, industries, etc.
The 1100 degree box type asher with chimney is suitable for ashing and ash analysis and determination of products in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, universities, research institutes, industries, etc. Belongs to a species of Ashing furniture.

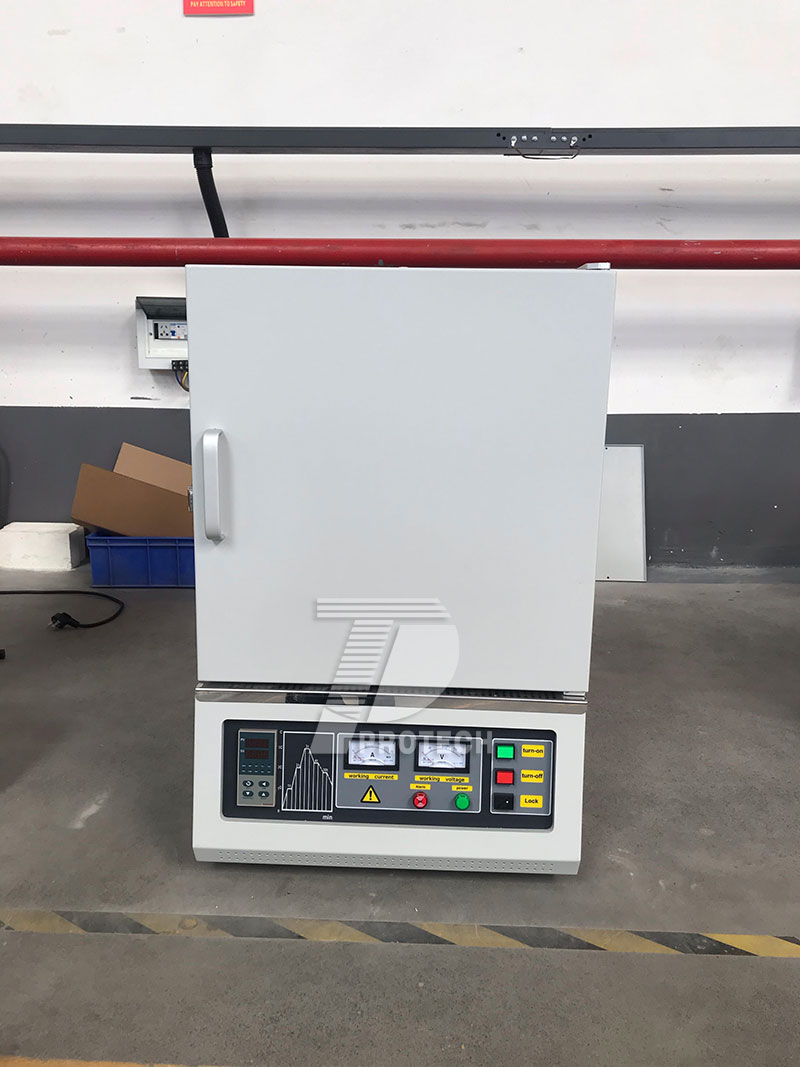

Actual photo of 1100 degree box type asher with chimney
| Technical parameter | |||||
| Model | PT-M1100-12LZ | ||||
| Chamber size | 200x200x300mm (Width x Height x Depth) | ||||
| Volume | 12L | ||||
| Max. temperature | ≦1200 ℃ | ||||
| Working temperature | ≦1100℃ | ||||
| Heating Element | Electric resistance wire with Mo | ||||

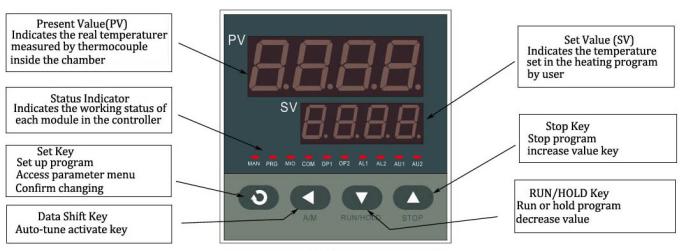

Temperature control |
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermal couple broken protection. ● Over temperature protection and alarm allows for operation without attendant. |
||||
| Heating rate | 0-10 ℃ /min | ||||
| Thermal couple | K type | ||||
| Temperature accuracy | ±1℃ | ||||
| Working voltage | 220V 50Hz(or according to your request) | ||||
| Max. Power | 4KW | ||||
| Certification | CE | ||||
| Standard Package | |||||
| Furnace body | 1 set | Operation manual | 1 book | ||
| High temperature gloves | 1 pair | Crucible clip | 1 pc | ||
| Warranty | |||||
| Warranty | One-year limited warranty with life time support. (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products) | ||||

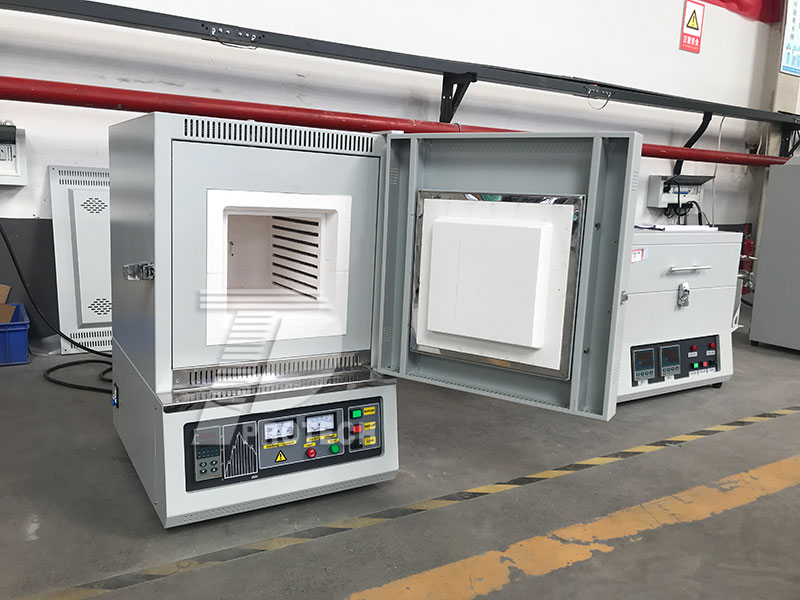

Actual photo of 1100 degree box type asher with chimney

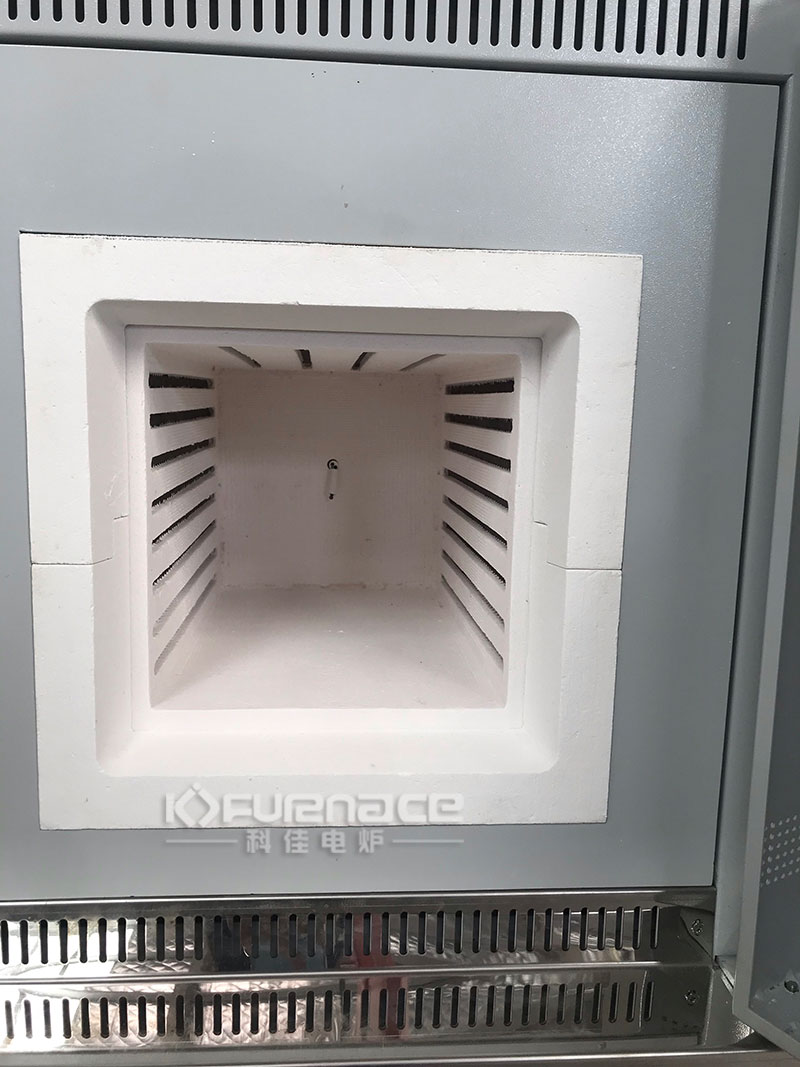

Actual photo of 1100 degree box type asher with chimney

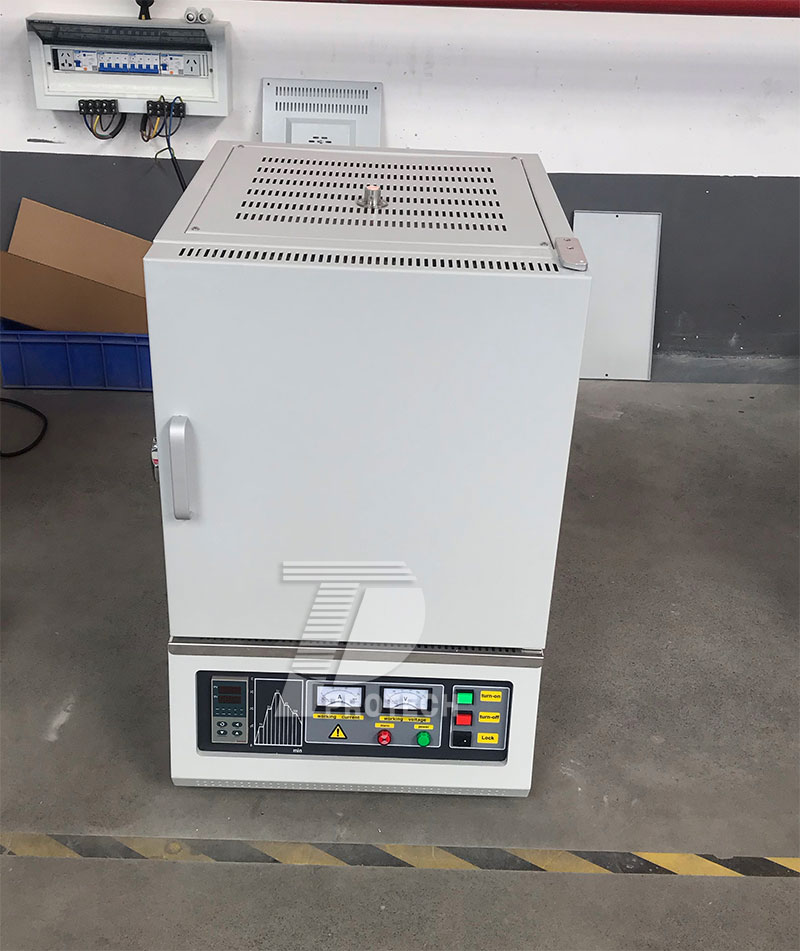

Actual photo of 1100 degree box type asher with chimney
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
