Chamber furnace

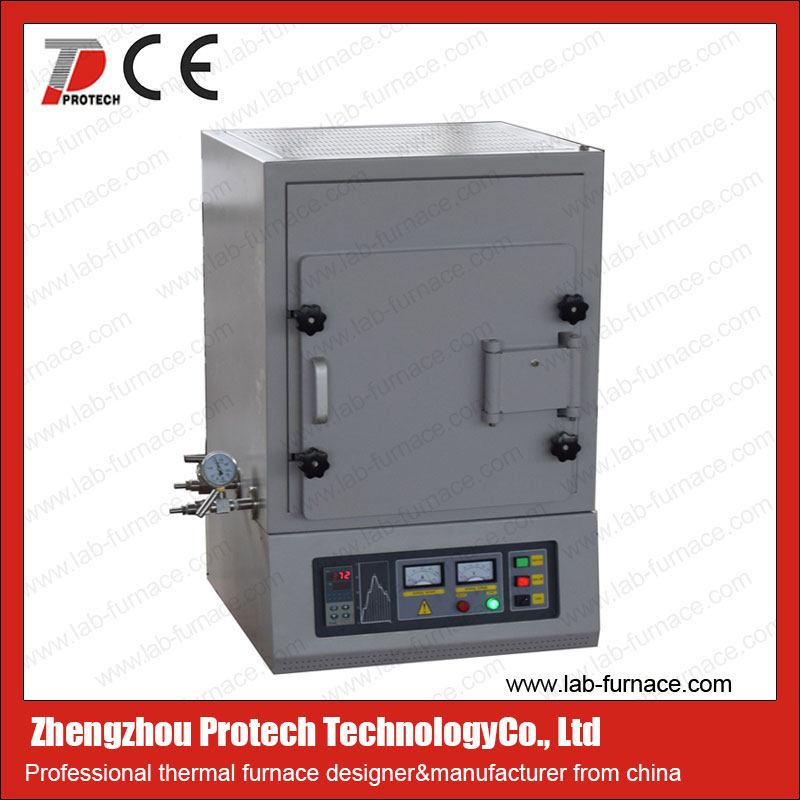

1400C Touch screen muffle furnace
Model：PT-M1400-A4IL
Description：The products are widely used in denture processing industry, scientific research institutes, as well as high temperature sintering of powder metallurgy industry, annealing, zirconia sintering, etc.
Features
1.The unique touch screen control system, and make the control more accurate graphic interface
convenient operation
2.Adopted the 1500deg C SiC
3.Furnace with high purity alumina fiber materials produced through unique technology, heat
preservation performance outstanding thus reducing power consumption by 30%
4.Can be equipped with computer software interface, through the computer PC global monitoring
and operation
Technical parameters
|
1 |
Chamber model |
Side Door |
|
2 |
Display |
Touch screen（LCD） |
|
3 |
Limiting Temperature |
1400℃ |
|
4 |
Usable Range |
≤1350℃ |
|
5 |
Heating Rate |
Suggestion 0~20℃/min |
|
6 |
Temperature Zone |
Single |
|
7 |
Accuracy |
±1℃ |
|
8 |
Inside Chamber Size |
220×220×260(mm） |
|
9 |
Heating Element |
SiC |
|
10 |
Thermocouple |
S Type |
|
11 |
Max. Power |
4.5KW |
|
12 |
Working Voltage |
AC 208V-240V single phase, 50/60 Hz |
|
13 |
Temperature Control |
PID automatic control via SCR power control |
|
14 |
Heating curves |
30 steps programmable |
|
15 |
Chamber material |
Alumina Fiber |
|
16 |
Outside Size |
560×650×820（mm） |
|
17 |
Warranty |
One year limited warranty (Consumable parts
such as heating elements are not covered by the warranty) |
