Model：PT-MZ1600-36LZ
Description：The PT-MZ1600-36LZ bell jar box furnace can be widely used in heat treatment work such as high-temperature experiments, material sintering, composition analysis, and quality inspection in universities, scientific research institutions, and industrial and mining enterprises.
The PT-MZ1600-36LZ bell jar box furnace adopts an integrated design of furnace body and intelligent control, making the entire furnace body beautiful and generous. PID programmable intelligent temperature control, phase shift triggering, furnace made of alumina polycrystalline fiber material, high-quality silicon molybdenum rod heating, maximum temperature 1700 ℃, temperature field balance; The double layer furnace shell is equipped with an air cooling circulation system, which makes the temperature of the furnace shell lower than 55 ℃, and the bottom of the furnace door rises and falls, saving energy and safety. The back of the lifting platform is equipped with reflective glass, which can clearly observe the results of the heat treatment on the back of the material. It belongs to a type of elevator furnace.

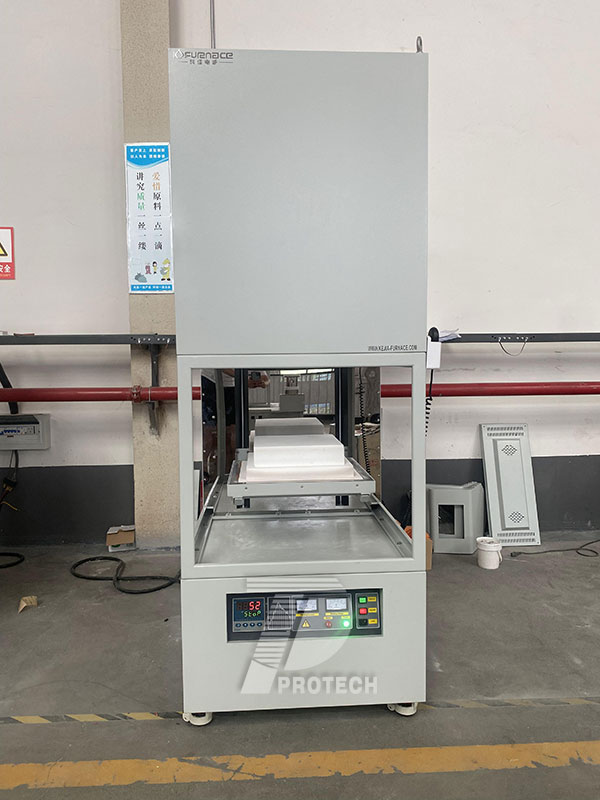

Actual photo of Protech 1600 ℃ bell muffle furnace
The PT-MZ1600-36LZ bell jar box furnace can be widely used in heat treatment work such as high-temperature experiments, material sintering, composition analysis, and quality inspection in universities, scientific research institutions, and industrial and mining enterprises.
| Model | PT-BLM1600-36LZ |
| Furnace structure | Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C. |
| Furnace liner |
Two layers of ceramic fiber insulation materials First layer: 1800deg.C ceramic fiber board Second layer: 1600deg.C ceramic fiber board |
| Chamber dimension | 300 X 300 X 400mm |
| Working temp. | ≤1600℃ |
| Heating rate | 0-25℃/min (Suggestion: 0-10℃/min) |
| Temp. accuracy | +/-1℃ |
| Thermocouple | B-type thermocouple |
| Temp. control |
PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant |
| Heating element |
MoSi2 heating rods Size: 6/12x350(hot zone)x220(cold zone )x 50 Two on each wall. |
| Working voltage | 380V, 60Hz, Two phase |
| Power | 12 kW |
| Lifting tray |
speed of door up/down lift 80-100mm/second extension cable and up/down button handle |
| Warranty Period | 1 year (Consumable uncovered.) |

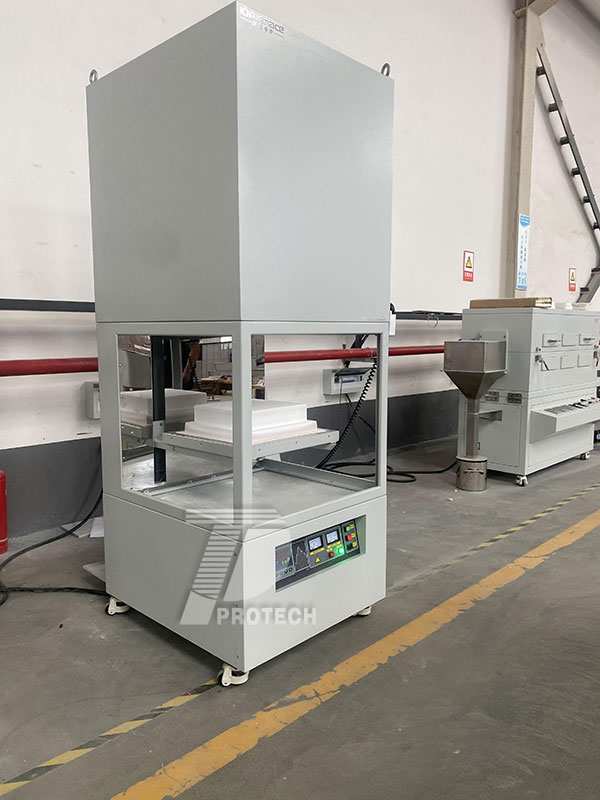

Actual photo of Protech 1600 ℃ bell muffle furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
