Custom Bottom Hole Box Furnace

Model：PT-MZ1300-100WB-DZ

Description：This Custom Bottom Hole Box Furnace can be installed on the bracket to form an automatic production line together with other equipment, and can also be used as a bell furnace alone. It is suitable for industrial and mining enterprises to heat, sinter.

Inquire Now

Introduction:

Product description:

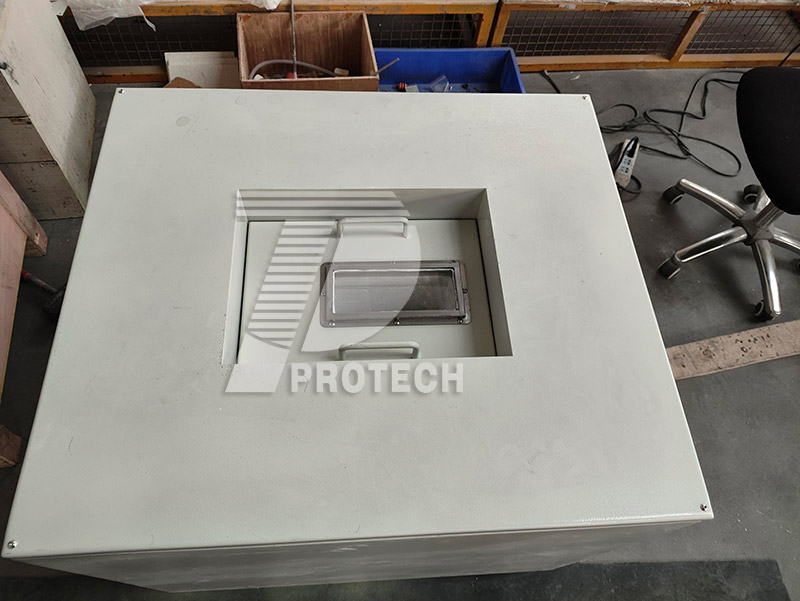

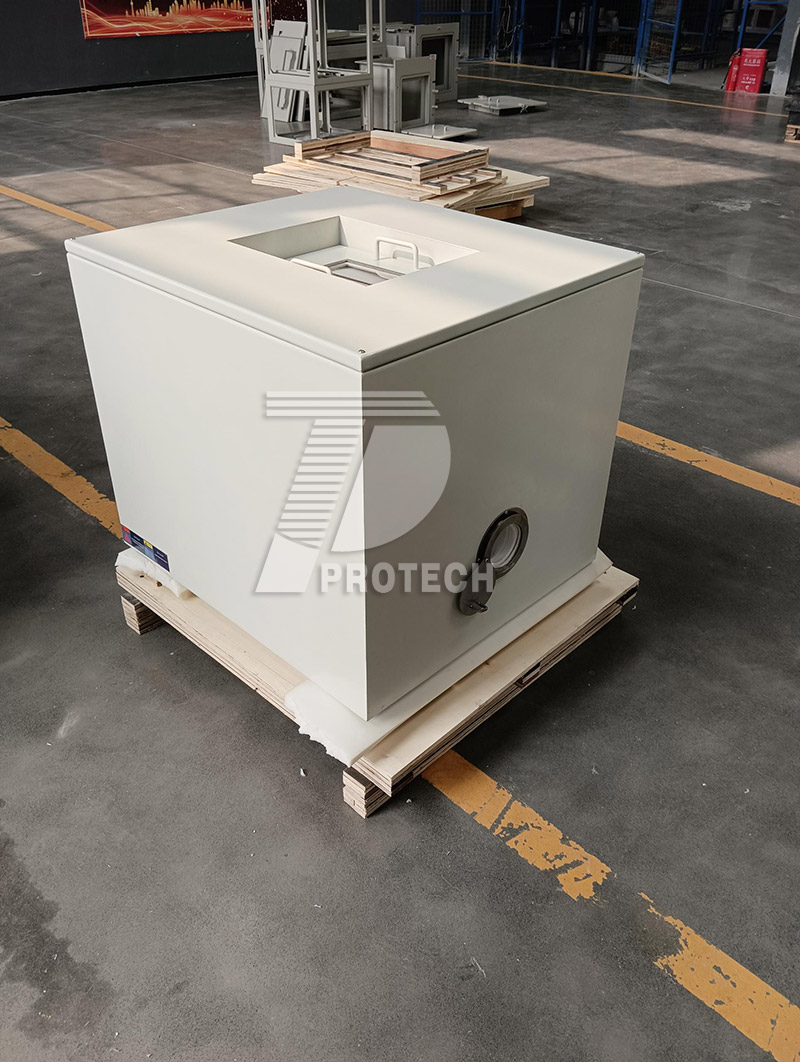

A type of box furnace.The equipment is a split design, the heating furnace is separated from the electric control cabinet, it can be placed side by side to save space, and it can also be placed separately for a variety of scenarios. Mounting holes are reserved on the back of the furnace body, and the furnace body can be fixed on the bracket to form an automatic production line together with other equipment. The furnace adopts a cladding design, with less heat loss and better uniformity of the temperature field. The bottom opening of the furnace body allows materials to enter and exit through the opening at the bottom; the opening at the bottom is equipped with a heat-resistant cover for empty furnace testing or sealing the bottom hole during intermittent use. There is a visual observation window on the side of the furnace body, and a stainless steel cover is designed. There is a rectangular monitoring window on the top of the furnace body, which can be used for temperature or shape monitoring with laser or infrared thermometers. There are 2 thermocouples on the back of the furnace body, one of which is used to monitor the temperature in the furnace, and the other can be extended to the center of the furnace to monitor the temperature near the workpiece.

Applications:
The equipment can be installed on the bracket to form an automatic production line together with other equipment, and can also be used as a bell furnace alone. It is suitable for industrial and mining enterprises to heat, sinter, heat treat and other automatic processes for metals, ceramics, and polymer materials.

Features:
Split design, multiple usage scenarios.
Suspension design, can be used in automated production lines.
Bottom opening, bell design.
Multiple windows can monitor the status of the workpiece in real time from multiple directions.

Product name	Custom Bottom Hole Box Furnace
Model	PT-MZ1300-100WB-DZ
Heating zone size	Length 500×width 600×height 400mm, volume 120L
shell structure	The shell is made of high-quality carbon steel, and the surface is treated with electrostatic adsorption spray technology
Chamber size	High-quality alumina polycrystalline refractory fiber material
extreme temperature	1300℃
working temperature	≤1200℃
heating element	High quality silicon carbide rod
Temperature control method	Intelligent PID multi-segment programmable control
thermocouple	2 S-type single platinum rhodium thermocouples
security alarm	With over-temperature and burnout alarm function
Bottom opening	The bottom of the furnace is opened, and the material to be heated can be lifted into the furnace for heating through the opening at the bottom. The flexible material is pasted around the round hole, which can not only prevent heat loss in the furnace, but also protect the hole around and prevent scratches; the round hole Expansion joints are designed radially around to prevent deformation and warping of the furnace shell due to high temperature; a sealing device for sealing the round hole is specially made, including refractory materials and metal fixing plates, for easy disassembly and assembly design

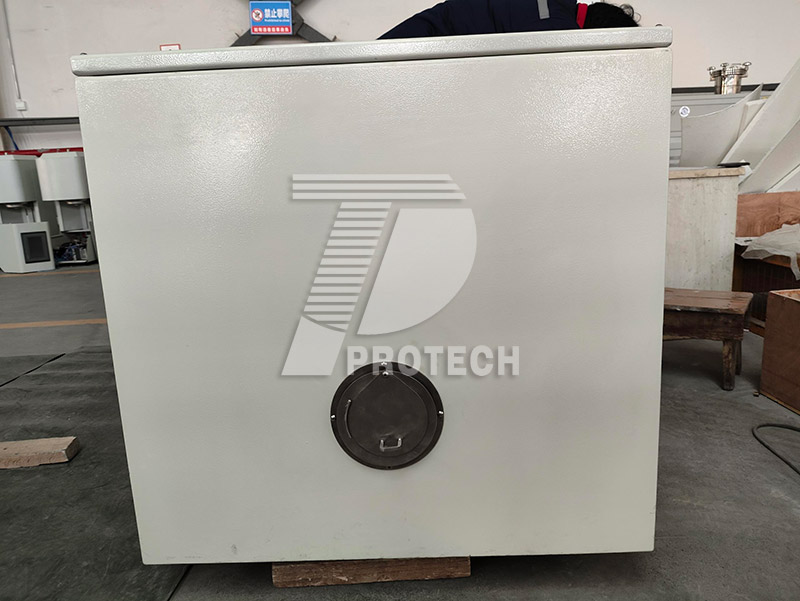

Observation window	The observation window is installed on the right side of the furnace body from the bottom surface, and the high temperature resistant glass window lens is used, and a protective cover is added on the outside
Photometric window	A rectangular hole is opened on the top of the furnace body, and a detachable quartz glass irradiation hole is added for laser sensor irradiation, and a high-temperature-resistant glass window lens is used; a sealing device is specially made to block the rectangular hole, which is convenient for disassembly and assembly. Interchangeable and fixable with irradiation window
power supply	3-phase 380V power about 60KW
Other sizes available
Heating zone size（mm）		Heating zone size（mm）
200×200×200mm		250×250×250mm
300×300×300mm		400×400×400mm
500×500×500mm		600×600×600mm
More sizes can be customized
