1600C open door high-temperature atmosphere furnace

1600C open door high-temperature atmosphere furnace

Model:PT-A1500-36LS

Description:The 1600 degree open door high-temperature atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials, and powder materials under vacuum or atmosphere conditions. It is also used for pre firing, sintering, brazing and other processes of electronic ceramic products in metallurgy, machinery, light industry, commodity inspection, higher education institutions, scientific research departments, and industrial and mining enterprises.

Inquire Now

Introduction:

Product Introduction:

The 1600 degree open door high-temperature atmosphere furnace is an internal heating single chamber structure with high-quality silicon molybdenum rods as heating elements. The use of ceramic fiber insulation material has good insulation and energy-saving effects. Belongs to a type of atmosphere furnace.

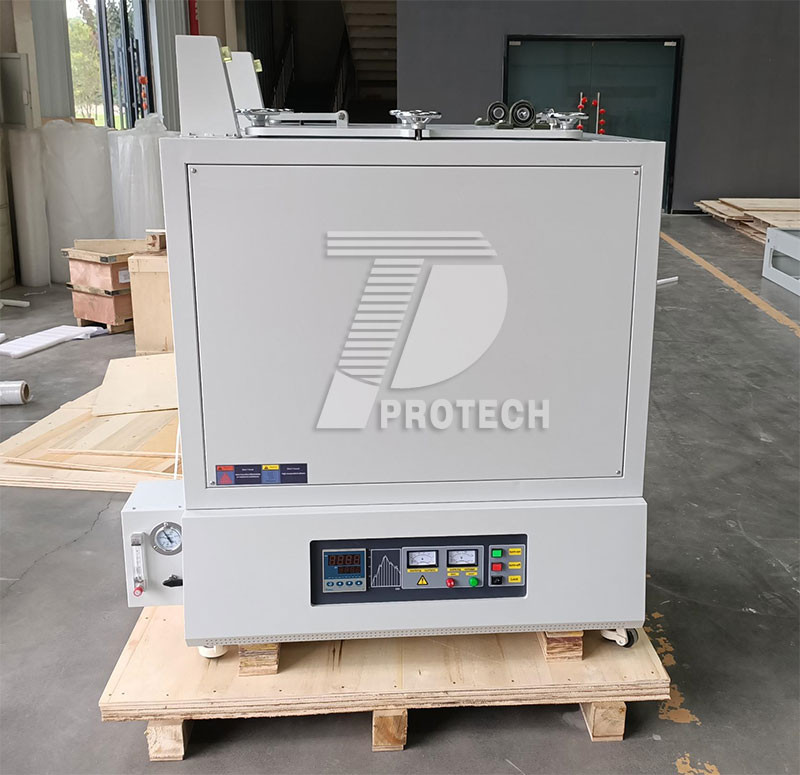

Actual photo of 1600 degree upward opening atmosphere furnace
Actual photo of 1600 degree upward opening atmosphere furnace


Application:

The 1600 degree open door high-temperature atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials, and powder materials under vacuum or atmosphere conditions. It is also used for pre firing, sintering, brazing and other processes of electronic ceramic products in metallurgy, machinery, light industry, commodity inspection, higher education institutions, scientific research departments, and industrial and mining enterprises.


Technical parameters:

Model PT-A1500-36LS
Furnace shell Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
Furnace liner Two layers of ceramic fiber insulation materials
First layer: 1800deg.C ceramic fiber board
Second layer: 1600deg.C ceramic fiber board
Door Top
Display LED
Max. Temp. 1600°C
Working Temperature ≤1500°C
Heating Rate Suggestion 0~10°C/min
Temp. Control Accuracy ±1°C
Temp. Uniformity ±5°C
Inside Chamber Size 300x300x400mm
Temp. control PID automatic control via SCR (Silicon controlled rectifier)
Power control with phase angle fired, current limiting resistor
30 programmable segments for precise control
Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.
Heating Element MOSI2
Thermocouple B Type
Max. Power 12 KW
Working Voltage 380V,3 PHASE, 50Hz
3 Live wires and 1 neutral wire
Chamber material Alumina Fiber
Warranty One year limited warranty (Consumable parts
such as heating elements are not covered by
the warranty)

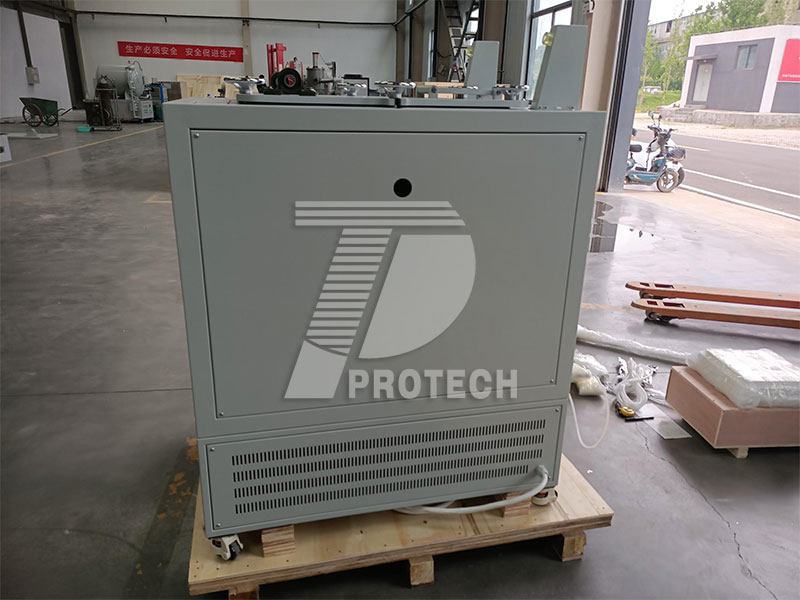

Side view of 1600 ℃ open door atmosphere furnace
Side view of 1600 ℃ open door atmosphere furnace

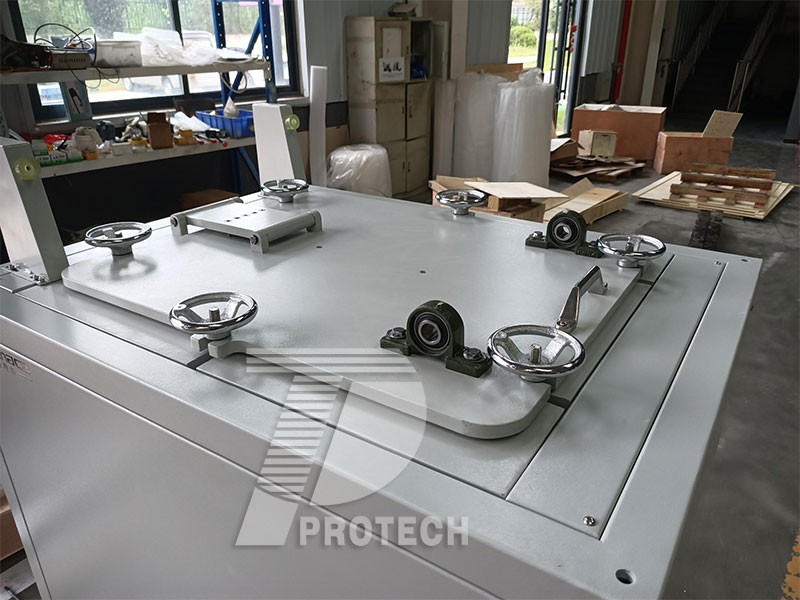

Top view of 1600 ℃ open door atmosphere furnace
Top view of 1600 ℃ open door atmosphere furnace

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
