High temperature graphite vacuum sintering furnace

High temperature graphite vacuum sintering furnace

Model:PT-VS1800-936CWD

Description:The high-temperature vacuum sintering furnace is a horizontal steel structure furnace body, and the furnace door adopts a double-door structure with two sides and side openings. It is composed of a furnace body, a vacuum system, a water cooling system.

Inquire Now

Introduction:

Introduction:

The high-temperature vacuum sintering furnace is a horizontal steel structure furnace body, and the furnace door adopts a double-door structure with two sides and side openings. It is composed of a furnace body, a vacuum system, a water cooling system, an electrical part, and a feeding cart.This high-temperature vacuum sintering furnace is mainly used for heating and sintering metal refractory compound powder metallurgy materials, carbon and graphite products, ceramic materials, etc. in a vacuum state, and is widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics and other fields .

Features:

  1. Integrated design, compact structure, beautiful appearance.
  2. It adopts touch screen + PLC control mode, with high degree of automation, intuitive operation and powerful functions.
  3. Multiple sintering processes can be stored, and can be called directly after editing once.
  4. The sintering data can be recorded in real time, can be queried, and can be exported in the form of Excel.
  5. Multi-temperature zone temperature control, fast heating rate, good furnace temperature consistency.
  6. The sintering temperature is high, and the high temperature resistant and non-deformable graphite rod is used to generate heat. The long-term working temperature can reach 1800°C.
  7. Equipped with a vacuum unit, it can realize heat treatment of materials under high temperature and high vacuum.

Technical Parameter:


Product name High temperature graphite vacuum sintering furnace

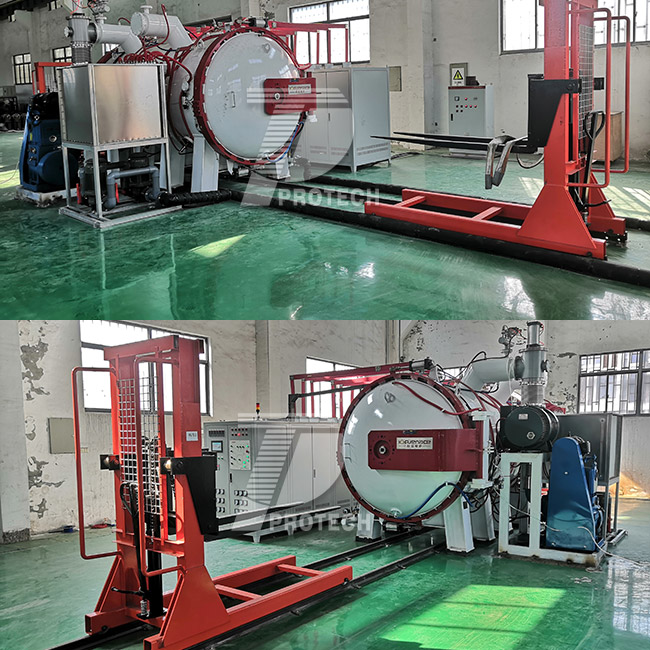

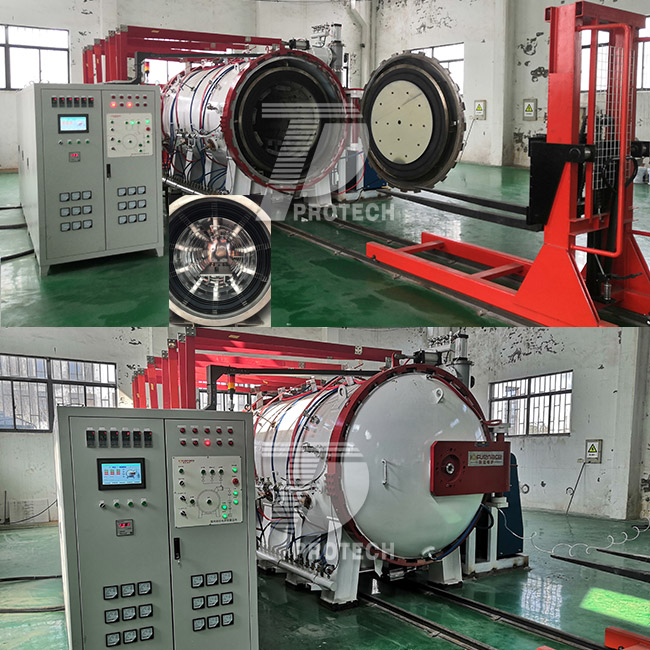

product display High temperature graphite vacuum sintering furnace High temperature graphite vacuum sintering furnace
Model PT-VS1800-936CWD
Material area size 600×600×2600mm
Heating element graphite rod
Working temperature 1800℃
Number of heating zones Tungsten sheath thermocouple
ultimate vacuum 0.5pa (empty furnace, cold state, purified)
Vacuum unit Roots pump, sliding valve pump unit (including pneumatic baffle valve, vacuum pipeline and vacuum measuring instrument, etc.)
voltage 3 phase 380V
Total power of the whole machine About 480KW
Temperature control method Touch screen + PLC + transformer Multi-stage programmable temperature control
Furnace door locking method Pneumatic locking ring locking
inflation pressure 0.02mpa
other sizes available
work area size(mm) volume (L) work area size(mm) volume (L)
200*200*300 12 400*400*600 96
200*200*400 16 500*500*700 175
350*350*350 43 600*600*900 324
More sizes can be customized

High temperature graphite vacuum sintering furnace

High temperature graphite vacuum sintering furnace

High temperature graphite vacuum sintering furnace
