Model：PT-V250*400-2000
Description：Vertical graphite vacuum furnace is mainly used in high temperature brazing, sintering, tempering, annealing and other heat treatment process.
PT-V250*400-2000 vacuum furnace is a complete set of equipment for high temperature heat treatment under vacuum (or other atmosphere) conditions.It mainly adopts high temperature resistant alloy and graphite felt as furnace material, graphite plate as heating element, double-layer water-cooled vacuum chamber, which can be configured with circulating water refrigeration system to cool the furnace body.It belongs to a type of vacuum heat treatment furnace.
Actual photo of vertical graphite vacuum furnace
2000 ℃ vertical graphite vacuum furnace is mainly used in high temperature brazing, sintering, tempering, annealing and other heat treatment process.
| Model | PT-V250*400-2000 | |
| Working mode | Batch type, vertical design | |
| Operation | Manual | |
| Heating system | Display | Touch screen |
| Chamber | Vertical design | |
| Chamber material | Graphite felt | |
| Max Working Temp. | 2000℃ | |
| Heating Rate | 0~15℃/min | |
| Chamber Size | ID250*H400 | |
| Heating Element | Graphite plate | |
| Temperature controller | Eurotherm | |
| Thermocouple | Tungsten-Rhenium thermocouple + optical thermometer | |
| Temperature Control Accuracy | ±1℃(high temperature holding state) | |
| Temperature Control | PID automatic control via SCR power control | |
| Heating Curves | 16curves, 30 steps programmable | |

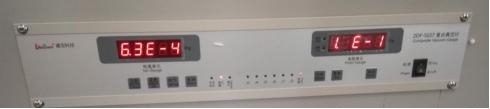

| Vacuum Gauge |
Digital composite vacuum gage |
|
| Design Heating Power | 100kW( for reference only) | |
| Chamber max working pressure |
Micro-positive Pressure 0.02MPa |
|
|
Vacuum Pump System |
Rotary vane pump roots pump+diffusion pump |
Oil type Ultimate vacuum 6.5*10-3Pa for chamber under cold state. |
| Cooling machine | Air cooled type | 15PH |
Actual photo of vertical graphite vacuum furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
