vacuum atmosphere furnace

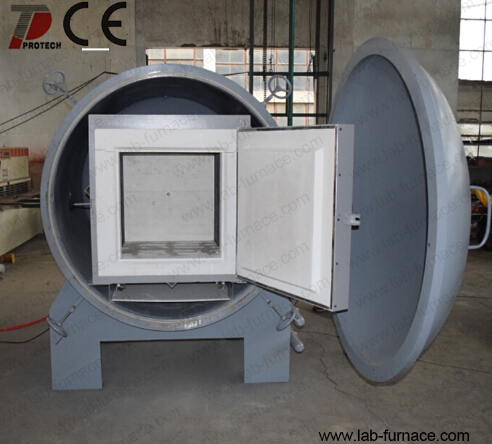

vacuum atmosphere furnace

Model:PT-1200V

Description:Vacuum atmosphere furnace is mainly used in (steels, aluminum, titanium).

Inquire Now

Introduction:
Vacuum atmosphere furnace mainly find application in the following industries:
(1)aero-engine manufacturing
(2)industrial gas turbine manufacturing
(3)heat exchanger manufacturing
(4)commercial heat treatment
(5)manufacturing of sintered components
(6)research centers



Features of Vacuum atmosphere furnace:
1.Double layer steel casting to keep case temperature lower;
2.High purity fiber alumina board chamber for the best energy saving;
3.The temperature is controlled by precision SCR(Silicon Controlled Rectifier)
  with accuracy +/-1 C and 30 segments programmable control;
4.The fast rate of temperature increasing and decreasing.
5.The furnace chamber is ceramic fiber brick with excellent thermal
  insulation,vacuum  reservoir with water cooling system;
6.The furnace is equipped with the function of power off automatically when door furnace opening,function of over temperature alarm,etc.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of Vacuum atmosphere furnace :
Model PT-1200V
Max. temperature 1200℃
Working temperature 1100℃
Temperature accuracy +/-1℃
Heating rate 0-20℃/min
Chamber size 500×500×500mm
Temperature control Digital 50 segments programmable
Max. Vacuum level 7*10ˆ(-3)Pa
Heating element Aludirome
Refractory material Alumina ceramic fiber
Thermal couple K type
Rated power 8.0KW
Working voltage 110-480V; 50/60HZ
Warranty 12 month (exclusive wearing part)
Vacuum atmosphere furnace can be customized according to customers’requirements.

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
