hydrothermal synthesis reaction kettle

Model：HK-200

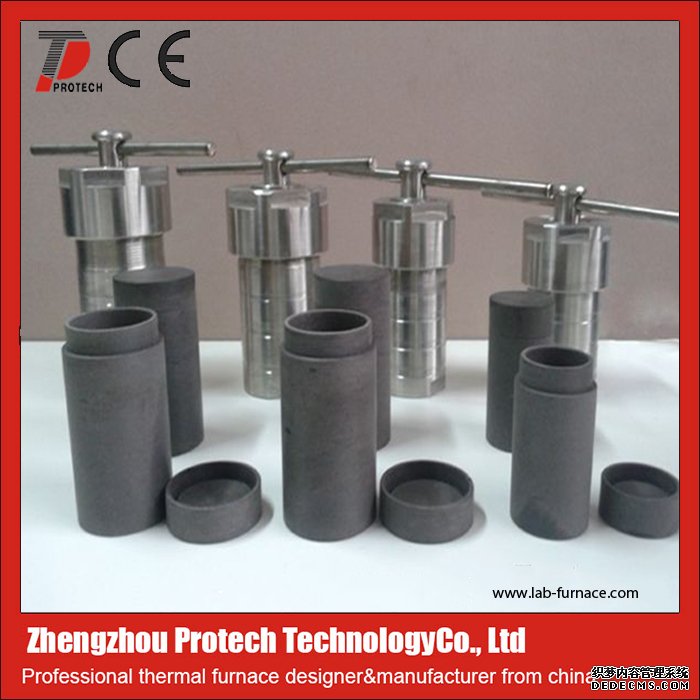

Description：The tank is made of teflon,and also be called teflon lined stainless steel autoclave,good corrosion resistance.

Inquire Now

Introduction:

The characteristics of hydrothermal synthesis reaction kettle：

no harmful material overflow, reduce pollution, the use of safe. and temperature, pressure, and can quickly dissolve condition under normal conditions difficult to dissolve the sample and the sample containing volatile elements. beautiful appearance, reasonable structure, simple operation, shorten the analysis time, the data is reliable.inside the ptfe liner, the care, acid, alkali, etc

The tank is made of teflon (PTFE, F4),also called teflon lined hydrothermal synthesis autoclave reactor its features:

1. The high temperature resistant: using temperature - 200 ~ + 200 ℃;
2. Good low temperature resistance: - 196 ℃ can keep the 5%;
3. corrosion resistance, resistant to strong acid, strong alkali, aqua regia, and a variety of organic solvents;
4. The insulation resistance, dielectric performance has nothing to do with temperature and frequency;
5. High lubrication: solid material in the bottom friction coefficient;
6. Don't adhere to: don't adhere to any material; Since the embellish strong sex: solid material in the friction coefficient of 0.04
7. The specialties: physiological inertia, can be embedded in the body; Ageing resistance can be used in the atmosphere for a long time
8. Pollution prevention: metal blank value is low, less than 10-11 g/ml, lead uranium content is less than 10 to 12 g/ml;
9. Leakage protection, falling from 1.2 meters high from the ground, the bottle is not broken, cap off, without damage leakage phenomenon.

Model of hydrothermal synthesis reaction kettle :

Model	Capacity(ml)	Axe body materrial	lining materrial	Safe temperature	Safe pressure
Hk-25	25	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-50	50	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-100	100	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-150	150	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-200	200	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-250	250	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-300	300	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-400	400	oCr18Ni9Ti	PTFE	200℃	3.0Mpa
Hk-500	500	oCr18Ni9Ti	PTFE	200℃	3.0Mpa

Transaction process

After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
