Model：PT-TD1200-S80LK1W
Description：The Protech PT-TD1200-S80LK1W multi-station vacuum tube furnace can be adjusted horizontally or vertically during use, and can rotate 360 degrees according to requirements, greatly improving its performance. Can vacuum through the atmosphere to meet diverse experimental needs.
The Protech PT-TD1200-S80LK1W multi-station vacuum tube furnace can be adjusted horizontally or vertically during use, and can rotate 360 degrees according to requirements, greatly improving its performance. Can vacuum through the atmosphere to meet diverse experimental needs.Click to view more models of Multi station tubular furnace!

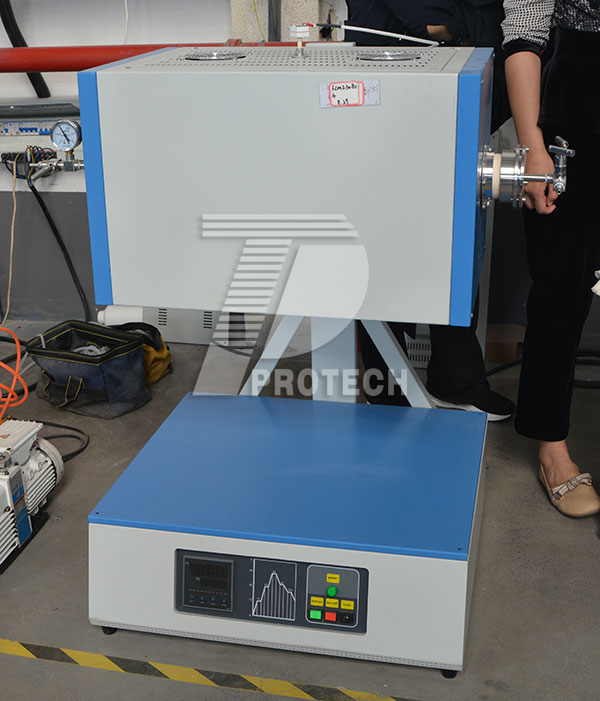

Real shot of 1200 ℃ multi station tube furnace
1. Operation Temperature: 1200℃ (Max. temp. 1300℃ )
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.
6. Can be rotated in 360° according to your requirement.
| Model | PT-TD1200-S80LK1W |
| Display screen | LED |
| Furnace material | high-quality and high-purity alumina polycrystalline fiber |
| Maximum temperature | 1300 ℃ (lasting for 5 minutes) |
| Working temperature | 1200℃ |
| Heating rate | recommended 5-7 ° C/min |
| Furnace tube material | aluminum oxide tube |
| Hot zone length | OD80*300mm |
| Rotating structure | 360 degree multi angle rotation |
| Temperature control system |
1. PID method is used to adjust the temperature control, and 30 stages of heating and cooling programs can be set 2. Temperature control accuracy ± 1 ℃ 3. Equipped with overtemperature protection and couple breaking protection functions, when the temperature is too high or the couple is broken, the heating circuit of the electric furnace will automatically cut off, achieving unmanned operation |
| Heating element | silicon carbide heating element |
| Temperature measuring element | S-type thermocouple |
| Power supply | AC220V，50/Hz |
| Maximum power | 4KW |
| Random accessories | 1 set of air supply, 1 crucible clamp, 1 glove, instruction manual, warranty card |
| After sales service | one year warranty (excluding vulnerable parts) |
| Customizable |

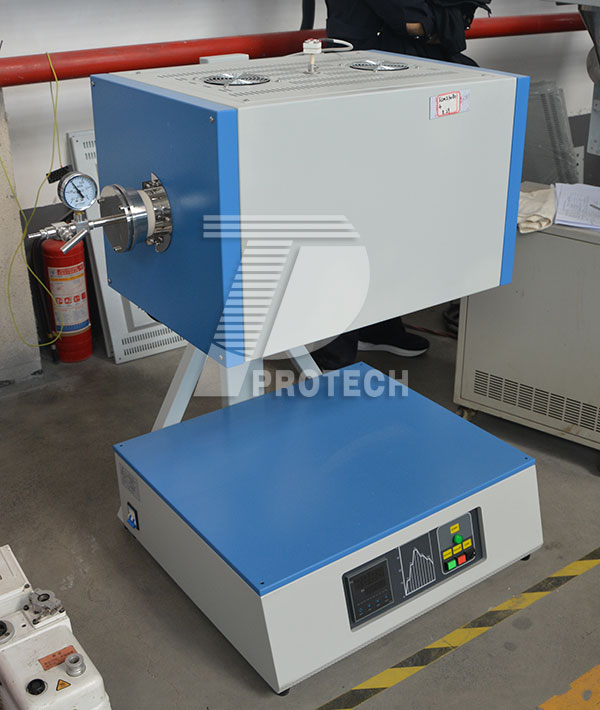

Real shot of 1200 ℃ multi station tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
