Continuous calcination furnace for High Purity Alumina (HPA)

Continuous calcination furnace for High Purity Alumina (HPA)

Model:PT-T1400

Description:Continuous calcination furnace for High Purity Alumina (HPA) is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity.

Inquire Now

Introduction:
Introduction:

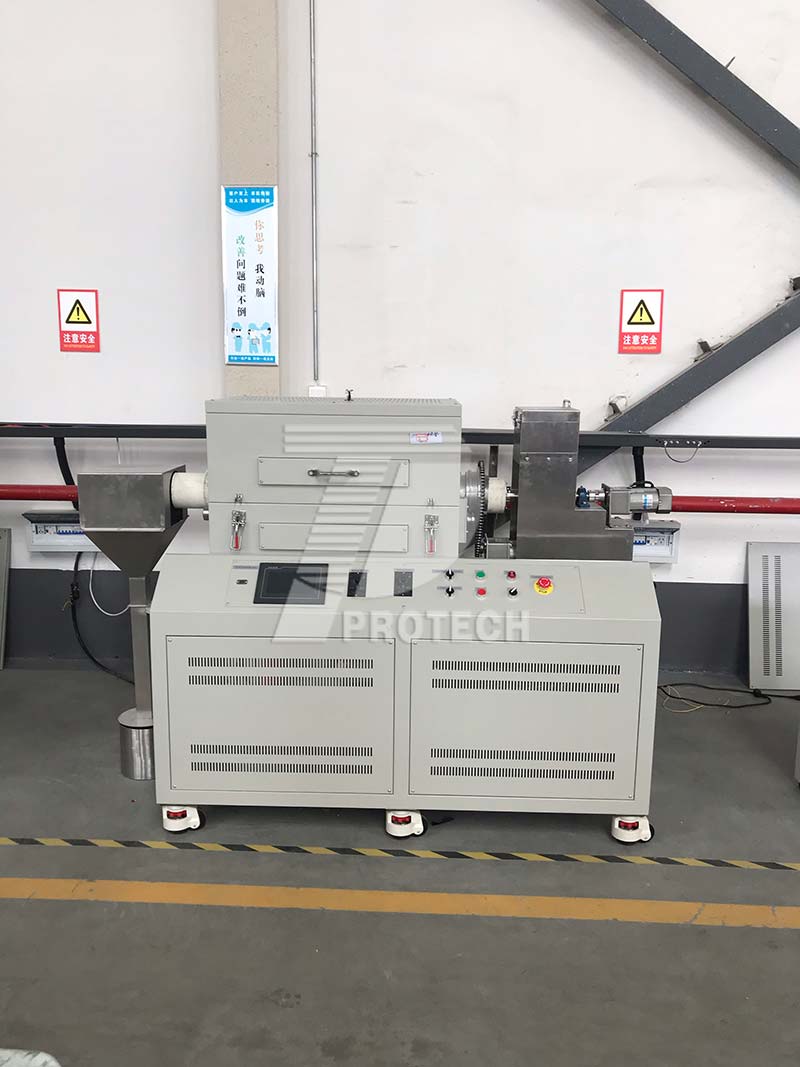

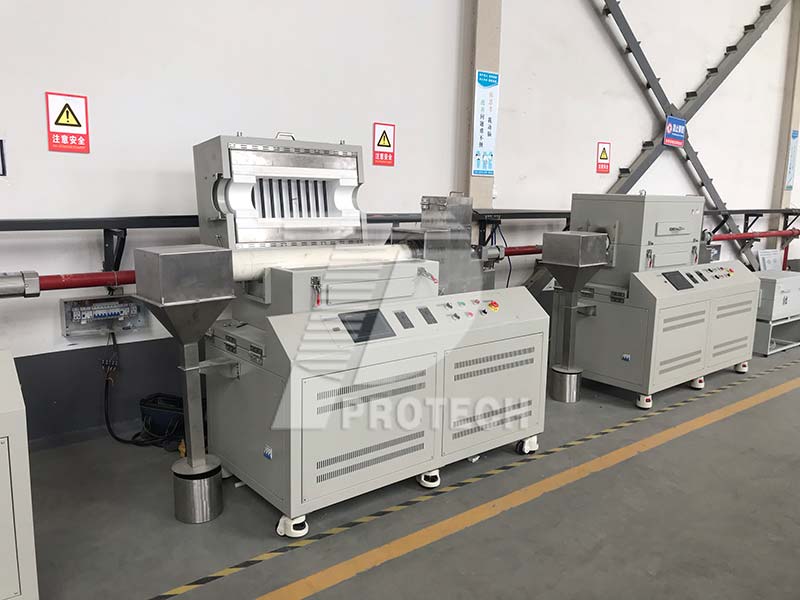

Continuous calcination furnace for High Purity Alumina (HPA)
 is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.It belongs to a type of Rotary tube furnace, capable of continuous feeding and discharging, and can be used for sintering aluminum oxide powder.

Technical Parameter:
Model PT-T1400
Display LCD Touch Screen

Max. Temperature 1400℃ Max for short time
Continuous working Temperature ≤1350℃
Heating Rate Suggestion 0~5℃/min (If diameter is big, pls control the rate as slow as possible)
Temperature Zone 500 mm  (1 hot zone)
Temperature Control Accuracy ±1℃
Tube Size Ф130mm x 1200mm ODxL
Tube Material Alumina tube
Tube sealing One side of tube is with feeder
The other side is with outlet
Heating Element Sic heating elements
Tube Rotating Speed 0-5 RPM
Furnace Tilt Angle 0~5℃
Thermocouple S Type
Max. Power 15 KW approx. (accurate power depends on final design)
Working Voltage AC 415V Three phases, 50Hz (or according to your requirement)
Temperature Control PID automatic control via SCR power control

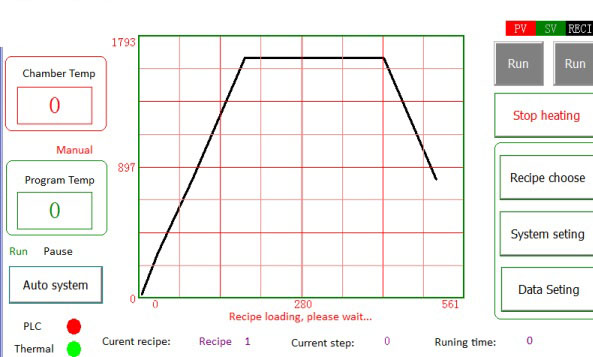

Heating curves 30 steps programmable
Chamber material Alumina Fiber
Warranty One year limited warranty (Consumable parts such as heating elements and alumina tube are covered by the warranty)












Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
