Model：PT-TX1000-H150LK1
Description：Mainly used in fields such as crystal annealing, electronic lighting,two-dimensional material sintering, atmosphere protected sintering,vacuum coating, CVD experiments,and material composition determination.
The daily working temperature of the PT-TX1000-H150LK1 1000 ℃ vacuum powder treatment rotary tube furnace is 1000 degrees. The furnace is lined with alumina fiber, with intelligent temperature control, simple operation, and high intelligence. Mainly used in fields such as crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protected sintering, vacuum coating, CVD experiments, and material composition determination. It belongs to a type of rotary tube furnace.

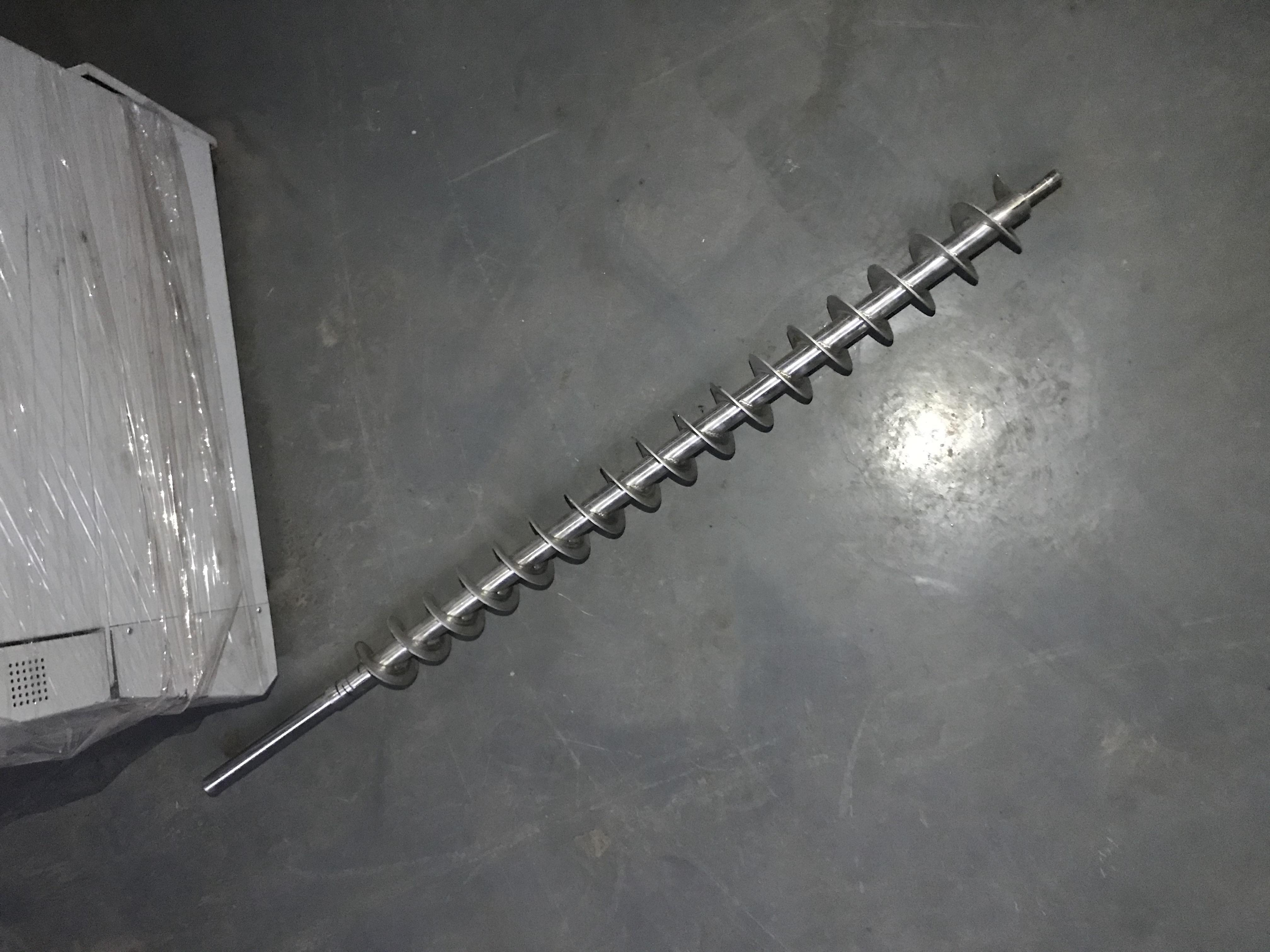

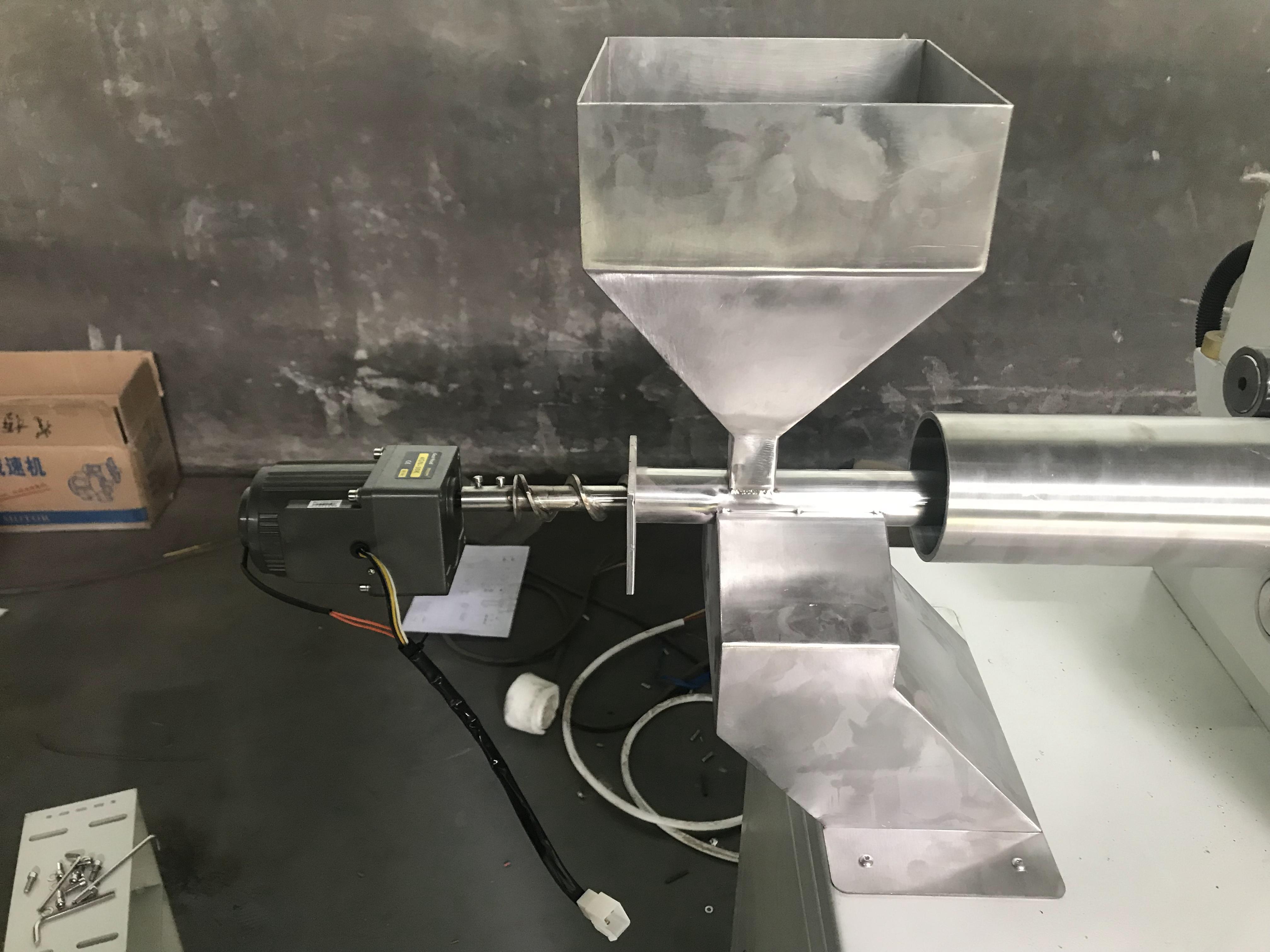

Actual photo of 1000 ℃ vacuum powder treatment rotary tube furnace
| Model | PT-TX1000-H150LK1 |
| Structure |
Carbon steel outside shell Alumina fiber lining Double-layer structure with cooling fan Split type (Mechanical lifting upper cover.) |
| Tube |
Stainless steel tube OD150* L1600mm Rate-adjustable rotation function 0-20r/m Clockwise and anticlockwise |
| Sealing |
Air-tight From funnel to collection tank. Analog pressure gauge with measurement range from -0.1Mpa to 0.15Mpa KF40 Gas-in port and gas-out port. |
| Funnel |
5L volume |
| Pusher |
Mechanical type  Adjustable pushing rate |
| Collection tank 5L |
 |
| Heating zone length | 600mm |
| Working Temperature | 1000℃ |
| Temperature detector | K-type thermocouple |
| Temperature Control |
PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant |
| Heating Rate | Suggestion: ≤10℃/min |
| Temperature Accuracy | +/-1℃ |
| Heating Element | SiC |
| Tilting angle | 0-15 |
| Working Voltage | 220V, 60Hz |
| Max. Power | 15 KW(Estimated) |
| Production Period | 25 working days |
| Warranty Period | 1 year (Lifetime support) |

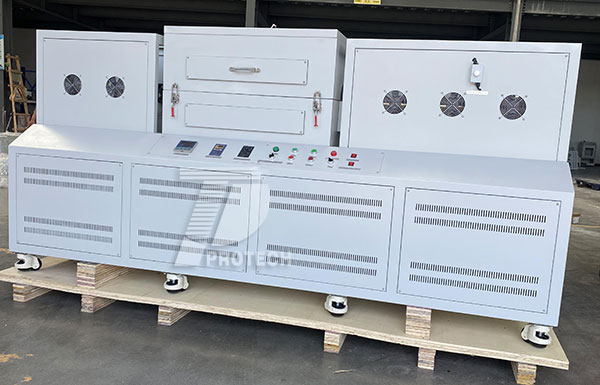

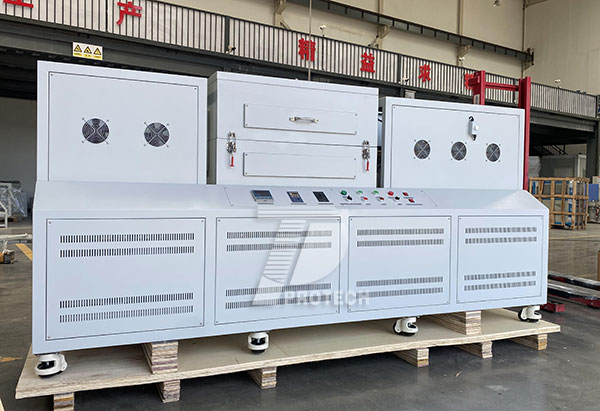

Actual photo of 1000 ℃ vacuum powder treatment rotary tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
