Model：PT-R100*900-1000
Description：The whole system consists of one crucible furnace and a main rotary tube furnace with graphite sealing design, gas inlet and outlet with related valves are equipped, user can collect gas from the preheating furnace and main tube furnace. There are two different process technology according to client actual requirement.
The whole system consists of one crucible furnace and a main rotary tube furnace with graphite sealing design, gas inlet and outlet with related valves are equipped, user can collect gas from the preheating furnace and main tube furnace. There are two different process technology according to client actual requirement. Belongs to a type of rotary tube furnace.

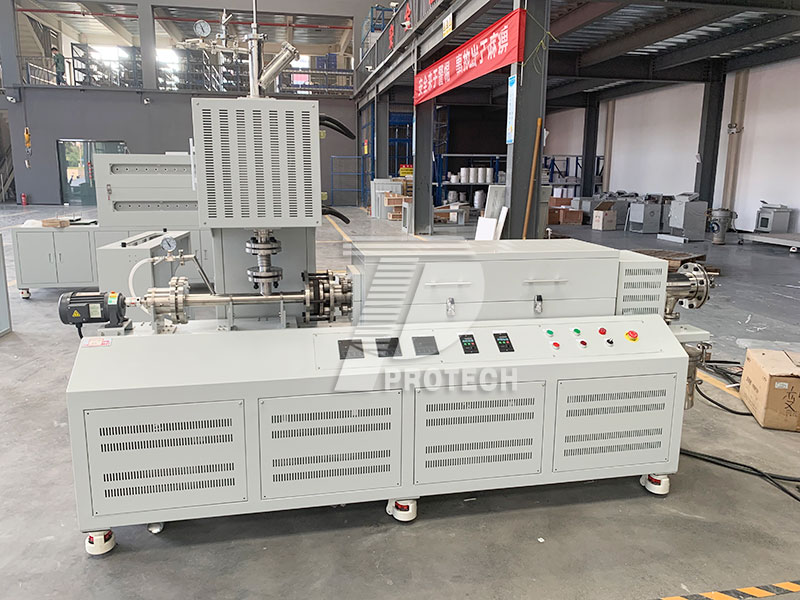

Actual photo of a three temperature zone rotary tube furnace with preheating
Samples get preheated inside the crucible furnace then baffle get opened manually, sample get discharged with the screw feeder to the main rotation tube furnace and get forward continuously along with main tube rotation until to the discharged hopper, user adjust the tube rotation speed to control the resistance time. Only one 10L discharged hopper works. There are necessary thermal insulation to reduce the heat loss from the preheating furnace until to the main furnace. The main rotation tube furnace works independently, the inclination angel is adjustable from 0°to 10°, feeding hopper and discharged hopper of 10L work together.
1.The tube is rotary & multiple heating zone design for sample uniform heating, user can also set temperature gradient according to actual need.
2.Independent temperature controller. 30 steps of programmable temperature.
3.Adjustable high precision 10L screw feeder is equipped, so the main rotary tube furnace can work independently without the preheating furnace.
4.Variable frequency motor to control tube rotation speed and screw feeder.
5.Adjust tilt angle with digital angle gauge.
6. Combined aural and visual alarm for accident of over temperature & thermocouple broken, and the power supply of the heating part will cut off automatically.
7.The whole system is sealing design with inlet & outlet valves, user can collect the gas. Ferrofluid seal for the manual baffle and screw feeder, graphite dynamic seal for two ends of the main furnace.
| Product name | Main rotary tube furnace | Preheating crucible furnace |
| Model | PT-R100*900-1000 | PT-C200*300-800 |
| Display | LED | LED |
| Max Continuous Working Temp. | 1000℃ | 800℃ |
| Tube material | 310S stainless steel | 310S crucible |
| Tube Diameter | OD100mm |
OD200*H300mm |
| Total tube length | 1400mm(for reference only) | |
| Hot zone length | 900mm | |
| Hot zone num. | 3 | |
| Single hot zone length | 300mm | |
| Angle of inclination | 0~10°adjustable | |
| Rotate speed | 0~10rpm adjustable | |
| Volume of hoppers | 10L | |
| Hoppers material | Stainless steel | |
| Heating Rate | 0~20℃/min | |
| Thermal Control Accuracy | +/- 1℃(for high temperature state) | |
| Heating Element | Resistance wire with Mo | |
| Thermal Couple | K type | |
| Working Voltage | 220V 50/60HZ | |
| Temperature Control | PID automatic control via SCR power control | |
| Warranty | One year warranty(not include heating element and other wear parts) | |
Actual photo of a three temperature zone rotary tube furnace with preheating
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
