Model：PT-TX1300-L100LK1
Description：This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell.
This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell. The room is equipped with an air cooling system that can heat up quickly; the furnace body can be tilted 0-10° (Button control), and the furnace tube can rotate 360 degrees.Click to view more Rotary tube furnace!or consult online customer service for detailed product information!

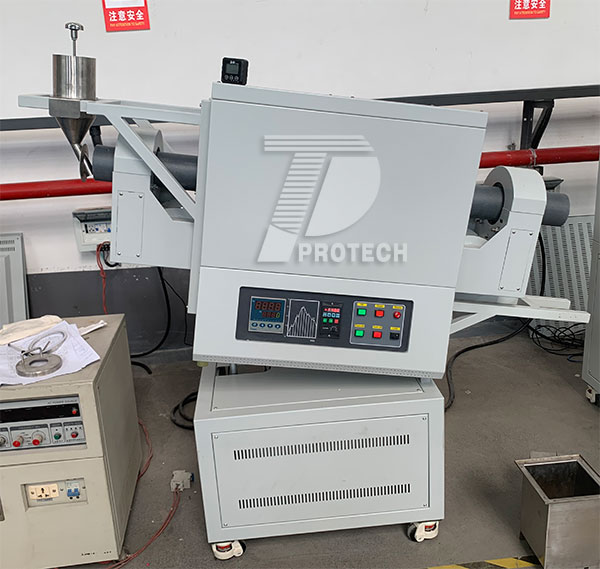

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubes
|
Structure
|
Carbon steel outside shell Two layers of Alumina fiber boards · 1400deg.C alumina fiber · 1600deg.C alumina fiber Cooling fans |
|
Tube |
Alumina ceramic tube OD.100mm,ID.92mm×Len.1260mm Quartz tube OD.100mm,ID.92mm×Len.1260mm Silicon carbide tube OD.100mm,ID.80mm×Len.1260mm |
|
Sealing |
SS 316 Flanges with rubber (With analog vacuum gauge) |
|
Working Temperature |
≦1300℃ ( Alumina ceramic tube) ≦1300℃ ( Silicon Carbide Tube) ≦1100℃ ( Quartz tube) |
|
Temperature sensor |
S-type Thermocouple |
|
Temperature Control |
PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant |
| Heating Rate | 0~15℃/min (suggestion: ≤10℃/min) |
| Temperature control Accuracy | +/-1℃ |
| Heating Element | SiC heating rods |
| Rotary Speed | 0-30RPM variable (speed regulator) |
| Tilting Angle | 0-10°variable (Button control) |
| Working Voltage | AC 220V, Single Phase, 50 Hz |
| Max. Power | 5.0 kW |
| Warranty Period | 1 year (Consumable parts such as tube,heating rods and thermocouple are not covered) |

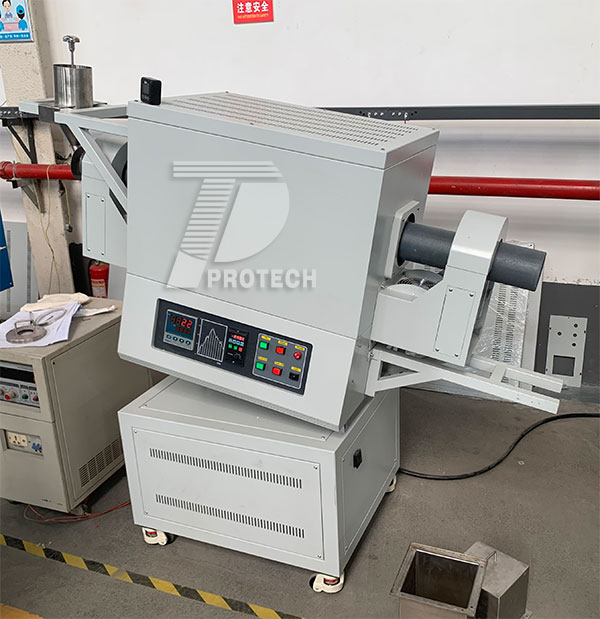

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubes

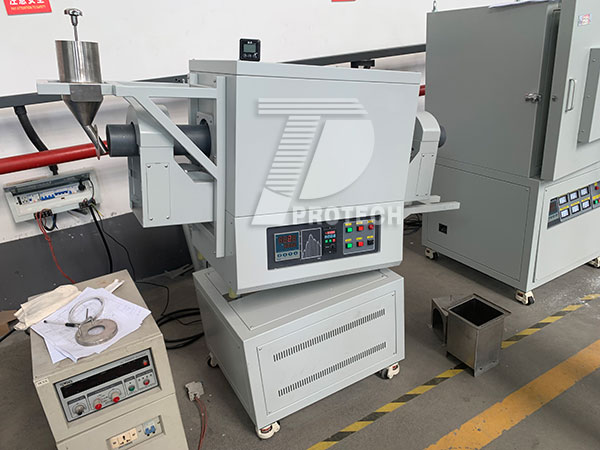

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubes
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
