Model：PT-TX1200-S80LK1W
Description：The 1200 ℃ high-temperature rotary tube furnace is a customized rotary tube furnace based on user needs, equipped with a dynamic and static sealing device on the right side and a condensation collection tank. The furnace adopts a lightweight ceramic fiber refining furnace, a double-layer shell structure, and an intelligent temperature control system, with high temperature control accuracy.
The 1200 ℃ high-temperature rotary tube furnace is a customized rotary tube furnace based on user needs, equipped with a dynamic and static sealing device on the right side and a condensation collection tank. The furnace adopts a lightweight ceramic fiber furnace, a double-layer shell structure, and an intelligent temperature control system, with high temperature control accuracy; Equipped with an air cooling system between the double layer furnace shells, effectively reducing the surface temperature of the furnace shell; Combining our standard vacuum and gas mixing system, the furnace can be vacuumed and the atmosphere can be ventilated. The furnace body can be tilted, and the furnace tube adopts equal diameter high-purity quartz tube. The furnace tube can rotate at 360 ℃, allowing the material to fully rotate during the rotation process, making the material more evenly heated and achieving better experimental results. High temperature rotary furnaces are used in universities, research institutes, and industrial and mining enterprises for the growth of graphene, high-temperature atmosphere sintering, atmosphere reduction, CVD experiments, etc. Click to view more Rotary tube furnace! Or click to consult the online business manager to learn more about product related content!

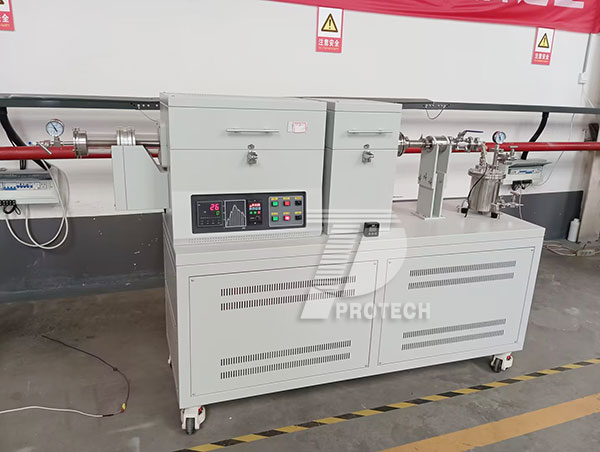

Actual photo of 1200 ℃ high-temperature rotary tube furnace
1.The double-layer shell has an open structure, making it easy to remove and place the furnace tubes, and is equipped with an air cooling system.
2.High temperature warning and disconnection prompt function.
3.Stainless steel metal flange with valves and related interfaces, easy to disassemble and assemble, capable of vacuuming and filling with protective gas to micro positive pressure.
4.The lower box of the equipment is a movable box that can also serve as a material rack, making the overall movement of the furnace convenient.
| Product name | High temperature rotary furnace |
| Model | PT-TX1200-S80LK1W |
| Shell structure | The opening structure on the double-layer shell makes it easy to take and place the furnace tube. Equipped with an air cooling system |
| Furnace tube size approx. | outer diameter φ80mmX1200mm |
| Furnace tube material | Equal diameter high purity quartz tube |
| Heating zone length | 440mm ，The length of the constant temperature zone is approx. 200mm |
| Working temperature | The temperature is not greater than 1100℃ under continuous operation; maximum temperature: 1200℃ |
| Temperature control method | Adopt PID control and self-tuning adjustment, intelligent 30-segment programmable control |
| Ultra high temperature alarm | With ultra-high temperature alarm |
| Broken couple tips | There is a reminder of couple breakup |
| Furnace chamber size | High purity alumina refractory fiber |
| Heating rate | 0--10℃/min Adjustable (recommended ≤5℃/min for temperatures above 1000 degrees) |
| Heating element | High quality resistance wire |
| Temperature measuring element | K type thermocouple |
| Working power supply | 220V 50HZ 3KW |
| Tilt angle | Adjustable up to 10 degrees, the angle can be displayed through a digital inclinometer |
| Furnace tube speed | Maximum 10 rpm (speed adjustable, rotation direction adjustable) |
| sealing flange | Stainless steel metal flange, with valve and related interfaces, easy to disassemble and assemble, can be evacuated and filled with protective gas to slightly positive pressure |
| Moving cabinet | The lower box of the equipment is a movable box that can also be used as a material rack, making the furnace as a whole easy to move. |
| special requirements |
A dynamic and static sealing device and a condensation collection tank are installed on the right side. Install heating tape between flange and collection tank. |
| Warranty | 15 months from the date of shipment or 12 months from the date of acceptance (whichever comes first), consumable parts and man-made damage are not covered by the warranty. |
| Precautions |
1. The air pressure inside the furnace tube is less than 0.02MPa 2. When introducing gas into the furnace tube, a pressure reducing valve should be installed on the gas cylinder, which will be more accurate and safer to use. 3. When the equipment is running, it is not recommended to close the air outlet valve and air inlet valve at the flange end of the furnace tube. If you need to close the air valve to heat the sample, you need to always pay attention to the pressure gauge indication. If the air pressure indication is greater than 0.02MPa, you must open the air outlet valve immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.) 4. When the furnace is at high temperature, the furnace tube cannot be in a vacuum state. The air pressure in the furnace tube must be equal to the atmospheric pressure and maintained at normal pressure. 5. Customers are not recommended to use flammable, combustible, corrosive, or toxic materials or gases. If the process must be used, please install relevant safety devices yourself. The company is not responsible for the problems caused. |

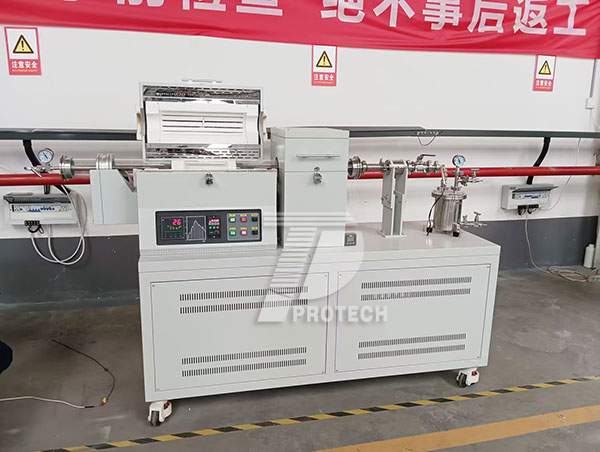

Actual photo of 1200 ℃ high-temperature rotary tube furnace

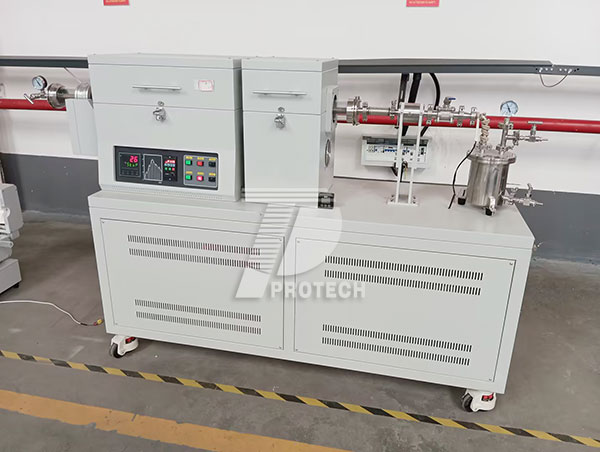

Actual photo of 1200 ℃ high-temperature rotary tube furnace
