Model：PT-TX1000-L150CK3W
Description：The PT-TX1000-L150CK3W inclined rotary tube furnace is used for laboratory calcination and drying of positive electrode materials, non strong acid-base powder materials, and granular materials in batteries. Users can choose to calcine under vacuum or atmosphere protection according to the materials they want to calcine.
The PT-TX1000-L150CK3W inclined rotary tube furnace is used for laboratory calcination and drying of positive electrode materials, non strong acid-base powder materials, and granular materials in batteries. Users can choose to calcine under vacuum or atmosphere protection according to the materials they want to calcine. Click to view more Rotary tube furnace, or click to consult online customer service for more product related content!

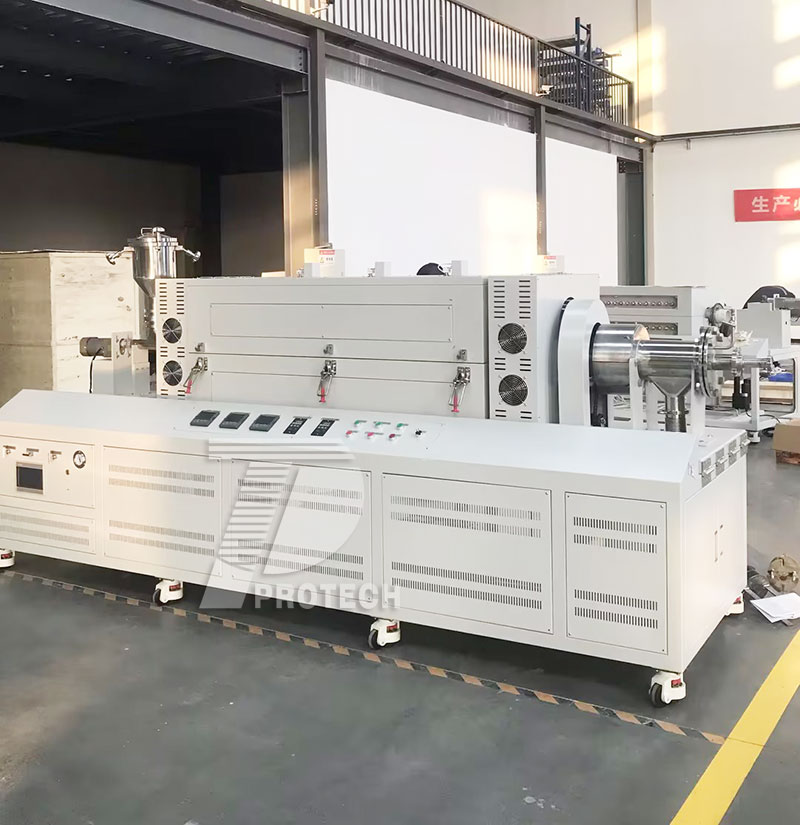

Actual photo of PT-T1000-L150CK3W inclined rotary tube furnace
| Model | PT-TX1000-L150CK3W |
| Furnace structure |
Carbon steel outside shell Alumina fiber lining Double-layer structure with cooling fan Split type |
| Continuous working Temperature | ≤1000℃ |
| Heating Rate | 0-20℃/min, Suggestion 0~10℃/min |
| Temperature Zone | Three heating zone |
| Heating zone length | 400+400+400mm, total length 1200mm |
| Tube size | OD150mm x L2400mm |
| Heating Element | SiC rods |
| Temperature Control Accuracy | ±1℃ |
| Tube rotating Speed | 0 - 5RPM variable |
| Furnace Tilt Angle | 0~5° |
| Thermocouple | 3 pieces of K type |
| Max.heating Power | 26KW(Specific according to design) |
| Tube material | Inconel 601(with lifting blade inside) |
| Chamber material | Alumina Fiber |
| Left side |
-8L of SS304 stainless steel of container;
-Auger drive for material feeding (SS316 stainless steel); -N2 Gas inlet; -SS304 stainless steel cover for relative sealing. |
| Right side |
-4L of SS304 stainless steel of container, both top and bottom with valves;
-OD35xL600mm Inconel 60l tube on the right side for exhaust gas out(with diameter 50mm flange connection port). -SS304 stainless steel cover for relative sealing. -N2 Gas inlet; |
| Working Voltage | AC 480v, three-phase, 60 Hz |
| Temperature Controller |
3 pieces of Eurotherm 3504 temperature Controllers |
| Mass flow meter |
MFC 1: 0-2000sccm, N2 MFC 2: 0-20000sccm, N2 Installed with 2 stainless steel needle valves. Accuracy： ±1.5 % F.S Linear：±(0.5~1.5) % F.S Repeatability：±0.2 %F.S Response time ： Electrical Characteristics: 10 sec Gas Characteristics: (1 ~ 4) sec Working pressure range：(0.1 ~ 0.5) MPa Operating ambient temperature：5 ℃ ~ 45 ℃ Input and output signals：0 V ~ +5.00 V (Input impedance is > 100K, output current < 3mA) |
| Warranty | One year limited warranty |

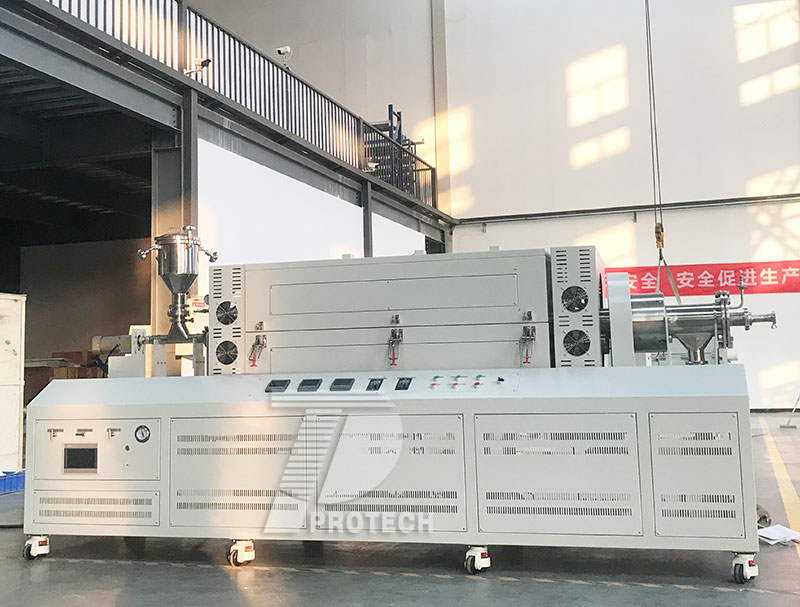

Actual photo of PT-T1000-L150CK3W inclined rotary tube furnace

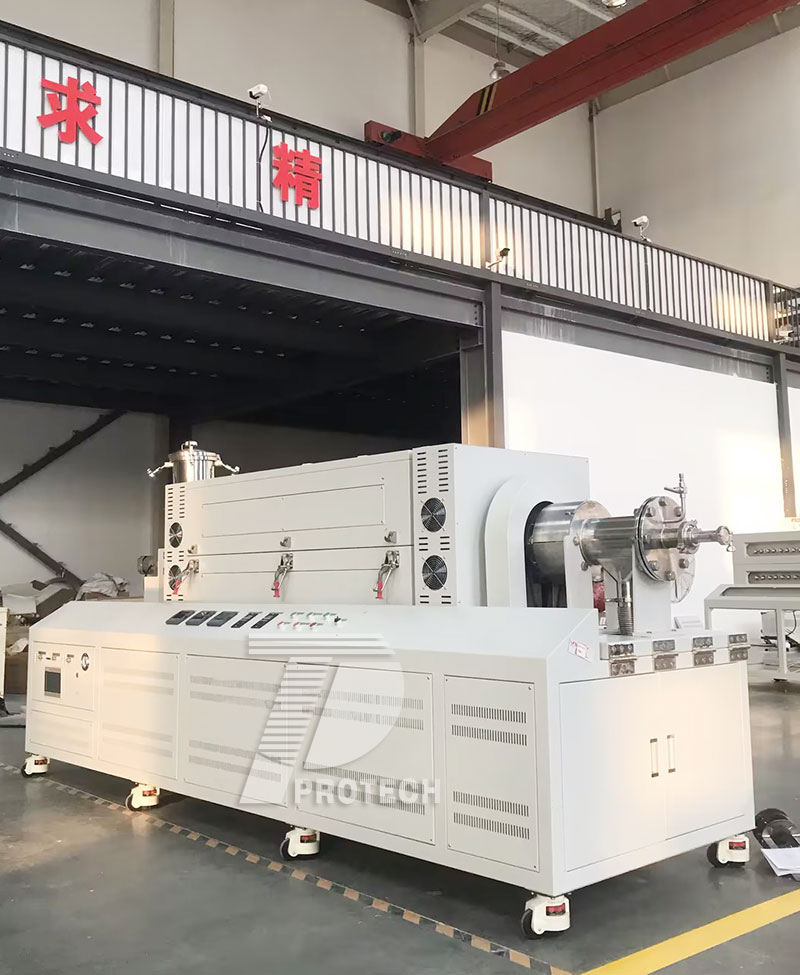

Actual photo of PT-T1000-L150CK3W inclined rotary tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
