vacuum tube furnace (Single he

quartz tube furnace

Model£ºPT-1200T

Description£ºIt is widely used in synthesis of the new material and quick sintering of the workpiece, such as, Piezoelectric ceramics, superconducting materials, magnetic materials, ferroelectric superhard materials.

Inquire Now

1.Descriptions of quartz tube furnace :

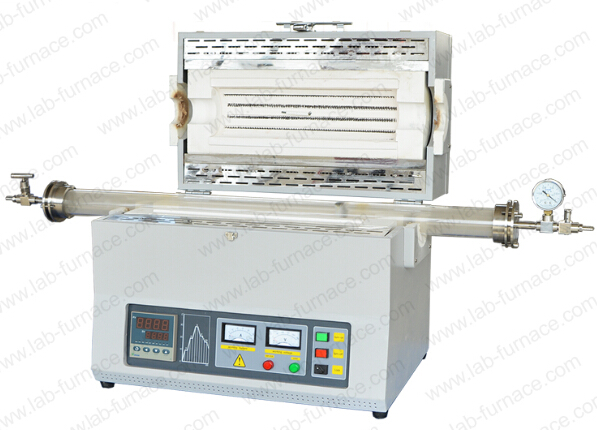

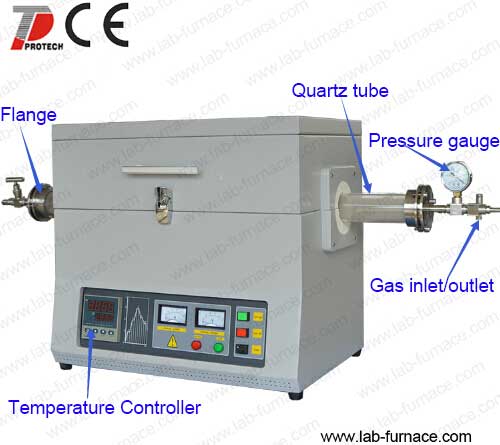

Quartz tube furnace can adopt OD50 quartz tube and a pair of stainless steel vacuum sealing flanges with needle valves & gauge allow heating samples under vacuum or gas flow conditions. The temperature of this tube furnace is controlled by a high precision digital controller which provides 30 programmable segments with +/- 1°C accuracy. The max. working temperature is 1200°C.




2.Features of quartz tube furnace :
1. Operation Temperature: 1100¡æ ( 1200¡æ for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!


3.Technical parameters of quartz tube furnace :

Chamber Size Φ50x300mm (2.0"x12")
Working Temperature 1100¡æ (continuous)
Maximum Temperature 1200¡æ
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15¡æ/min (suggestion: ≤10¡æ)
Temperature Accuracy +/-1¡æ
Heating Element Fe-Cr-Al resistance wire
Working Voltage AC 220V, Single Phase, 60/50 Hz  (or according to your requirement)
Max. Power 3 KW
Note: there are different chamber sizes for your choice.

 Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
