Model：PT-T1400-L80-SJ

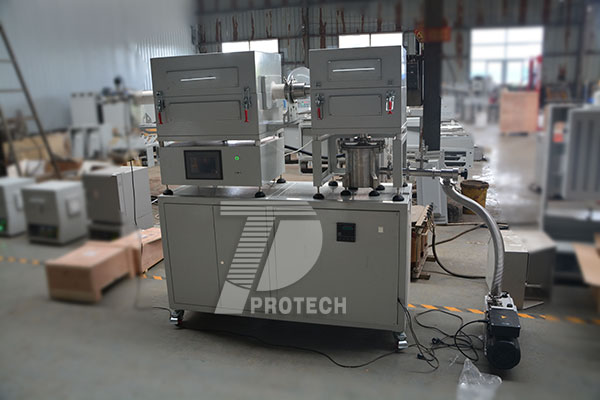

Description：The PT-T1400-L80-SJ customized tube furnace adopts a box furnace structure for gas insulation, with resistance wire heating. The tube furnace above is heated by silicon carbon rods, specifically made for materials that require special heat treatment processes.
PT-T1400-L80-SJ customized tube furnace adopts a box furnace structure for gas insulation, with resistance wire heating. The tube furnace above is heated by silicon carbon rods, specifically made for materials that require special heat treatment processes.It belongs to a type of Multi-Zone Tube Furnace.
| Chamber Structure | Split design |
| Display | LCD touch screen |
| Max. Working Temperature | 900℃ |
| Heating Rate | 0~20C/min (suggest 0~15℃/min ) |
| Tube material | 310S |
| Tube with screw feeder |
Outer diameter: 89mmm inner diameter:77mm |
| Heating zone num | 3 |
| Unit heating zone length | 220mm |
| Heating Element | Resistance wire with Mo |
| Thermocouple | K Type |
| Max. Power | 7kW |
| Working Voltage | AC 380V 3P, 50 Hz |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 16 curves, 30 steps programmable |
| Hopper volume | 5L |
| Chamber material | Alumina Fiber |
| Gas inlet and outlet | Stainless steel gas inlet&outlet with needle valve |
| Limit working pressure | 0.02MPa |
| Pressure Gauge | Mechanical pressure gauge |
| Warranty | One year warranty (Consumable parts such as heating elements and insulation material are not covered by the warranty) |
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
