Model：PT-TG1000-S300LK3
Description：The large diameter three temperature zone tube furnace with sliding flange is composed of a furnace shell, furnace lining, heating element, and temperature control cabinet device. The furnace shell is divided into upper and lower parts, and the upper part is electrically controlled. It can be flipped and opened when loading and unloading the furnace tubes. The furnace lining adopts alumina fiber lining.
The large diameter three temperature zone tube furnace with sliding flange is composed of a furnace shell, furnace lining, heating element, and temperature control cabinet device. The furnace shell is divided into upper and lower parts, and the upper part is electrically controlled. It can be flipped and opened when loading and unloading the furnace tubes. The furnace lining adopts alumina fiber lining. The heating element is installed on the furnace lining using high-temperature silicon carbon rods arranged vertically. There are three heating temperature zones that can be individually controlled, and the temperature curve can be set to automatically control the temperature.Because there are multiple heating temperature zones, it belongs to multi-zone tube furnace.

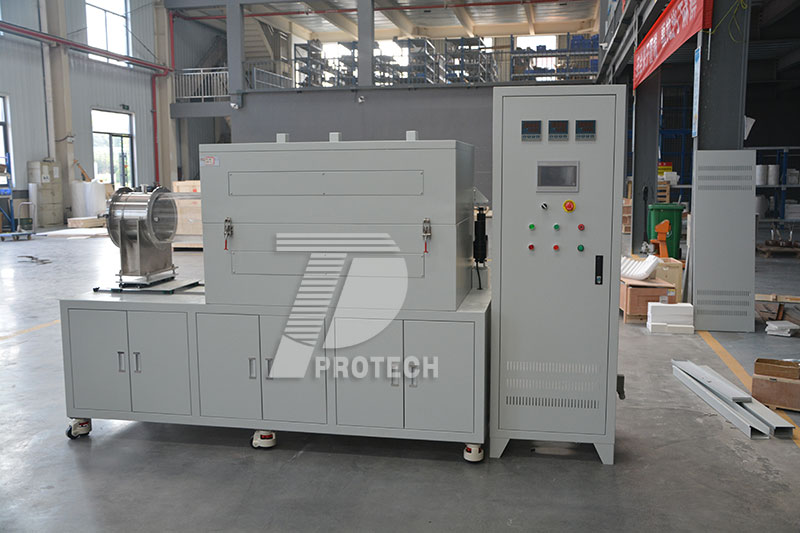

Actual photo of a large diameter three temperature zone tube furnace with sliding flange
| Product name | Large diameter tube furnace | ||
| Product model | PT-TG1000-S300LK3 | ||
| Furnace tube size | about Φ three hundred × 1550 mm (based on actual size) | ||
| Furnace tube material | Quartz tube | ||
| Furnace tube structure | Customized single end sealing quartz tube with quartz inlet pipe (provided by the user) | ||
| Heating zone | Three temperature zones, each with a length of 300mm, and a total length of 900mm for the heating zone | ||
| Working temperature | ≤1000℃ | ||
| Heating element | High temperature silicon carbon rod | ||
| Temperature control accuracy | ±1℃ | ||
| Heating rate | 1-15 ℃/min, freely adjustable according to the process | ||
| Furnace structure |
1. It adopts a double-layer shell structure and has a cooling fan installed inside the furnace body, ensuring that the surface temperature of the equipment is less than 60 ℃ 2. The furnace is composed of furnace materials, insulation materials, and heating elements 3. The temperature control system consists of temperature control instruments, control components, and thermocouples 4. Integrated structure of furnace body and temperature control, with the furnace fixed on the lower box body |
||
| Temperature testing element | K-type thermocouple with three temperature control thermocouples for more accurate temperature control | ||
| Temperature control system |
The temperature control system adopts touch screen operation and artificial intelligence adjustment technology, with PID adjustment and self tuning functions, and can program 30 sections of temperature rise and fall; 1. PID method is used to adjust and control the temperature, with 30 segments of temperature rise and fall programs and three independent temperature control systems 2. Temperature control accuracy ± 1 º C 3. Equipped with over temperature protection and couple breaking protection, the heating circuit of the electric furnace is automatically cut off when over temperature or couple breaking occurs, allowing for unmanned monitoring 4. The instrument has the function of temperature self-tuning 5.Optional temperature control software can be purchased, and the heating temperature of the equipment can be set using a computer 6.Touch screen operation, data can be stored and output, with 485 interface |
||
| Sealing flange | Using sleeve flanges, KF25 drain/outlet, KF25 vacuum interface, all designed on the flange | ||
| Door opening method | Electric door opening | ||
| Air intake control | Inert protective gases such as nitrogen and argon can be introduced, and the intake range is measured through a float flowmeter. The flow range can be adjusted according to user requirements | ||
| Working voltage | AC 380V 50Hz | ||
| Heating power | 36KW | ||
| Provide relevant accessories | Crucible hook, high-temperature gloves, thermocouple, instruction manual, warranty card, 4 spare rods, etc | ||
| After sales service | 12 month warranty, lifetime warranty (random accessories such as heating elements are not included in the warranty scope) | ||

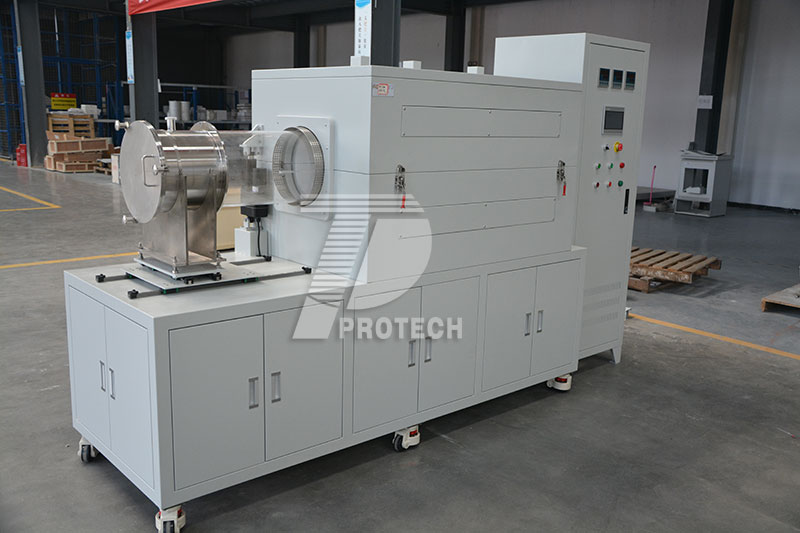

Actual photo of a large diameter three temperature zone tube furnace with sliding flange
