Model：PT-TG1100-S80LK2W
Description：1200C dual temperature zone tube furnace is mainly used for the preparation of rare earth, electronic lighting, crystal annealing, bio ceramics, electronic ceramics, special alloys, magnetic materials, precision casting, metal heat treatment and other industrial vacuum sintering, protective atmosphere sintering, vacuum deposition, CVD experiments, material composition measurement occasions.
1200C dual temperature zone tube furnace is mainly used for the preparation of rare earth, electronic lighting, crystal annealing, bio ceramics, electronic ceramics, special alloys, magnetic materials, precision casting, metal heat treatment and other industrial vacuum sintering, protective atmosphere sintering, vacuum deposition, CVD experiments, material composition measurement occasions.Because there are two temperature zones, it belongs to a Multi-Zone Tube Furnace.

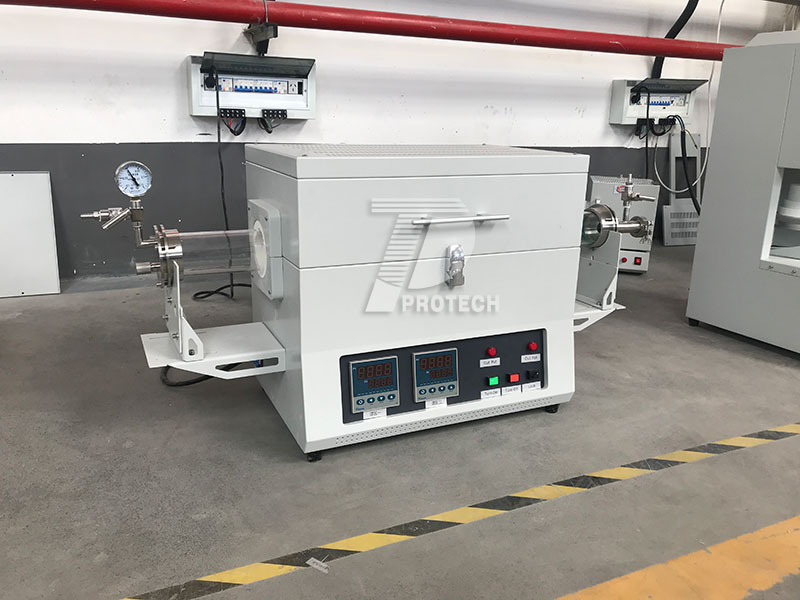

Real shot of 1200C dual temperature zone tube furnace
1. Great temperature uniformity.
2. Over temperature protection and alarm.
3. PID automatic control via SCR power control.
| Model | PT-TG1100-S80LK2W |
| Furnace Shell | Carbon Steel |
| Display | LED |
| Limiting Temperature | 1200℃ |
| Usable Range | ≤1100℃ |
| Heating Rate | Suggestion 0~10℃/min (max. 20℃/min) |
| Temperature Zone | 2 zones |
| Heating Zone Length | 220+220mm |
| Temperature Control Accuracy | ±1℃ |
| Tube Diameter | Φ80mmx1000mm |
| Heating Element | Resistance Wire with Mo |
| Thermocouple | K Type |
| Max. Power | 4 KW |
| Working Voltage | AC 208V-240V single phase, 50 Hz |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Ceramic Fiber |
| Flange | The flange set has two 1/4'' Bard fittings, two-needle valve, one set of KF25 quick clamp, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port |
| Warranty | One year limited warranty (Consumable parts such as heating elements are and quartz tube are not covered by the warranty) |

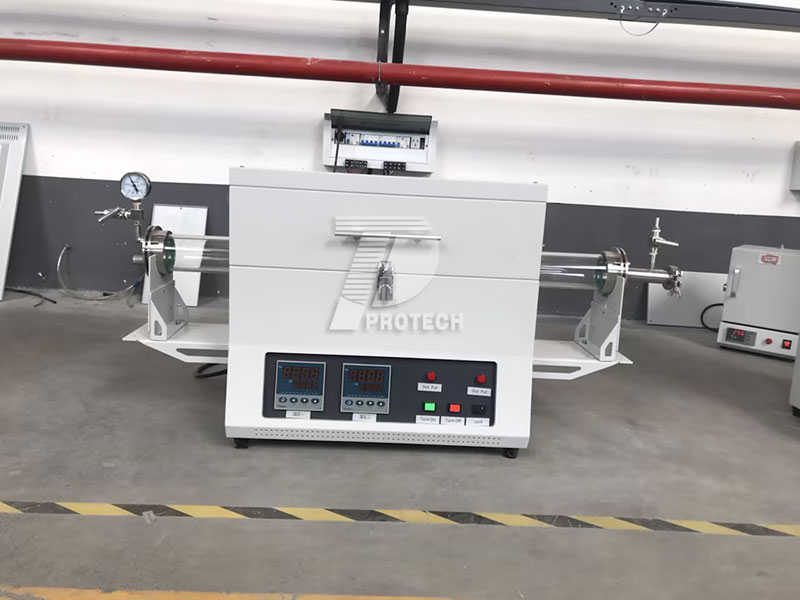

Real shot of 1200C dual temperature zone tube furnace

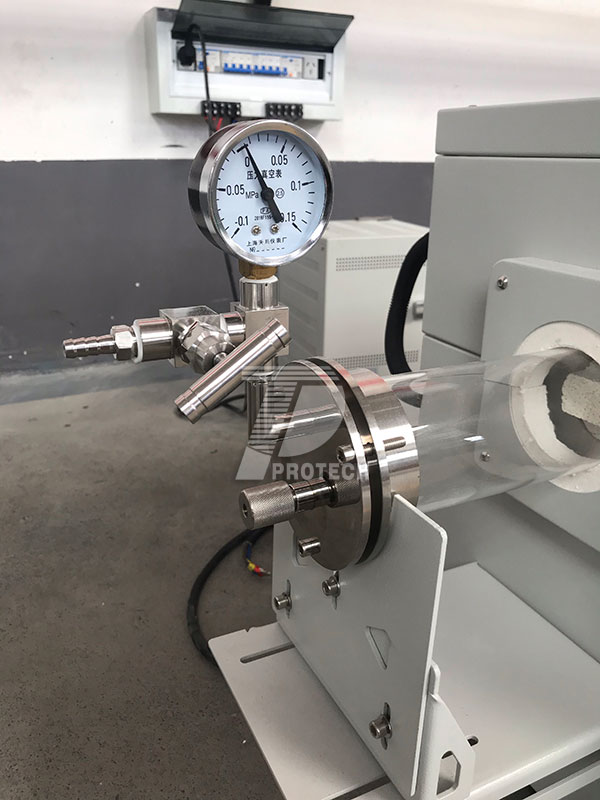

1200C double temperature zone tube furnace flange
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
