1700℃ Vacuum tube furnace

1700℃ Vacuum tube furnace

Model:PT-T1700-80(400mm)

Description:The vacuum tube furnace is mainly used in crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protection sintering, vacuum deposition, CVD experiment, material composition determination and other fields.

Inquire Now

Introduction:
Brief Introduction:
    The vacuum tube furnace is mainly used in crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protection sintering, vacuum deposition, CVD experiment, material composition determination and other fields.Belongs to the conventional
tube furnace series.
Technical Parameter:
Part 1  Tube furnace system
Model PT-T1700-80(400mm)
Tube furnace Display LED Display
  Max. Temperature 1700℃
  Continuous Working Temperature ≤1600℃
  Heating Zone single zone 400mm
  Heating Element MoSi2 rod
  Thermocouple B type
  Temperature Control Accuracy ±1℃
  Tube Size  OD 80mm  ID 74mm
Total length 1200mm
    Material:  Alumina tube
  Temperature Control PID automatic control via SCR power control
  Heating curves 30 steps programmable
  Heating rate 0-10C/min
  Protection Over-heated protection
  Chamber material Ceramic fiber
  Vacuum Flange Mechanical pressure gauge and Stainless Steel vacuum flange(as is shown)
(-0.1-0.15MPa)
  Power Supply 220V, 50Hz, about 5KW
  Standard Accessory Alumina tube×1
    Thermal gloves×1
    Crucible hook×1
    Thermocouple
    Tube block×2
    User Manual×1
Gas system   One way float flowmeter
Like N2: 25-250ml/min

Gas flow range according to your need.
Part 2  Vacuum system
Vacuum pump+ connecting fittings   Vacuum rate -0.1MPa (rough vacuum)
Vacuum pumping speed 120L/min

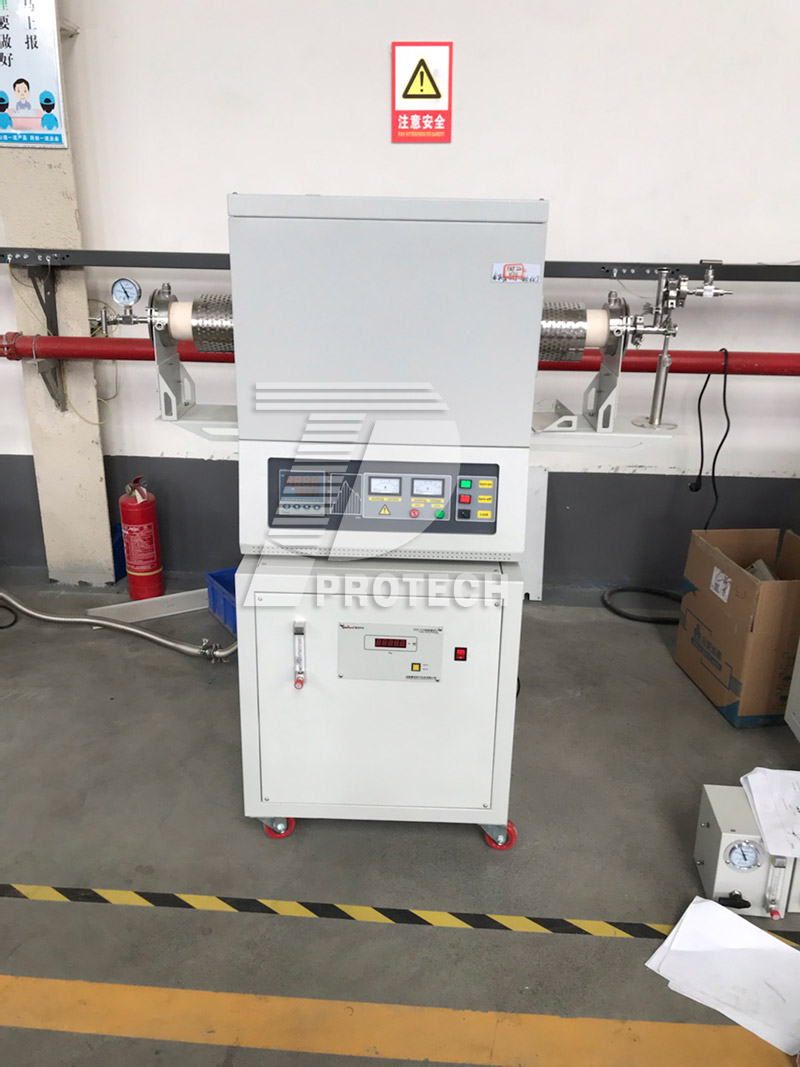

1700℃ Vacuum tube furnace

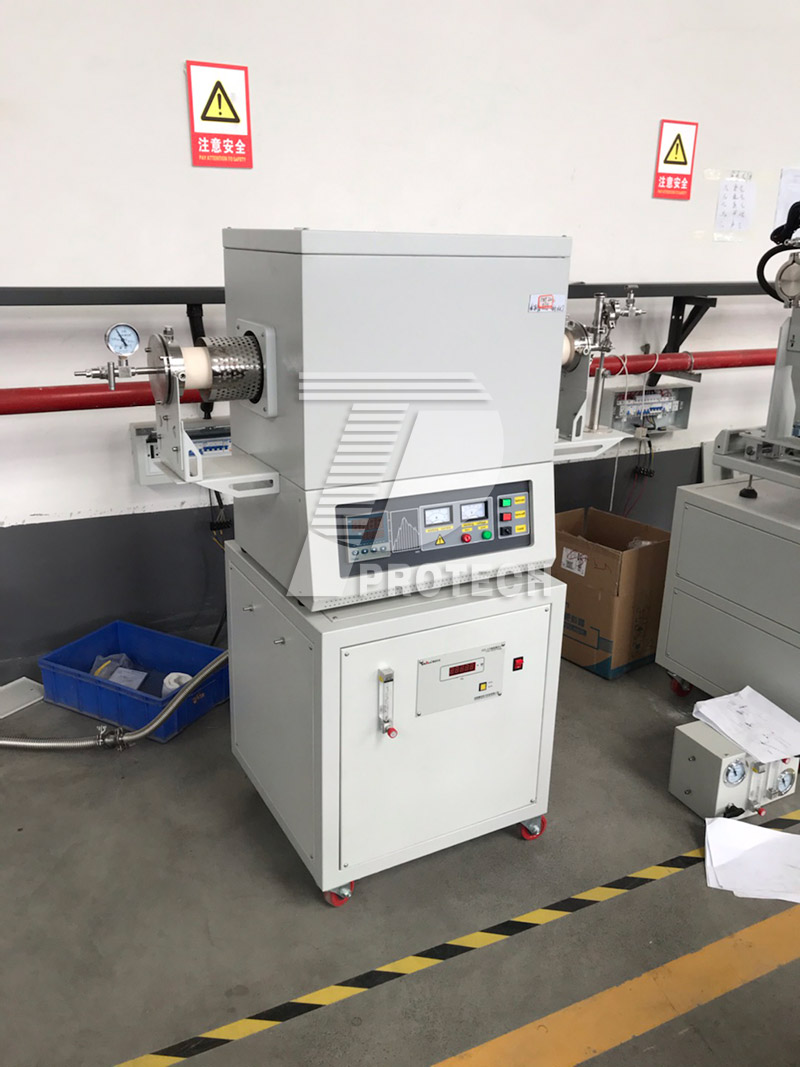

1700℃ Vacuum tube furnace


Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
