Model：PT-T1100-S200CK1W
Description：Mainly used for the preparation of rare earth, electronic lighting, crystal annealing, bioceramics, electronic ceramics, special alloys, magnetic materials, precision casting, metal heat treatment and other industrial vacuum sintering, protective atmosphere sintering, vacuum deposition, CVD experiments, material composition determination and other occasions.
The 1100 ℃ vacuum tube furnace is an efficient and energy-saving new type of electric furnace developed and produced independently by introducing foreign technology. It has a reasonable double-layer shell structure with a surface temperature of less than or equal to 40 ℃, and has a beautiful and elegant appearance. It is made of cold-rolled steel plates, CNC machine tools, high-precision laser cutting machines, and CNC bending machines. The surface is treated with beautiful and luxurious two-color oxidation powder for electrostatic spraying, thus achieving long-lasting, non fading, high temperature resistance, and corrosion resistance characteristics. Because the pipe diameter size is relatively large, it belongs to a type of tube furnace.

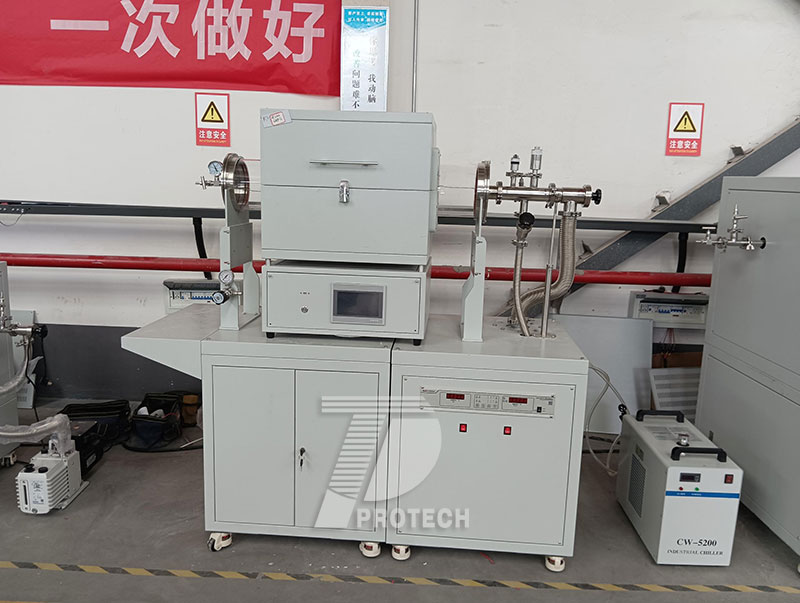

Actual photo of large caliber vacuum tube furnace
Mainly used for the preparation of rare earth, electronic lighting, crystal annealing, bioceramics, electronic ceramics, special alloys, magnetic materials, precision casting, metal heat treatment and other industrial vacuum sintering, protective atmosphere sintering, vacuum deposition, CVD experiments, material composition determination and other occasions.
1.Carbon steel shell and ceramic fiber lining chamber, double layer structure, with cooling fan.
2.Good temperature uniformity.
3.Heat-resistant high-quality rubber ring sealing ensures good sealing performance.
4.Over temperature protection and alarm.
5.30 step programmable temperature controlled by SCR power, automatically controlled by PID.
| Structure |
Carbon steel outside shell Two layers of Alumina fiber boards 1200deg.C alumina fiber 1400deg.C alumina fiber Cooling fans |
| Tube |
Quartz tube OD.200mm×Len.800mm Sealed with flanges and rubber rings |
| Heating zone length | 440mm(Single zone) |
| Maximum Temperature |
1200℃ (Suggestion: Lower than 1100 deg.C) |
| Temperature sensor | K-type Thermocouple |
| Temperature Control |
30 steps programmable PID automatic control Over-heated protection |
| Heating Rate | 0~15℃/min (suggestion: ≤10℃) |
| Temperature Accuracy | +/-1℃ |
| Heating Element | Resistance wire |
| Working Voltage | AC 220V, Single Phase, 50 Hz |
| Max. Power | 6.0 KW |
| Vacuum system |
Mechanical vacuum pump Diffusion vacuum pump |
| Warranty Period | 1 year (Lifetime support) |
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
