1600℃ vacuum atmosphere tube furnace

1600℃ vacuum atmosphere tube furnace

Model:PT-T1600-80

Description:PT-T1600-80 is a vacuum atmosphere tube furnace that can be set with 30 stages of heating and cooling programs, built-in PID automatic adjustment, with over temperature protection and alarm functions, allowing for unmanned operation and setting. It can anneal and sinter samples under atmosphere protection or vacuum environment.

Inquire Now

Introduction:

Product Introduction:

PT-T1600-80 is a vacuum atmosphere tube furnace that can be set with 30 stages of heating and cooling programs, built-in PID automatic adjustment, with over temperature protection and alarm functions, allowing for unmanned operation and setting. The temperature control accuracy can reach up to ± 1 ° C, and the instrument's working temperature can reach 1600 ° C. The rotary vane pump equipped at the same time can perform simple pre vacuuming on the tube furnace. It can anneal and sinter samples under atmosphere protection or vacuum environment. Because the heat treatment temperature exceeds 1400 ℃, it belongs to a type of vacuum tube furnace. Click to consult online customer service for more product information!

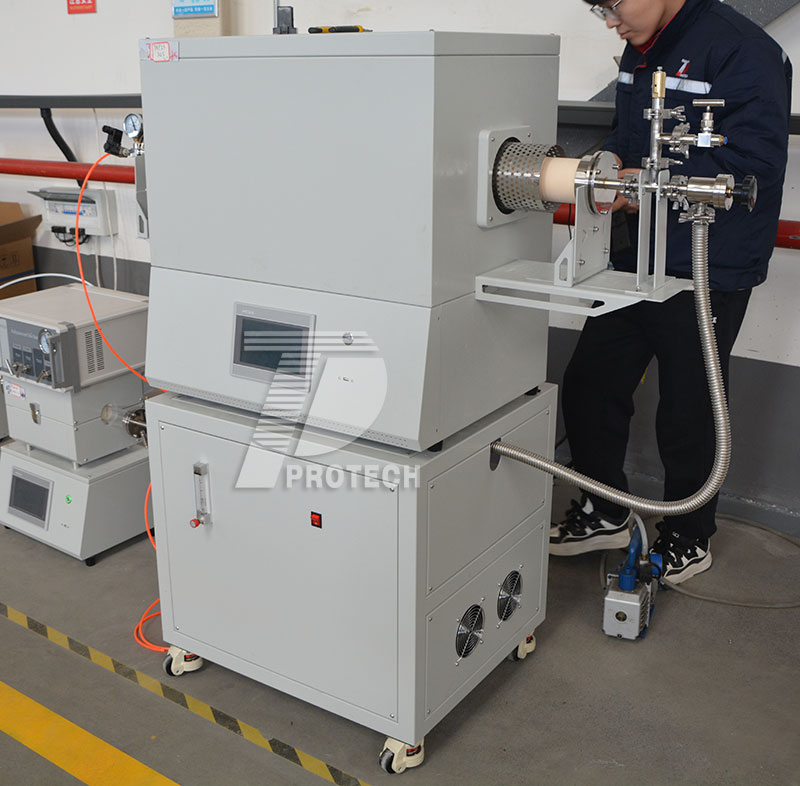

Actual photo of 1600 ℃ vacuum atmosphere tube furnace
Actual photo of 1600 ℃ vacuum atmosphere tube furnace


Product advantages:

1. The furnace is made of high-temperature resistant polycrystalline material, and the furnace tube is made of high-purity corundum tube, which is resistant to high temperature and corrosion, and can work stably at a temperature of 1600 degrees.
2. There are 30 programmable segments for precise control of heating rate, cooling rate, and residence time.
3. Equipped with built-in PID automatic adjustment function, with protection for overheating and thermocouple disconnection; Over temperature protection and alarm allow for unmanned operation.
4. Samples can be annealed and sintered under atmosphere protection or vacuum environment.


Technical parameters:

 Furnace
Display Touch Screen
Furnace Structure Double-layer housing, with a sliding rail
Cooling system Air-cooling system
Tube Material High Purity Alumina Tube
Tube Diameter Φ80mm(OD)
Heating zone length 400mm
Max Temperature 1700℃
Working Temperate. ≦1600℃
Temperature Control ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
● Over temperature protection and alarm allows for operation without attendant.
Chamber Material Alumina fiber
Heating Rate 0-1000℃---0-10℃/min
1000-1600℃---5℃/min
Temperature Control Accuracy ±1℃
Thermocouple B Type
Heating element MoSi2
Safety Device Over-temperature Alarm
Over-current protection
Thermocouple broken indication
Gas S Nitrogen Gas(25-250ml/min)
Power Supply 220V 50Hz
Max output power 6KW(Base on final design)
Vacuum Pump
Vacuum Pump
  1. DRV-10 rotary vacuum pump
  2. KF25 clamp and bellows are used to connect tube furnace and vacuum pump
  3. Pumping Speed: 2L/S
  4. Vacuum Level: -0.1mpa
  5. Mechanical gauge including.
  6. Manually Operation Mode.
Gas system
Gas System
  1. Equipped with float flow meter
  2. Gas Type: Nitrogen gas.
  3. Float Rate: 30-300ml/min
  4. Automatic air intake function: The system automatically starts air intake at the set temperature. Customers can set the air intake duration. The system automatically closes the valve when the air intake time is completed. The gas outlet is also designed with a mechanical pressure relief valve to prevent over pressure inside the furnace tube.
The above valves all use pneumatic valves, and the customer needs to configure an additional air compressor on site.
Warranty
Warranty One-year limited warranty with life time support.  (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products)
Free technical support Lifetime
After sales service
1. Our company provides a one-year warranty service for the supplied equipment (except for wearing parts and man-made damage ). During the warranty period, any equipment damage or failure caused by the equipment quality will be repaired free of charge. A life-time, high-quality maintenance services are still provided even the warranty expires
2. In case of equipment failure during the use of the equipment, the user can notify the maintenance needs by telephone, writing, fax, e-mail or other modes, and we will make a solution as soon as possible to ensure the normal operation of the equipment.
3. Our company provides free equipment operation training and simple troubleshooting and maintenance training. To ensure that the user can skillfully carry out standardized and safe operation of the product, can deal with general faults and routine maintenance and maintenance of the equipment, and ensure the normal use of the equipment.
4. Our company's technicians can provide door-to-door service (product installation and debugging, whole machine maintenance, technical explanation and operation guidance, etc.). Our company's technical consultants can answer customers' questions about technology and standard specifications and provide technical guidance at any time.
5. The company can provide transportation services, and the packaging methods are in accordance with standard safety packaging. Complete random technical information (user manual, warranty manual, related information and accessories, random tools, etc.).

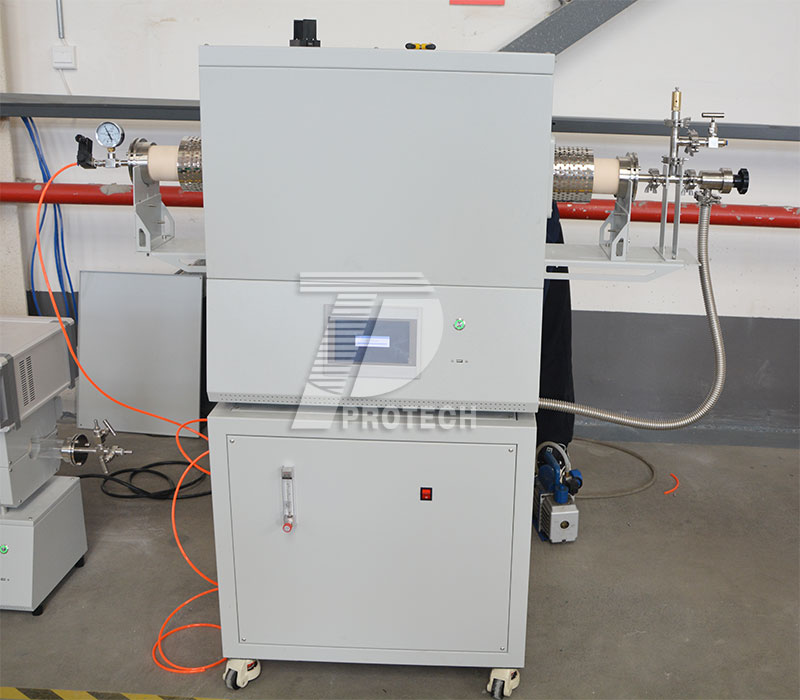

Actual photo of 1600 ℃ vacuum atmosphere tube furnace
Actual photo of 1600 ℃ vacuum atmosphere tube furnace

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
