Model：PT-TG1100-S60CK1
Description：The PT-TG100-S60CK1 touch screen high-temperature vacuum tube furnace is mainly used in fields such as crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protected sintering, vacuum coating, CVD experiments, and material composition determination, and is highly trusted by researchers in various fields.
The PT-TG100-S60CK1 touch screen high-temperature vacuum tube furnace can reach a maximum temperature of 1200 ℃ and can work continuously at a temperature of 1100 ℃. It can be evacuated and the furnace body adopts a double-layer shell structure, equipped with a cold air system to automatically cool the furnace shell temperature to a safe temperature. The furnace material has good insulation performance, high reflectivity, and balanced temperature field, making it an ideal heating equipment for laboratories and research institutions. Mainly used in fields such as crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protected sintering, vacuum coating, CVD experiments, and material composition determination, it is highly trusted by researchers in various fields. Click to view more vacuum tube furnaces!

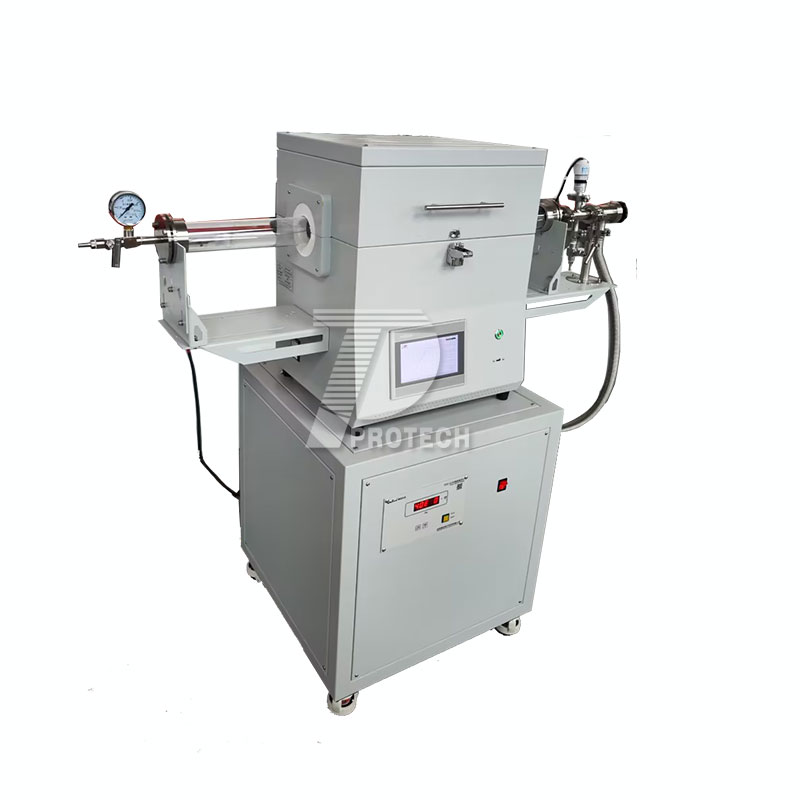

1200 ℃ Touchscreen High Temperature Vacuum Tube Furnace Actual Photo
1. Double layered shell installation with cold air system: The double-layer shell structure is equipped with an automatic cold air system to reduce the temperature of the furnace shell, ensuring safety and preventing scalding.
2. High purity alumina fiber furnace: High quality high-purity alumina polycrystalline fiber solidification furnace, with good material insulation performance, high reflectivity, and balanced temperature field.
3. The temperature control accuracy can reach ± 1 ℃: The temperature control system adopts PID regulation and can set 30 temperature rise and fall programs, with a temperature control accuracy of ± 1 ℃.
4. Full touch screen operation panel: With full touch screen operation, data is clear at a glance and can be exported as a table for easy analysis of experimental status.
| Model | PT-TG1100-S60CK1 |
| Furnace structure | double-layer shell structure, equipped with a cold air system for automatic cooling of furnace shell temperature |
| Furnace material | High quality high-purity alumina polycrystalline fiber solidification furnace formed by vacuum adsorption technology in Japan |
| maximum temperature | 1200℃ |
| Continuous operating temperature | ≤1100℃ |
| Heating rate | Recommended ≤ 10 ℃/min |
| Furnace tube material | high-purity quartz tube |
| Furnace tube size |
diameter: 60mm * length 1200mm, tube plug must be inserted before using the instrument to prevent thermal radiation (Can be customized according to customer needs) |
| Flange | Stainless steel sealed flange, easy to disassemble, with precision needle valve installed on the flange |
| Temperature control system |
The temperature control system adopts artificial intelligence regulation technology, with PID regulation and self-tuning functions 1. PID method is used to adjust temperature control, and 30 temperature rise and fall programs can be set. 2. Temperature control accuracy ± 1 º C 3. Equipped with over temperature protection and trip protection 4. The instrument has the function of temperature self-tuning |
| Heating element | Heating element |
| Temperature measuring element | N-type thermocouple |
| Import and export of gas | The flange contains vacuum connection ports and inlet and outlet ports |
| Ultimate vacuum degree | 10Pa |

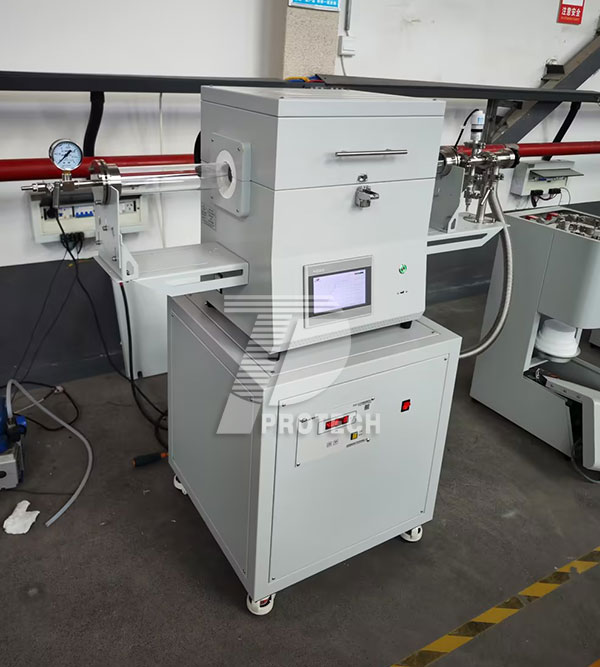

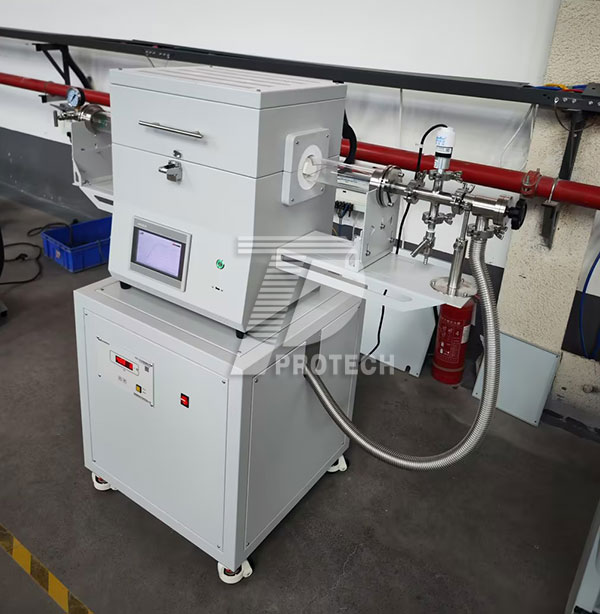

Realistic picture of touch screen high-temperature vacuum tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
