Model：PT-T1400-V60
Description：PT-T1400-V60 vulcanization bed vertical tube furnace is suitable for CVD process, such as silicon carbide coating, conductivity test of ceramic substrate, two-dimensional material growth, controllable growth of ZnO nanostructure, ceramic capacitor (MLCC) atmosphere sintering and other experiments.

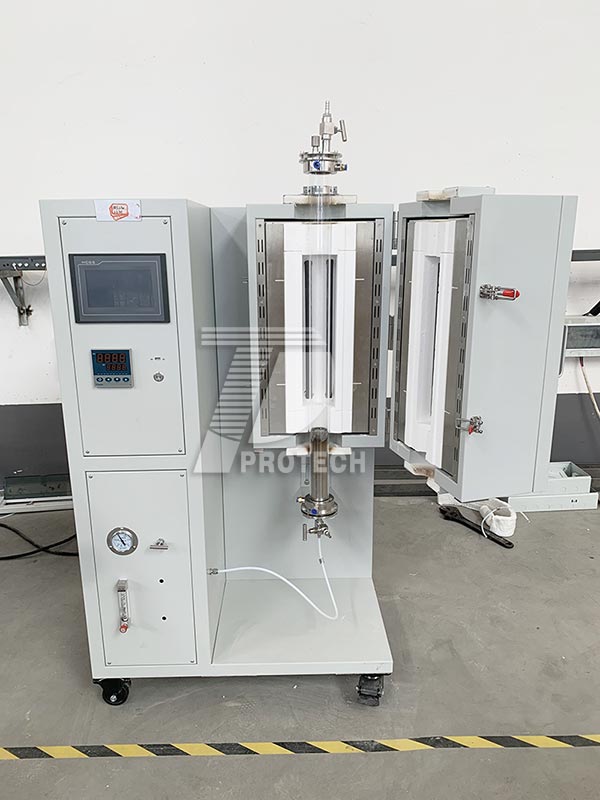

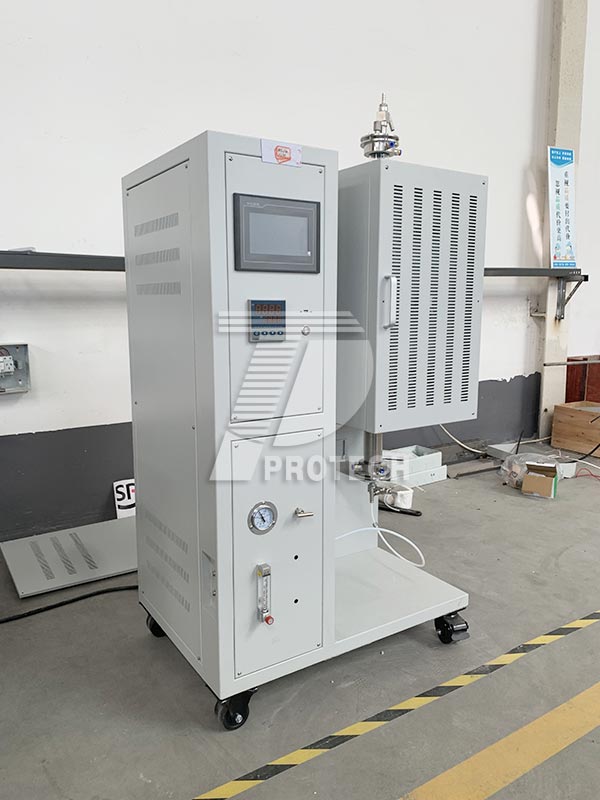

| Vertical fluidized bed tube furnace | |
| Model | PT-T1400-V60 |
| Heating zone length | 400mm |
| Furnace tube size | diameter 60*1000mm |
| Furnace tube material | High purity quartz tube |
| Working temperature | ≦1400℃ |
| maximum temperature | 1300℃ |
| Temperature measuring element | S Type thermocouple temperature measurement |
| Heating rate | 0-20ºC/min |
| Temperature Control System |
The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Adopt PID method to adjust temperature control, and can set 30 heating and cooling programs 2. Temperature control accuracy ±1ºC 3. With over-temperature protection and burnout protection 4. The instrument has the function of temperature self-tuning 5. Touch screen control, data can be stored and copied |
| Heating element | High temperature silicon carbide rod |
| Operating Voltage | AC 220V Simplex 50HZ |
| Maximum power | 5KW（Subject to actual power） |
| Furnace material | Using polycrystalline fiber furnace material, the material has good thermal insulation performance, high reflectivity and balanced temperature field |
| flange | Stainless steel vacuum flange, easy to disassemble, the lower flange is a water-cooled flange |
| sieve | 304 stainless steel screen, the hole is 0.2mm, the screen can be replaced |
| sealing system | The furnace tube and the flange are squeezed and sealed with O-rings, which are easy to disassemble, can be disassembled repeatedly, and have good air tightness. |
| flow meter | Two-way float flowmeter, controlled separately |
| fluidized area |
1. The reaction gas passes through the reaction zone evenly 2. The solid particles are suspended in the heating zone by the gas fed in 3. The furnace body is designed to be open. When the experiment is over, the furnace body can be opened, the quartz tube can be taken out, and the reacted particles can be taken out. Note: When the gas is injected to suspend the sample particles, the particles may pass through the heating zone because the gas flow is too large, so the gas flow should be adjusted according to the size of the particles during the experiment |
| Temperature measurement system | A temperature measuring hole is reserved on the upper flange, and a K-type thermocouple goes deep into the tube to display the temperature in the tube in real time, and the position of the thermocouple can be moved |
| shell structure | Double shell structure, open type |
| Furnace structure | Vertical structure, with wheels on the bottom, easy to move |
| Standard accessories | 1 pair of sealing flanges, 1 quartz tube, 4 sealing rings, 1 pair of high-temperature gloves, 1 crucible hook, 1 hex wrench for disassembling the flange, 1 warranty card manual |
