Model：PT-T1300-L6018LK-4L2Z
Description：Mainly used in college laboratories, industrial and mining enterprise laboratories, high, medium and low temperature CVD processes, such as organic matter pyrolysis (or cracking), development of carbon nanotubes, crystalline silicon substrate coating, metal material diffusion Welding and heat treatment in vacuum or atmosphere, etc.
PT-T1300-L6018LK-4L2Z mainly used in college laboratories, industrial and mining enterprise laboratories, high, medium and low temperature CVD processes, such as organic matter pyrolysis (or cracking), development of carbon nanotubes, crystalline silicon substrate coating, metal material diffusion Welding and heat treatment in vacuum or atmosphere, etc.Belongs to a type of vertical tube furnace.

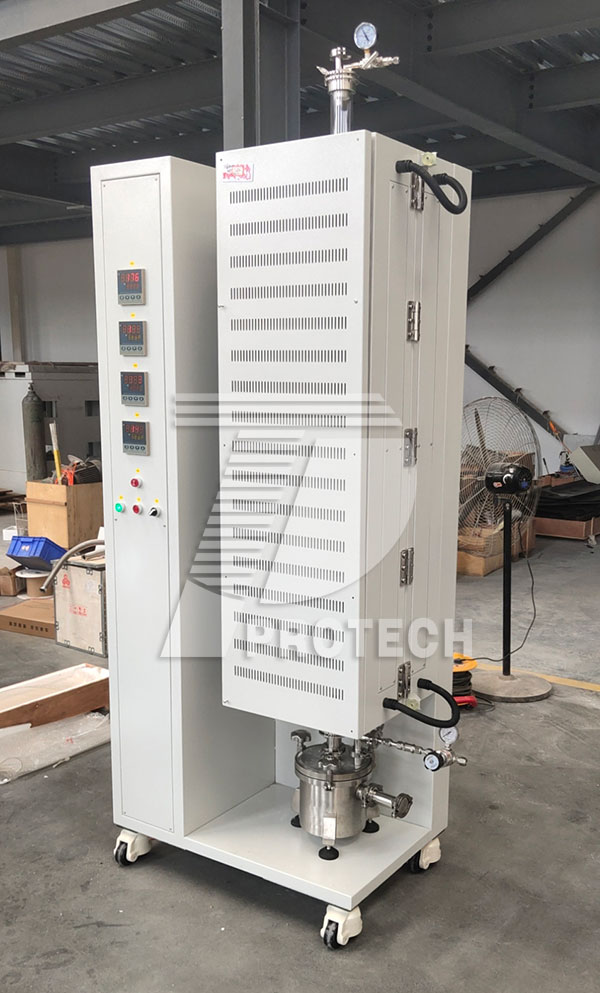

Actual photo of high-temperature vertical tube furnace
1.Upright furnace tube: The furnace body and furnace tube are vertical, and the fluidized bed design allows the reaction material to pass through the reaction zone smoothly.
2.Safety and anti-scalding: The furnace body adopts a double-layer structure, the surface temperature of the shell is low, and safety accidents such as scalding are not easy to occur.
3.Energy-saving furnace: The furnace is made of high-purity polycrystalline alumina ceramic fiber material, with high reflectivity, environmental protection and energy saving, balanced temperature field, and flexible temperature control.
4.Precise temperature control: Use S-type thermocouple and AL artificial intelligence regulator 518P temperature controller to automatically control temperature, with high temperature control accuracy.
5.Vacuum atmosphere: This furnace type can be evacuated (mechanical pump or vacuum unit can be selected according to the needs of vacuum degree), and can be filled with various reaction atmospheres (micro-positive pressure).
| Name | High temperature vertical tube reactor |
| Model | PT-T1300-L6018LK-4L2Z |
| Working temperature | ≤1300℃ |
| shell structure | Double layer structure electrostatic spray |
| Furnace material | Using high-purity polycrystalline alumina ceramic fiber material, the material has good thermal insulation performance, high reflectivity, balanced temperature field, and strong resistance to thermal expansion and contraction. |
| Heating element | High quality straight silicon carbide rod |
| heating rate |
room temperature-1000℃：≤10℃/min 1000-1200℃：≤5℃/min 1200-1300℃：≤2℃/min |
| Temperature Control System | PID mode adjustment 30-segment programmable automatic control |
| Temperature control protection | With over temperature and broken couple alarm function |
| Temperature control accuracy | ± 1℃ |
| Temperature measuring element | S-type platinum-rhodium thermocouple temperature measurement |
| heating area | 4 temperature zones, 300+300+300+300mm, total heating zone length 1200mm, each temperature zone can be controlled separately |
| furnace tube | Corundum furnace tube, Φ60*1800mm (actual length may vary according to design) |
| How to open the door | front side opening |
| Feeding method | top feed |
| Flange Design |
Top flange: set feed inlet, air inlet, gas dispersion device and mechanical vacuum pressure gauge Bottom flange: KF port is connected to self-made cyclone separator, exhaust pipe is connected to safety pressure relief valve and 2-stage dust filter |
| Operating Voltage | AC3 80V 50 Hz |
| Maximum power | About 25KW (for reference only, the actual power needs to be determined according to the design) |
| Provide related accessories | 1 corundum tube, 1 set of pipe plugs, 1 pair of high temperature gloves, 1 crucible hook, 1 hexagon wrench, 1 certificate, warranty card and manual |
| Precautions |
The pressure in the furnace tube should not be higher than the normal atmospheric pressure 0.02MPa When gas is introduced into the furnace tube, a pressure reducing valve should be installed on the gas cylinder, and the range of the pressure reducing valve should be established as 0.01MPa-0.1MPa, it will be more accurate and safe to use For the sample heating experiment, it is not recommended to close the exhaust valve and the intake valve at the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you need to pay attention to the reading of the pressure gauge. If the pressure reading is greater than 0.02MPa, you must open the gas relief valve immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.) When the temperature is higher than 900℃, the furnace tube cannot be in a vacuum state, and the air pressure in the furnace tube must be equal to the atmospheric pressure and kept at normal pressure |

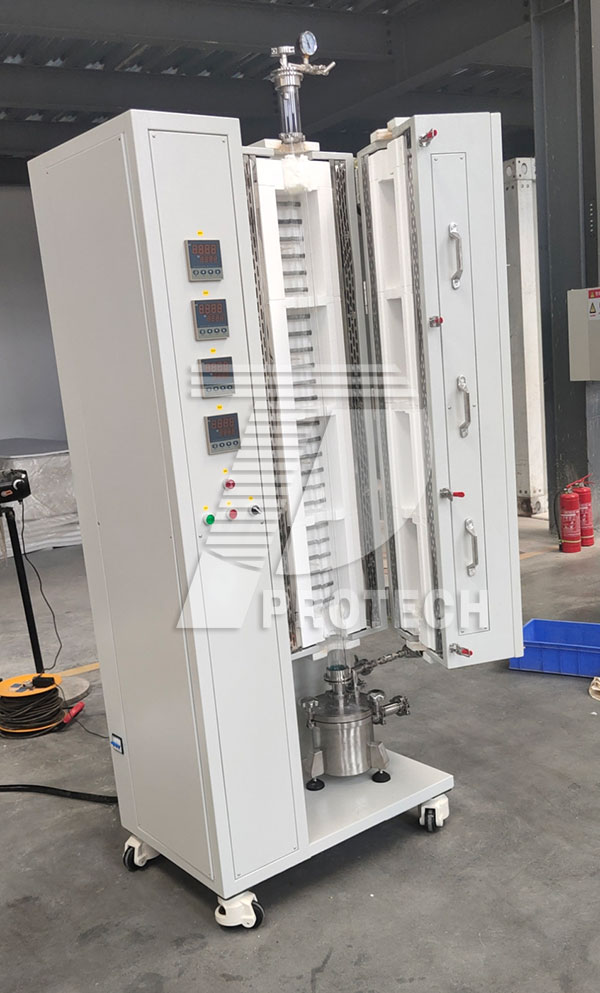

Actual photo of high-temperature vertical tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
