Model：PT-T1200-V3Z1
Description：This vertical tube furnace synthesis gas heat treatment system is a customized product for customers, mainly used for gas pyrolysis treatment of mixed gases. The equipment can be gradually heated under the action of a certain catalyst, leaving only methane, hydrogen, etc. After passing through the combustion device, a chemical reaction occurs to remove unstable gases.
This vertical tube furnace synthesis gas pyrolysis treatment system is customized for customers. Its principle is a device that is harmful or wants to react the mixed gas at a certain temperature or catalyst state, decompose it into harmless or necessary gas, and is mainly used for gas pyrolysis treatment of mixed gas. The equipment can be gradually heated under the action of a certain catalyst, leaving only methane, hydrogen, etc. After being processed by a combustion device, it can handle harmful gas tail gas, etc. It belongs to a type of vertical tube furnace.
Vertical tube furnace synthesis gas pyrolysis system
| Model | PT-T1200-V3Z1 | |

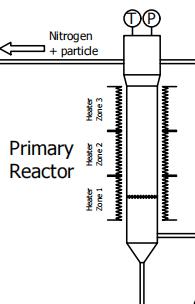

| Part I Primary Reactor | ||
| Structure | Split tube furnace | |
| Tube material | 310S | |
| Sealing |
Reactor top with clamp; Silicone gasket&flange with grove for top lid; Reactor outlet with flange and groove+silicone gasket, clamp; |
|
| Heating element | Resistance wire with Mo | |
| Refractory material | Semi-cylinder ceramic fiber | |
| Max. working Temperature | 1000℃ | |
| Temperature sensor type | Three K type thermocouples | |
| Temperature Control |
Three temperature controllers to control each zone separately 30 steps programmable PID automatic control Over-temp protection |
|
| Heating Rate | 0~20℃/min (suggestion: ≤10℃) | |
| Temperature Accuracy | +/-1℃ | |
| Max. Heating Power | 40 KW(specific according to design) | |

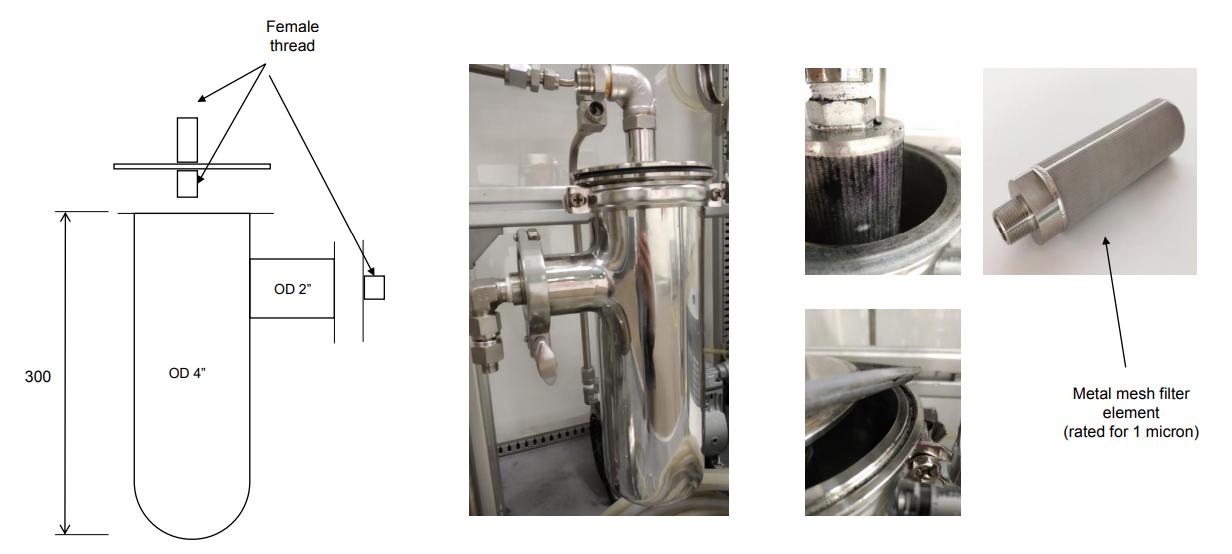

| Part II Particle filter | ||
| Particle filter 1 and 2 | Metal mesh filter element (rated for 1 micron) | |
| Particle filter 3 | Metal mesh filter element (rated for 1 micron) | |

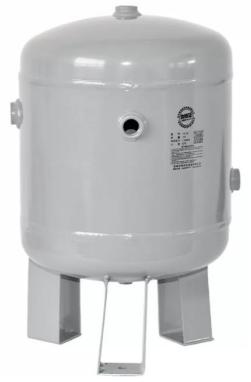

| Part III Gas Buffer Tank | ||
| Volume | Stainless steel | |
| Pressure |
Analog pressure gauge max. 6-10 bar Pressure sensor up to 6-10 bar |
|

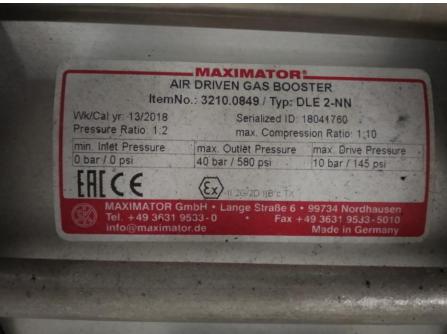

| Part IV Air driven gas booster | ||
| Max. Drive pressure | 10 Bar/145psi | |
| Max. Outlet pressure | 40 Bar/580psi | |

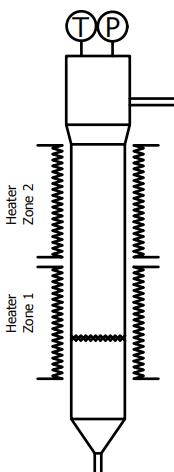

| Part VI Secondary Reactor | ||
| Structure | Split tube furnace | |
| Tube material | 310S | |
| Sealing |
Reactor top with clamp; Silicone gasket&flange with grove for top lid; Reactor outlet with flange and groove+silicone gasket, clamp; |
|
| Heating element | Resistance wire with Mo | |
| Refractory material | Semi-cylinder ceramic fiber | |
| Max. working Temperature | 1000℃ | |
| Temperature sensor type | Two K type thermocouples | |
| Temperature Control |
Two temperature controllers to control each zone separately 30 steps programmable PID automatic control Over-temp protection |
|
| Heating Rate | 0~20℃/min (suggestion: ≤10℃) | |
| Temperature Accuracy | +/-1℃ | |
| Part VI Afterburner | ||
| ... | ||
| Whole system with stainless steel frame | ||

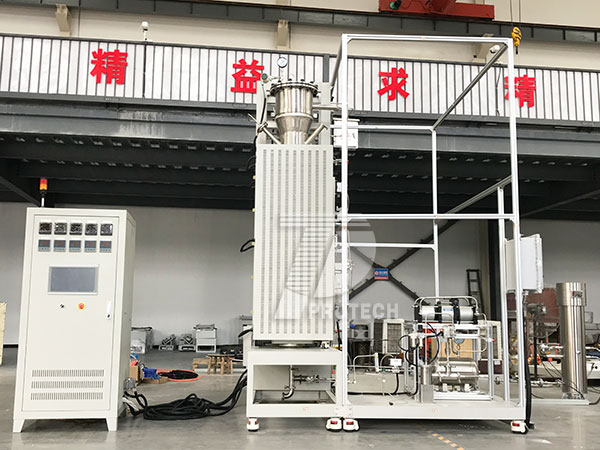

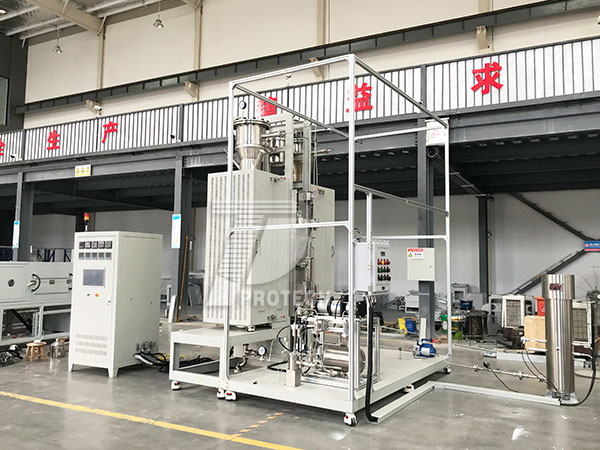

Vertical tube furnace synthesis gas pyrolysis system
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
