Model：PT-TL1200-S80LK3
Description：The PT-TL1200-S80LK3 vertical fluidized bed tube furnace is equipped with a set of stainless steel vacuum flanges with sealing rings, and the flanges are equipped with mechanical pressure gauges, with reserved inlet and outlet ports.
The PT-TL1200-S80LK3 vertical fluidized bed tube furnace is equipped with a set of stainless steel vacuum flanges with sealing rings, and the flanges are equipped with mechanical pressure gauges, with reserved inlet and outlet ports. The top is a quick connect flange and is equipped with a thermocouple hole for temperature measurement inside the tube. The bottom flange can be placed on an electronic scale to weigh the furnace tube, flange, and materials inside the tube. Equipped with an electronic differential pressure gauge, the pressure value between the top and bottom flanges can be measured.it belongs to a type of vertical tube furnace.

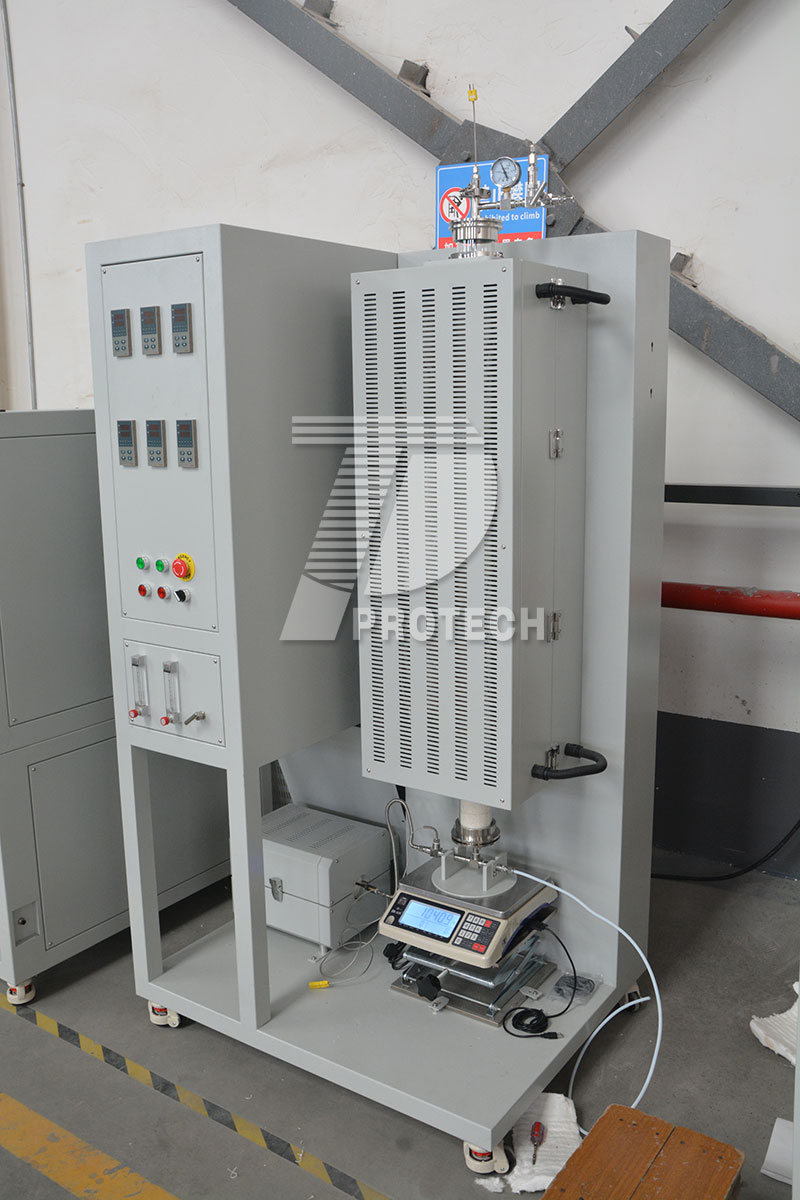

Actual photo of a 3-temperature zone fluidized bed vertical tube furnace
| Product name | Fluidized bed tube furnace |
| Model | PT-TL1200-S80LK3 |
| Hearth mode | Open |
| Display mode | LED |
| Chamber material | Alumina fiber |
| Heating element | High quality alloy heating wire |
| Max.temperature | 1200℃ |
| Working temperature | ≤1100℃ If metal cans are used in the furnace, please lower the temperature according to the actual situation. |
| Heating rate | ≤10℃/min |
| Heating zone | Three temperature zones (do not separate the temperature zones) Independent temperature control for each temperature zone |
| Heating length | 900mm |
| Furnace tube material | High purity quartz tube |
| Furnace tube size | 80mm*approximately 1500mm (subject to the actual supply) Weld the custom perforated plate at the proper position in the tube |
| Sealing method |
A set of stainless steel vacuum flanges includes a sealing ring, the flange is equipped with a mechanical pressure gauge, and an air inlet and an air outlet are reserved. The top is a quick-connect flange and equipped with a thermocouple hole for temperature measurement in the pipe The bottom flange can be placed on the electronic scale to weigh the furnace tube, flange and materials in the tube Equipped with an electronic differential pressure gauge, the pressure value between the top and bottom flanges can be measured, and the pressure difference range is ±10Kpa The bottom and top air outlets of the flange are equipped with temperature measuring thermocouples and display instruments |
| control mode | Intelligent PID multi-segment program temperature control |
| Temperature curve | Multi-segment "time-temperature curve" can be set arbitrarily |
| Alarm method | With over temperature and broken couple alarm |
| Temperature measuring element | K-type thermocouple, add a thermocouple for temperature measurement in the tube |
| Power supply | 220V 50Hz |
| Heating power approx. | 5KW(subject to actual needs) |
|
Weighing system: it can weigh the materials on and off the electronic scale in real time There is a communication interface for later customer use Communication interface to be confirmed |
|
| The maximum range | about 30 KG |
| Gas preheating device: a gas preheating device is installed under the right side of the fluidized bed tube furnace, which can heat the gas and directly pass it into the fluidized bed furnace | |
| Max.temperature | 1000℃ |
| Working temperature | 900 ℃ and below The gas outlet is connected with a metal pipe and equipped with a hose |
| Rotameter |
Install 2 flowmeters with a range of 0.6-6L/min at the inlet end, and the gas is nitrogen and carbon dioxide. The air intake can be manually adjusted according to the experimental process. |
| Special requirements |
It is equipped with a sealed metal tank made of 310S material, the size is about 60*inner diameter 50*420mm (the specific size needs to match the internal size of the straight-through quartz tube) The top cover of the metal tank has 1 inlet pipe with valve, 1 outlet pipe with valve, and 1 thermocouple hole for temperature measurement in the pipe Equipped with a device that can lift the metal tank from the bottom flange to the constant temperature zone |

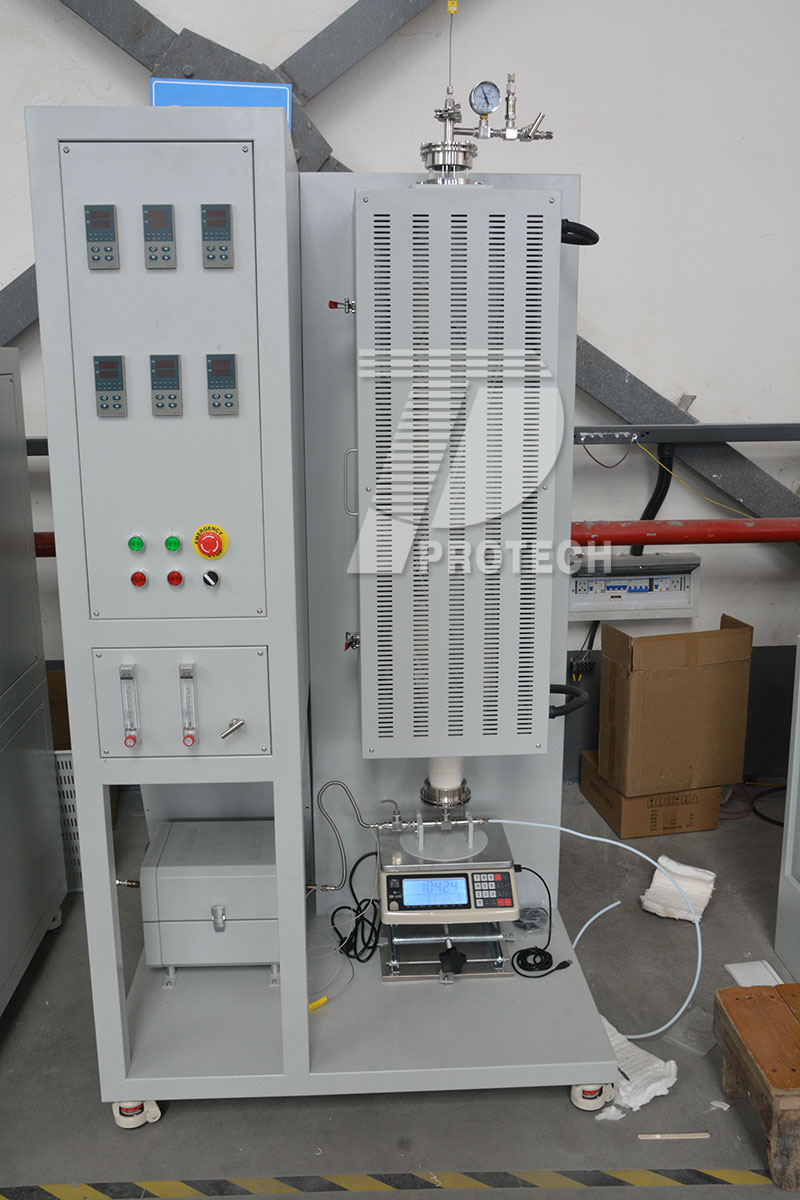

Actual photo of a 3-temperature zone fluidized bed vertical tube furnace
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
