Model：PT-TL1200-S80CK6
Description：The furnace of the large vertical tube furnace with preheating adopts a lightweight ceramic fiber refining furnace, which is easy to open by sliding left and right and can be sintered under various inert atmosphere conditions; The heating element adopts high-quality alloy heating wire, with fast heating rate, high temperature resistance, oxidation resistance, corrosion resistance, and fast temperature rise; Intelligent PID 30 segment temperature control with high precision.
The PT-TL1200-S80CK6 high-temperature vertical tube furnace is mainly composed of a material preheating furnace, a reaction furnace, a gas preheating furnace, a control cabinet, a gas supply system, a feeding device, and a receiving device. The furnace adopts a lightweight ceramic fiber refined furnace, which is easy to open by sliding left and right, and can be sintered under various inert atmosphere conditions; The heating element adopts high-quality alloy heating wire, with fast heating rate, high temperature resistance, oxidation resistance, corrosion resistance, and fast temperature rise; Intelligent PID 30 segment temperature control with high precision.Click to view more vertical tube furnaces!

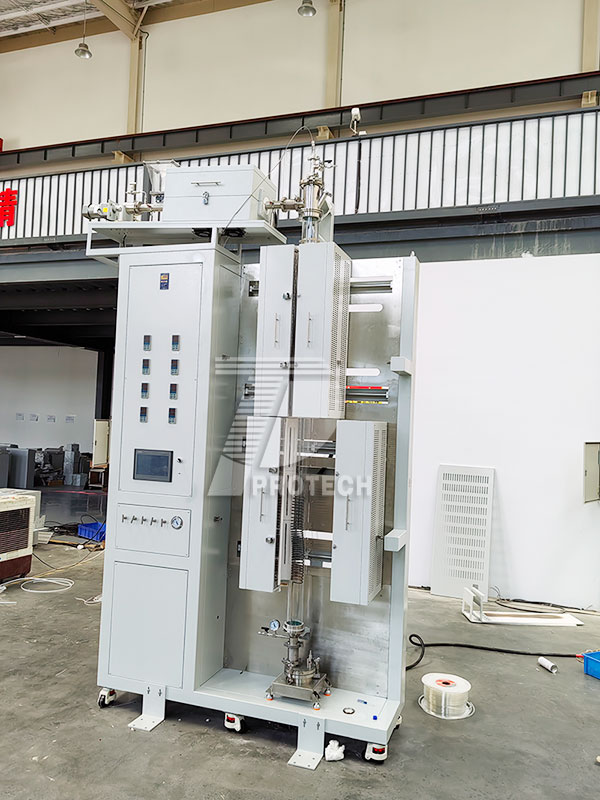

Real time photo of a large vertical tube with preheating
1. Manual vertical slide opening structure: The manual vertical slide opening structure allows for independent opening of the reactor and gas preheating furnace, making it convenient to retrieve samples.
2. It can achieve complex heat treatment processes: six temperature zones are independently controlled, which can form temperature gradients or longer constant temperature zones within the heating zone.
3. PID intelligent temperature control regulation: The PID method adjusts 30 programmable segments and can set multiple temperature rise and fall programs, with over temperature and disconnection alarm functions.
| Model | PT-TL1200-S80CK6 | |
| Part 1: Material preheating furnace + feeding device | ||
| Structure | Double-layer shell, manual opening structure | |
| Working temperature | ≤1000℃ | |
| Temperature Control System | PID mode adjustment 30-segment programmable automatic control | |
| Heating element | High quality resistance wire | |
| Furnace tube material | High quality metal tube | |
| Quartz furnace tube size approx. | Φ80mmX1000mm(Can be customized according to customer needs) | |
| Temperature control protection | With over-temperature and broken alarm function | |
| Heating rate | 0~10 ℃ / minute Adjustable | |
| Temperature measuring element | N-type thermocouple temperature measurement | |
| Sealable feeding device | Sealed feed bin: The upper cover is easy to open, with a volume of about 2L and a reserved air inlet. | |
| Part 2: Reactor + Gas Preheater | ||
| structure | Double-layer shell, manual vertical slide rail opening structure, reaction furnace and gas preheating furnace can be opened independently. | |
| Max.temperature | 1200℃ | |
| Temperature Control System | PID mode adjustment 30-segment programmable automatic control | |
| Heating element | High quality resistance wire | |
| Furnace tube material | High quality custom shaped quartz tube | |
| Quartz furnace tube size approx. | Outside diameter 100mmX2500mm (Can be customized according to customer needs) | |
| Heating zone |
about 1800mm Six temperature zones, each zone has independent temperature control |
|
| Temperature control protection | With over-temperature and broken alarm function | |
| Heating rate | 0~10 ℃ / Minutes Adjustable | |
| Temperature measuring element | N-type thermocouple temperature measurement | |
|
Sealing system |
The top is a double-layer water-cooled sealing flange with automatic feed port, manual feed port, air intake port and exhaust port for inserting thermocouple or air intake rod with adjustable extension. The bottom sealing flange has an air inlet, and the bottom of the flange is connected to the sealed receiving bin, and the receiving bin has an exhaust port reserved. |
|
| Gas can pass | Any inert gas to slightly positive pressure (less than 0.02MPA) | |
| Gas supply system: 4-way mass flow control system and temperature control system integrated on one touch screen | ||
| Working temperature | 5--45℃ | |
| Gas channel |
Can connect 4 gas sources at the same time. Note: It is recommended to use inert gas. If dangerous gas is used, please prepare relevant safety devices by the purchaser |
|
| Flow Meter | Mass flowmeter | |
| A channel range | 20SLM | |
| B channel range | 20SLM | |
| C channel range | 20SLM | |
| D channel range | 40SLM | |
| Gas line pressure | -0.1～0.15 MPa | |
| Accuracy | ±1.5%F.S | |
| Shut-off valve | Stainless steel | |
| Gas connection pipe | 1/4 stainless steel pipe | |

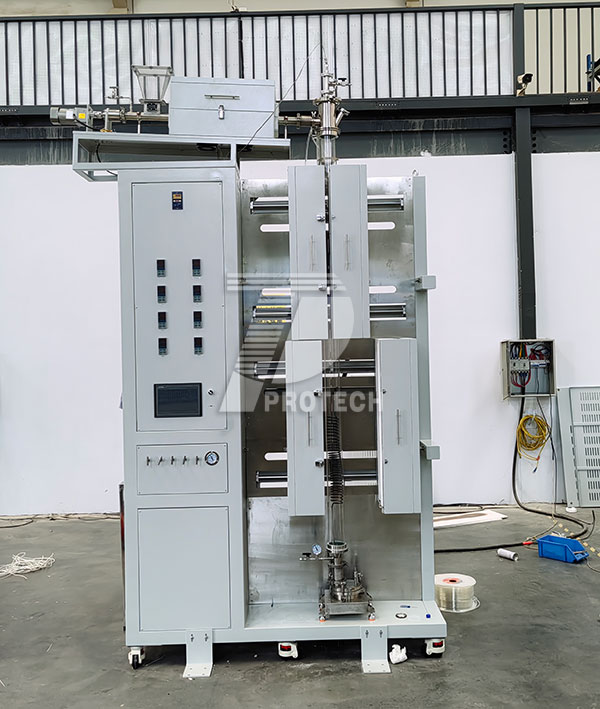

Real time photo of a large vertical tube with preheating
