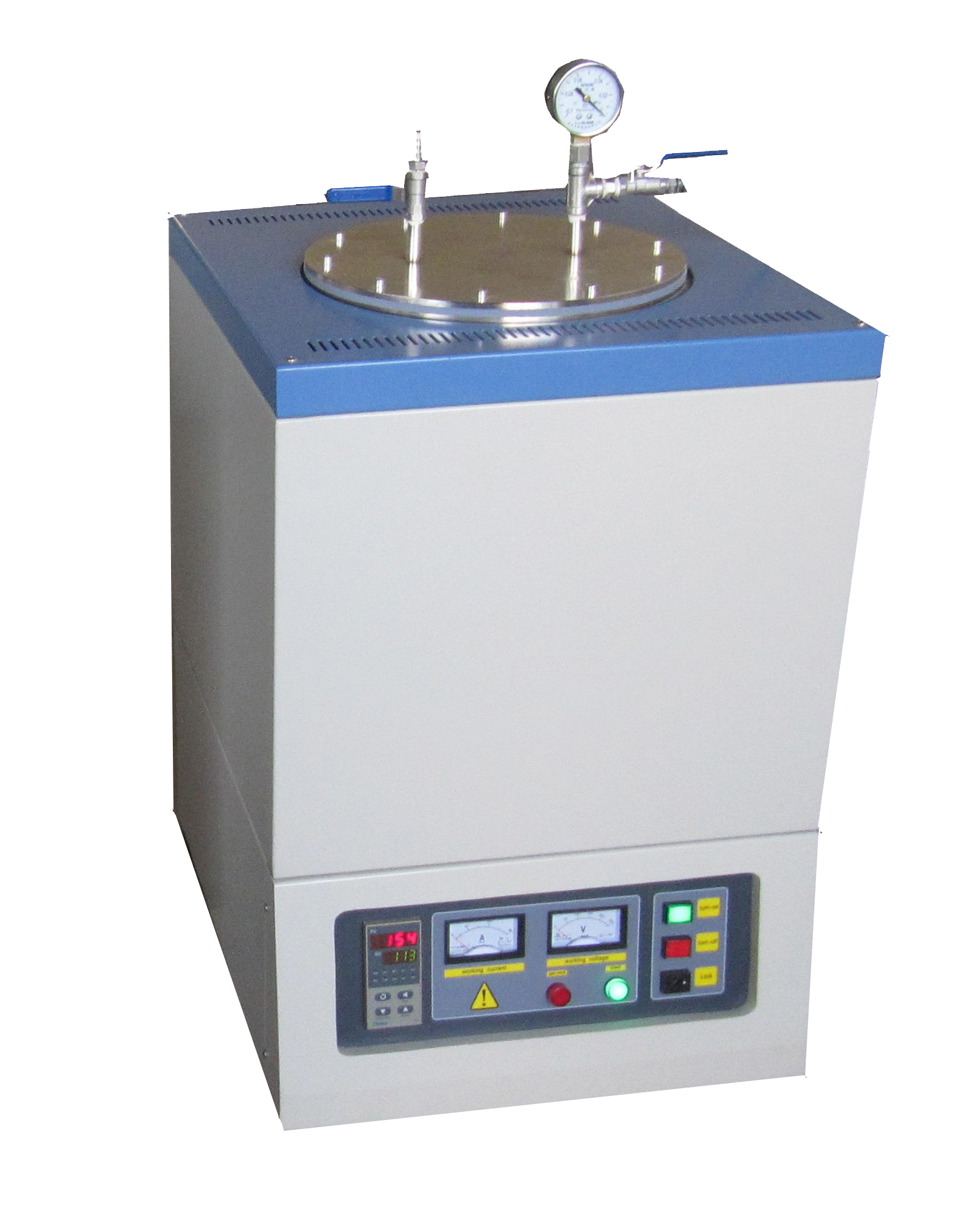

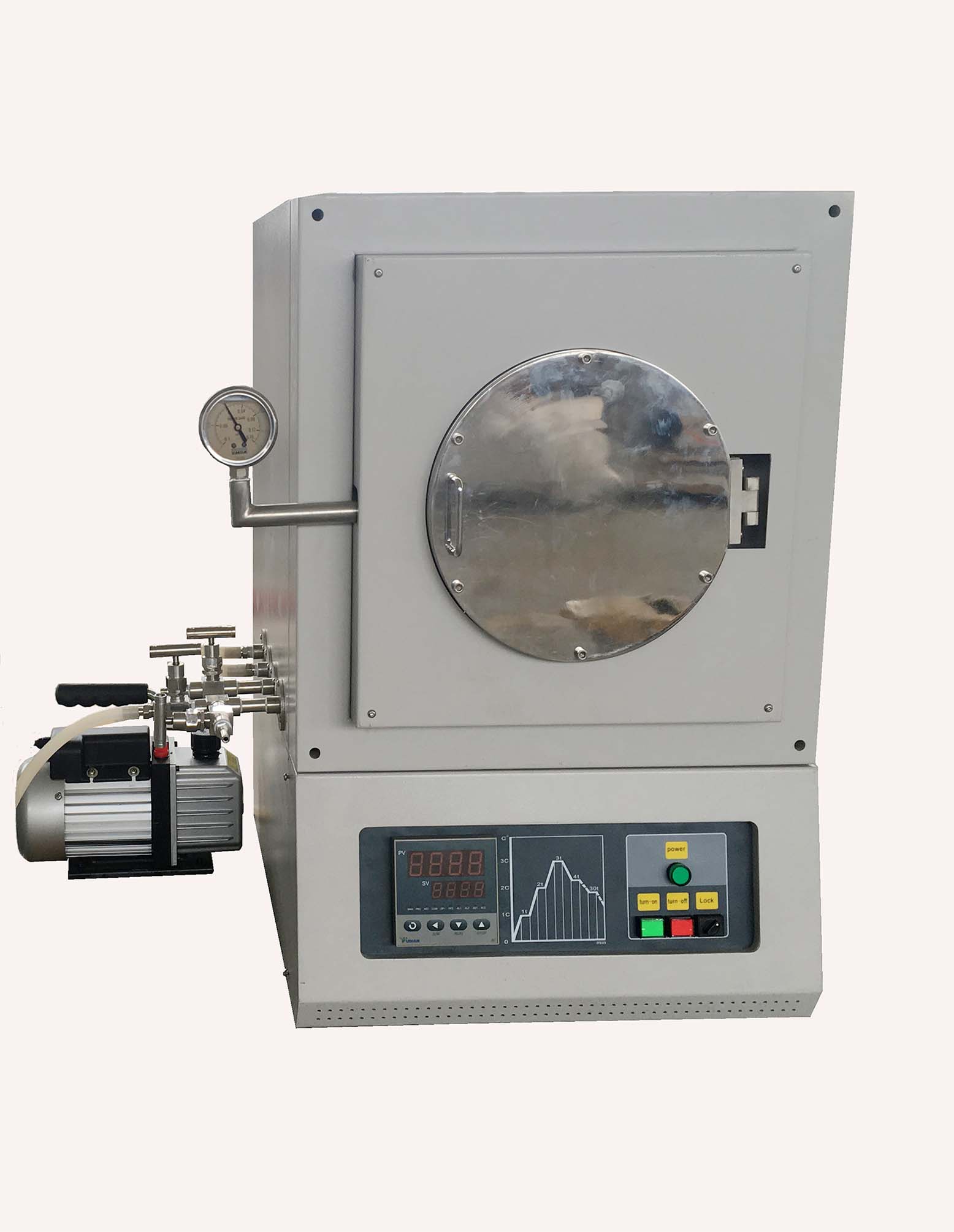

electric crucible furnace used sintering for sale

electric crucible furnace used sintering for sale

Model:PT-1200C

Description:Chamber heating muffle furnace used in universities, research institutes, industrial and mining enterprises for high temperature sintering , materials sintering,

Inquire Now

Introduction:

Features of electric crucible furnace:

1. A low temperature around the furnace, smoke less, a good operating environment;
2. Simple operation process
3.Uniform heating temperature, small burning injury, uniform metal components, quality casting;
4.Warming fast, easy temperature control, high production efficiency.
5. Real time temperature chart display can dynamic monitor the heating process.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
electric crucible furnace used sintering for sale       electric crucible furnace used sintering for sale

Technical parameters of electric crucible furnace:

Model PT-1200C Crucible furnace
Limiting temperature 1200°C
Working temperature ≤1150°C
Temperature accuracy +/- 1 °C
Furnace structure Double layer steel structure with air cooling
Chamber material High purity fiber alumina insulation
Chamber size ø100×150mm
Temperature controller PID automatic control and auto-tune function;
30 programmable segments for precise process;
Built in protection for over-heated and broken Thermal couple.
 Heating element 1300oC grade Fe-Cr-Al Alloy doped by Mo
Rated power 2.2 KW
Working voltage AC 110-480V 50-60Hz
 Warranty 12 month (exclusive wearing part)
Crucible furnace can be customized according to customers’requirements.

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
