PECVD (Plasma Enhanced Chemical Vapor Deposition) is one of the main equipment in photovoltaic manufacturing, widely used in the preparation process of solar panels. Let's delve into PECVD in detail below!

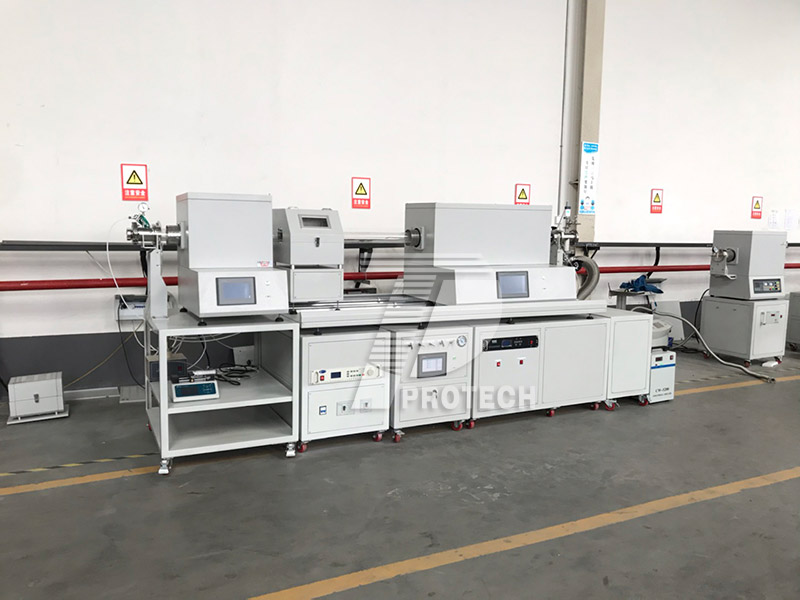

Commonly used PECVD electric furnaces (click on the image to view product details)

1. Technical principles
PECVD technology is a low-pressure environment that triggers glow discharge on the cathode (sample tray) of the process chamber through low-temperature plasma, and then uses this discharge effect (or supplemented with a heating device) to heat the sample to a preset temperature. Subsequently, an appropriate amount of process gas is introduced, which undergoes complex chemical and plasma reactions under the action of a radio frequency electric field, ultimately depositing a solid thin film on the surface of the sample.

2. Technical features
Low temperature deposition: PECVD can efficiently deposit thin films at low temperatures, making it suitable for applications that require high thermal stability of substrate materials.
High purity thin film: By finely controlling the composition of the reaction gas and process parameters, PECVD can generate thin films with good uniformity and high purity.
Multi material deposition capability: This technology can deposit various materials such as SiO2, Si3N4, Al2O3, etc., expanding the application range of photovoltaic cells.
Surface modification: Using plasma to achieve changes in the hydrophilicity, hydrophobicity, and other properties of the material surface.
Precise control of thin film deposition: PECVD technology can achieve precise control of the composition, structure, and properties of thin films, meeting the needs of different application scenarios.

3. Application in Photovoltaic Manufacturing
Anti reflection film: Deposition of SiNx anti reflection film on crystalline silicon solar cells to enhance photoelectric conversion efficiency and protect the cells. By adjusting the thickness and refractive index of SiNx film, the principle of light interference is utilized to achieve anti reflection effect.
Passivation effect: The hydrogen element in SiNx thin film effectively passivates dislocations and dangling bonds on the silicon surface, enhances carrier mobility, and protects the silicon wafer from contamination.
Transparent conductive film: PECVD is also used to prepare transparent conductive films, such as ITO (indium tin oxide) thin films, which play a role in conductivity and transparency in photovoltaic modules.

4. Technical advantages
Improving efficiency: PECVD technology helps to enhance the photoelectric conversion efficiency of photovoltaic cells by optimizing the deposition conditions and performance of thin films.
Cost reduction: The efficient deposition rate and uniformity reduce material waste and lower production costs.
Environmentally friendly: The low-temperature deposition process reduces energy consumption and emissions of harmful substances.

5. Development Trends
With the continuous growth of global demand for clean energy, the application of PECVD technology in photovoltaic manufacturing will become increasingly widespread. Meanwhile, with the continuous advancement and innovation of technology, PECVD equipment will become more efficient, intelligent, and environmentally friendly, injecting new impetus into the development of the photovoltaic industry.

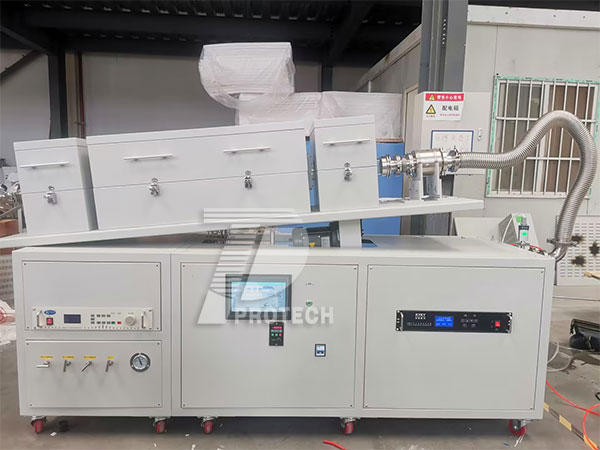

PECVD equipment that can rotate and tilt (click on the image to view product details)

So, as one of the core equipment in photovoltaic manufacturing, the importance of PECVD is self-evident. Through continuous optimization and innovation, PECVD technology will make greater contributions to the sustainable development of the photovoltaic industry.Click to learn more PECVD devices! Or click on online customer service to learn more about product information!
