RTP Rapid Thermal Processing Furnace can be designed with a sliding track. This design allows the furnace body to move on the slide rail to achieve rapid cooling effect. Let's take a look at the detailed introduction of the RTP fast annealing furnace below!

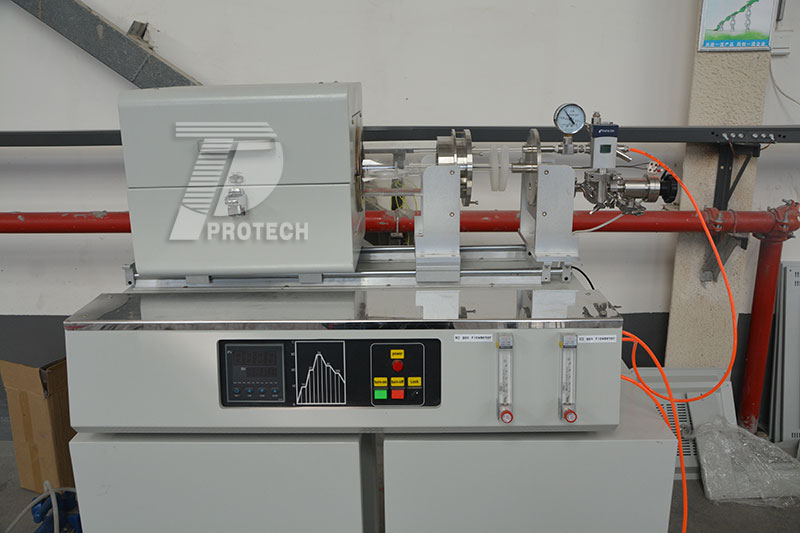

A commonly used slide type RTP fast annealing furnace (click on the image to view product details)
1.Principles of Slide Design
The RTP rapid annealing furnace is designed with a slide rail, allowing the furnace body to move on the slide rail. After the sintering process is completed, the furnace body can quickly move to room temperature, thereby achieving rapid cooling in its physical state. This design not only improves the cooling speed, but also ensures rapid cooling of the sample, which is beneficial for maintaining the performance of the material.
2.Characteristics of Slide Design
Double layer shell structure: The furnace body adopts a double layer shell structure and is equipped with an air cooling system, further improving the cooling efficiency.
Sliding rail and limit switch: Limit switches are installed at both ends of the sliding rail to ensure that the furnace body does not exceed the set range during movement, thereby ensuring the safety and stability of the equipment.
Automated control: The movement of the furnace body can be automatically controlled by temperature control instruments. After the temperature program runs, the furnace body can slide from one end to the other.
3.Application and advantages
The slide design of RTP rapid annealing furnace makes it widely used in new material process fields such as semiconductor, nanotechnology, carbon fiber, graphene growth, etc. At the same time, it is also applicable to process experiments such as atmosphere sintering, vacuum annealing, atmosphere annealing, and CVD that require a relatively fast heating and cooling speed. Its advantages lie in:
Rapid temperature rise and fall: Through infrared lamp heating and slide design, rapid heating and cooling are achieved, improving production efficiency.
Sample protection: The slide design allows the sample to cool quickly during the cooling process, which is beneficial for protecting the performance of the sample.
Easy to operate: The furnace body is automatically moved and equipped with over temperature protection and leakage protection functions, ensuring the safety of equipment use.
Overall, the RTP rapid annealing furnace can be designed with a sliding track, which not only improves the cooling speed and production efficiency of the equipment, but also ensures the safety and performance protection of the samples.Click to learn more tube furnaces! Or click on online customer service to learn more about product information!
