When choosing a vacuum ceramic sintering electric furnace, multiple key factors need to be considered to ensure that the selected equipment can meet specific process and production requirements. Let's take a detailed look at how to choose below!

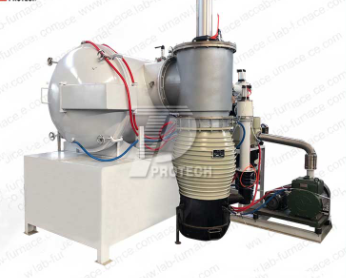

Vacuum ceramic sintering electric furnace (click on the image to view product details)
1. Furnace type and structure
Furnace type: Single chamber, horizontal structure is usually chosen, which is easy to operate and maintain.
Work area size: determined based on the size and quantity of sintered workpieces, ensuring that the workpieces can be placed reasonably and avoiding overcrowding that affects the sintering effect.
2. Heating method and temperature range
Heating methods: Common methods include resistance heating, graphite heating, etc. Choose the appropriate heating method based on the characteristics and process requirements of the sintered material.
Maximum temperature: Ensure that the maximum temperature of the electric furnace can meet the requirements of the sintering process, for example, for certain ceramic materials, it may be necessary to reach a temperature of 1600 ℃ or higher.
3. Temperature uniformity
Temperature uniformity: It is an important indicator for evaluating the performance of electric furnaces, directly affecting the quality and consistency of sintered products. Choosing an electric furnace with good temperature uniformity can reduce thermal stress during the sintering process and improve the product qualification rate.
Temperature control accuracy: A high-precision temperature control system can ensure stable sintering process within the set temperature range, generally requiring temperature control accuracy within ± 1 ℃.
4. Vacuum performance
Ultimate vacuum degree: It reflects the vacuum pumping ability of the electric furnace, generally requiring a pressure of 6 × 10-4 Pa or below to meet the requirements for low oxygen partial pressure during ceramic sintering process.
Working vacuum degree: The vacuum degree that needs to be maintained during the actual working process, usually determined according to the sintering process.
Pressure rise rate: Refers to the rate at which the pressure inside the vacuum chamber rises after the electric furnace stops vacuuming. The lower the pressure rise rate, the better to ensure the stability of the sintering process.
5. Heating rate and cooling rate
Heating rate: Rapid heating can shorten the sintering cycle and improve production efficiency. However, a rapid heating rate may lead to an increase in thermal stress, which can affect product quality. Therefore, it is necessary to choose an appropriate heating rate based on the characteristics of the sintered material and process requirements.
Cooling rate: The cooling rate from high temperature to room temperature has a significant impact on the performance of sintered products. Some electric furnaces are equipped with air-cooled or water-cooled systems, which can achieve rapid and uniform cooling of workpieces.
6. Operation and control methods
Operation mode: Provides two operation modes, automatic and manual, for users to choose according to their needs.
Control method: Using programmable logic controller (PLC) to achieve precise control of temperature, vacuum degree and other parameters, improving the automation level of the sintering process.
Display and recording: Equipped with high-precision paperless recorder and touch screen, it intuitively displays the working status of the electric furnace and records key parameters during the sintering process for subsequent analysis and traceability.
7. Safety and protection functions
Fault self diagnosis: Electric furnaces should have a fault self diagnosis function to promptly detect and prompt potential faults, ensuring production safety.
Alarm and protection: Set up sound and light alarms and interlock protection devices for water pressure, overheating, overcurrent, etc., to ensure that measures can be taken quickly in case of abnormal situations and prevent accidents from occurring.
Heat dissipation and protection: Reasonable heat dissipation design and protective devices ensure stable operation of the electric furnace at high temperatures and extend its service life.
8. After sales service and technical support
After sales service: Choose suppliers with comprehensive after-sales service to ensure timely technical support and maintenance services during equipment use.
Technical training: Suppliers should provide necessary technical training to help users familiarize themselves with the operation and maintenance methods of the equipment.
9. Brand and price
Brand: Choose products from well-known brands that are usually more guaranteed in terms of quality, performance, and after-sales service.
Price: Choose appropriate equipment based on budget and demand, avoid blindly pursuing high configuration or low price, and ensure that the selected equipment has good cost-effectiveness.
Illustrate with examples

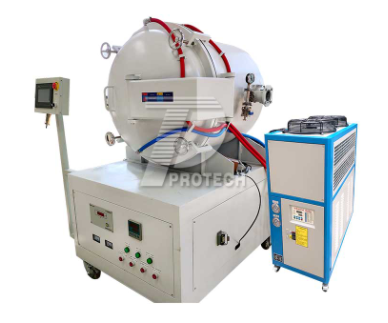

Taking PT-VX1600-12CWD vacuum ceramic sintering electric furnace as an example:
Furnace type: single chamber, horizontal
Work area size: 200mm × 200mm × 300mm
Maximum temperature: 1600 ℃
Temperature uniformity: ± 5 ℃
Heating element: silicon molybdenum rod
Heating power: 6kW
Temperature measuring element: B-type thermocouple
Temperature control accuracy: ± 1 ℃
Temperature control: 30 segment "time temperature" curve adjustable, PID automatic control
Operation mode: automatic and manual
Control mode: Programmable Logic Controller (CP1E PLC)
Additional functions: Water cooling system, fault self diagnosis, sound and light alarm, and interlock protection, etc
Summarize
When choosing a vacuum ceramic sintering electric furnace, multiple aspects should be considered, including furnace type and structure, heating method and temperature range, temperature uniformity, vacuum performance, heating and cooling rates, operation and control methods, safety and protection functions, after-sales service and technical support, as well as brand and price. By carefully comparing and evaluating products from different suppliers, choose the equipment that is more suitable for your needs to ensure the stability of the sintering process and the reliability of product quality.Click to learn more Vacuum furnaces! Or click on online customer service to learn more about product information!
