Tube furnace and muffle furnace are two commonly used heating devices in laboratories and industries, each with unique purposes and characteristics. Let's take a detailed look at how both of them are used in the west!

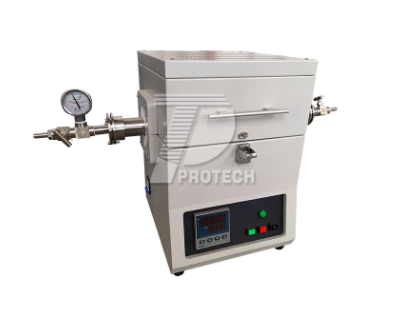

A commonly used standard tube furnace (click on the image to view product details)
The purpose of tube furnace
Tube furnace, also known as atmosphere furnace, is mainly used for high-temperature treatment of samples under specific atmospheres such as inert gas, reducing gas, or oxidizing gas. Its core feature lies in the design of the furnace tube, which allows the sample to be heated in a controlled atmosphere environment. Tube furnaces have a wide range of applications, including but not limited to the following aspects:
1. Material synthesis and preparation:
In the field of materials science, tube furnaces are commonly used for synthesizing and preparing various new materials, such as nanomaterials, ceramic materials, composite materials, etc. By precisely controlling the atmosphere and temperature, the microstructure and properties of materials can be regulated.
2. Sample processing:
In the fields of chemistry, physics, biology, etc., tube furnaces can be used for sample sintering, melting, pyrolysis, reduction and other treatments. For example, in the preparation process of catalysts, tube furnaces can be used for catalyst calcination and activation.
3. Atmosphere control experiment:
Tube furnaces can precisely control the atmosphere inside the furnace, allowing researchers to conduct experimental research under different atmospheric conditions. This is of great significance for understanding the properties of materials, reaction mechanisms, and developing new technological processes.
The purpose of the muffle furnace
Muffle furnace, also known as box furnace or electric furnace, is a universal heating equipment mainly used for high-temperature burning, melting, heat treatment and other processes. Its core feature lies in the design of the furnace, which allows the sample to be uniformly heated in a relatively enclosed space. The use of muffle furnace is also extensive, mainly including the following aspects:
1. High temperature burning:
Muffle furnace is commonly used in laboratories for high-temperature burning treatment of samples to remove organic matter, moisture, or other volatile components from the samples. This is of great significance for sample pretreatment in fields such as analytical chemistry and materials science.
2. Smelting and Casting:
In the field of metal smelting and casting, muffle furnace can be used for the smelting and casting process of metals. By precisely controlling temperature and time, it is possible to regulate the composition and properties of metals.
3. Heat treatment:
The muffle furnace can also be used for heat treatment of metal materials, such as quenching, tempering, annealing, etc. These processing steps can alter the microstructure and properties of metal materials, improving their hardness, toughness, or corrosion resistance.

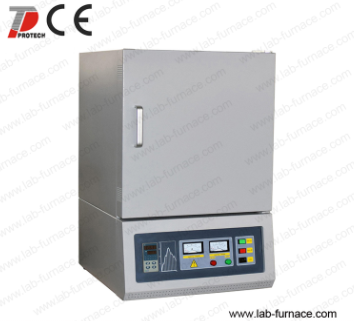

A commonly used standard muffle furnace (click on the image to view product details)
Comparison and summary of tube furnace and muffle furnace
| Tube furnace | Muffle furnace | |
| Core characteristics | Furnace tube design,controllable atmosphere | Furnace design, uniform heating |
| Main purpose | Material synthesis and preparation, sample processing, and atmosphere control experiments | High temperature burning, melting and casting, heat treatment |
| Applicable fields | Materials science, chemistry, physics, biology, etc | Analytical chemistry, metal smelting, casting, materials science, etc |
| Atmosphere control | Accurately control the atmosphere (inert, reducing, oxidizing, etc.) | Generally, there is no need for atmosphere control or atmosphere control is relatively simple |
Click to learn more PECVD devices! Or click on online customer service to learn more about product information!
