A tube furnace is a type of furnace that can be evacuated and can also pass through an atmosphere. Its main characteristics and applications are as follows:
Main features
High precision temperature control: Equipped with a good program temperature control system, it can achieve precise temperature control through intelligent PID temperature control algorithm. Within a wide temperature range, the temperature control accuracy can reach ± 1 ℃ or even higher, ensuring temperature stability during the experimental process.
Flexible program settings: Users can freely edit and set multi-stage temperature programs such as heating rate, holding time, cooling rate, etc. according to experimental needs, providing great flexibility for different types of experiments.
Good temperature uniformity: By designing the distribution of heating elements and furnace structure reasonably, and using thermal field simulation technology, the temperature uniformity inside the tubular furnace is effectively guaranteed. Within the effective heating zone of the furnace, temperature deviation can be controlled within a small range to ensure uniform heating of the sample throughout the entire heating process.
High vacuum degree: The vacuum atmosphere system can pump the atmosphere inside the tube furnace to a higher vacuum degree. This high vacuum environment almost eliminates all air and other impurity gases, providing ideal conditions for some experiments that require a high atmosphere.
Good atmosphere stability: Through a good gas flow control system and pressure feedback device, the stability of the atmosphere inside the furnace can be maintained, ensuring that the composition and pressure of the atmosphere remain basically unchanged throughout the entire experimental process.
Compact tubular structure: With a small footprint and space requirements, it is easy to install and integrate into various experimental systems. Meanwhile, the shape and size of the tube furnace can be customized according to different experimental requirements.
High quality insulation materials: The furnace adopts high-performance insulation materials such as ceramic fibers, which have good insulation performance and low thermal conductivity, and can effectively reduce heat loss and energy consumption.
Security protection function: equipped with a comprehensive security protection system, such as over temperature protection, over-current protection, leakage protection, gas leakage alarm and other functions. When abnormal situations occur, the system will immediately take corresponding protective measures to ensure the safety of experimental personnel and equipment.
Application area
Experimental tube furnaces are mainly used in industries such as metallurgy, glass, heat treatment, lithium positive and negative electrode materials, new energy, and grinding tools. They are professional equipment for measuring materials under certain temperature conditions. It has also been widely used in experiments and small-scale production in colleges, research institutes, industrial and mining enterprises, etc.

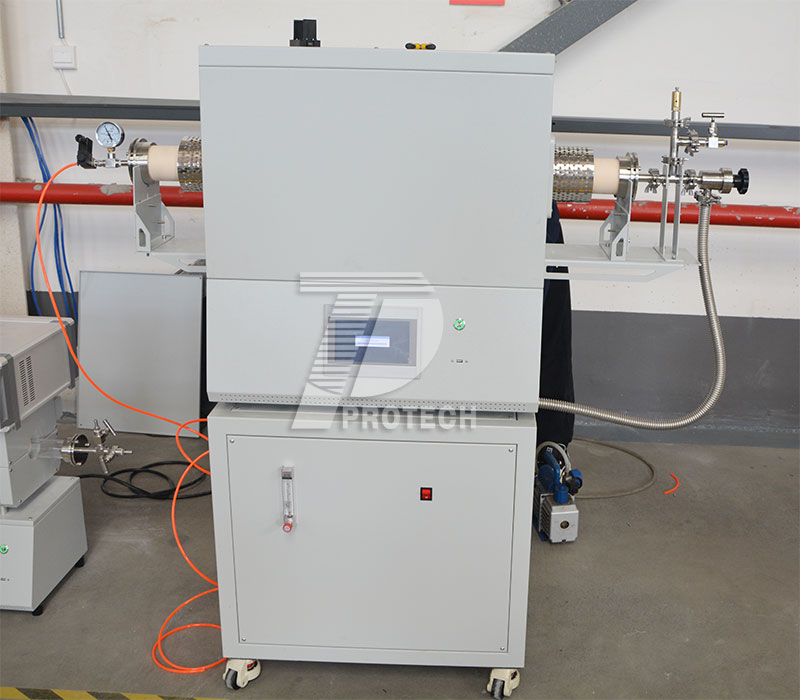

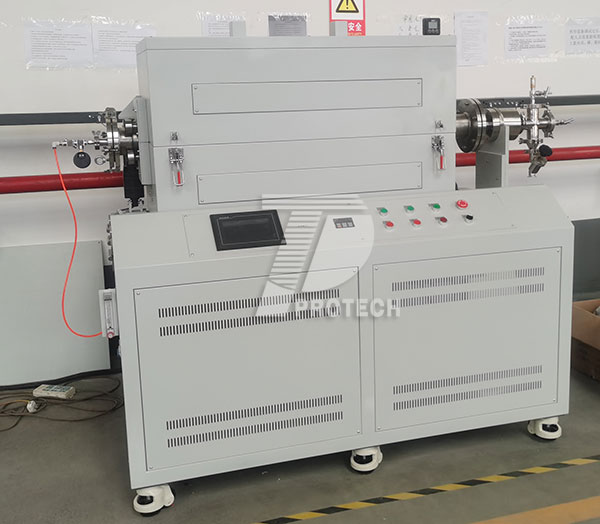

Rotating tilting vacuum atmosphere tube furnace (click on the picture to view product details)
Operation tips
When introducing the atmosphere, it is recommended to first evacuate and then introduce the corresponding atmosphere. If conditions permit, it can be repeated several times, so that the purity of the atmosphere inside the high-temperature electric furnace tube will be higher during the experiment.Click to learn more tube furnaces! Or click on online customer service to learn more about product information!
