Compared to ordinary tube furnaces, vertical tube furnaces have significant advantages in structural design, heating efficiency, operational convenience, application scenarios, and safety. Let's take a detailed look below!

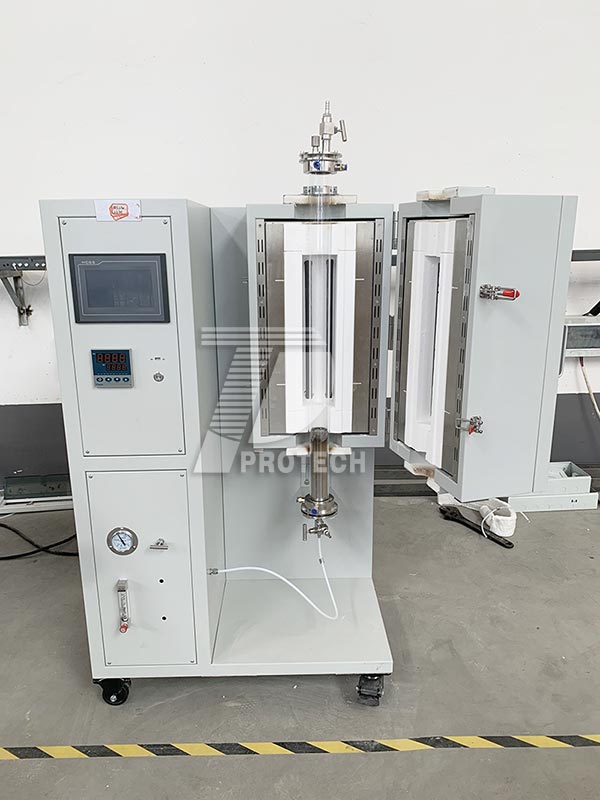

A commonly used vertical tube furnace (click on the image to view product details)

1. Structural design advantages
High space utilization rate
The vertical tube furnace adopts a vertical layout, with furnace tubes installed vertically and occupying a small area, making it particularly suitable for scenarios with limited space in laboratories or production sites. For example, a 1.2-meter-high vertical furnace only requires a ground area of 0.5 square meters, while a horizontal furnace of the same volume requires 1.2 square meters.
Strong modularity and scalability
Vertical tube furnaces can achieve multi station parallel processing by stacking multiple layers of furnace bodies (such as double-layer or three-layer structures), increasing production capacity by 30% to 50%, suitable for large-scale production needs.

2. Heating efficiency and uniformity advantages
Higher thermal efficiency
The vertical structure reduces the heat dissipation area on the side of the furnace, increases the heating rate by 15% to 20% under the same power, and reduces energy consumption by 10% to 15%. In addition, the gas inside the vertical furnace tube naturally rises, and with the design of bottom inlet and top outlet, a uniform temperature gradient can be formed to ensure the uniformity of temperature distribution inside the furnace.
Flexible adjustment of aspect ratio
The length to diameter ratio (L/D) of the vertical tube furnace can be customized to 20:1 or above, suitable for the growth of one-dimensional materials such as nanowires and fibers. For example, the preparation of carbon nanotube arrays requires furnace tubes with L/D ≥ 15:1, and a vertical structure can better meet this requirement.

3. Advantages of operational convenience
More convenient loading and unloading of materials
The top opening design of the vertical tube furnace, combined with the lifting mechanism, reduces the loading and unloading time of large-sized substrates (such as 4-inch wafers) to within 5 minutes, and increases efficiency by 40% compared to horizontal furnaces.
Cleaning and maintenance are more convenient
The residue on the inner wall of the vertical furnace tube is prone to slip under the action of gravity. With the automatic cleaning system, the cleaning cycle can be extended to twice that of traditional furnace types. In addition, modular design of heating elements, insulation layers, etc., with a single component replacement time of ≤ 1 hour, reduces maintenance costs.

4. Advantages of application scenarios
Dynamic process support
The vertical structure facilitates the design of rotating bases or vibrating feeding systems, and is suitable for dynamic deposition or powder calcination processes. For example, when calcining the positive electrode material of lithium-ion batteries, rotating the base can cause a particle size distribution D50 deviation of ≤ 5%.
Accurate control of atmosphere
The vertical structure facilitates the design of multi-stage air intakes (such as hydrogen reduction at the bottom and methane cracking in the middle), achieving atmosphere gradient distribution and reducing side reactions.

5. Advantages of safety and durability
Multiple protection functions
The vertical tube furnace is equipped with overheat and thermocouple protection functions, and some models are also equipped with overpressure, overcurrent, leakage and other protection systems to ensure that the equipment automatically cuts off the power supply in case of abnormal conditions, ensuring operational safety.
Stronger high-temperature stability
The furnace tubes of the vertical tube furnace are made of high-quality materials (such as quartz, ceramics, or metals), which have high temperature resistance, corrosion resistance, and other properties. The furnace is constructed using alumina polycrystalline fiber material or ceramic fiber material, which has strong thermal shock resistance and long service life.

6. Customization advantage
Vertical tube furnaces can be customized according to user needs, such as heating temperature zones (single or multiple temperature zones), furnace tube materials (quartz or metal, etc.), pipe diameter and length, etc., which can be selected according to specific experimental or production conditions, with higher flexibility and can meet the diverse needs of different users.

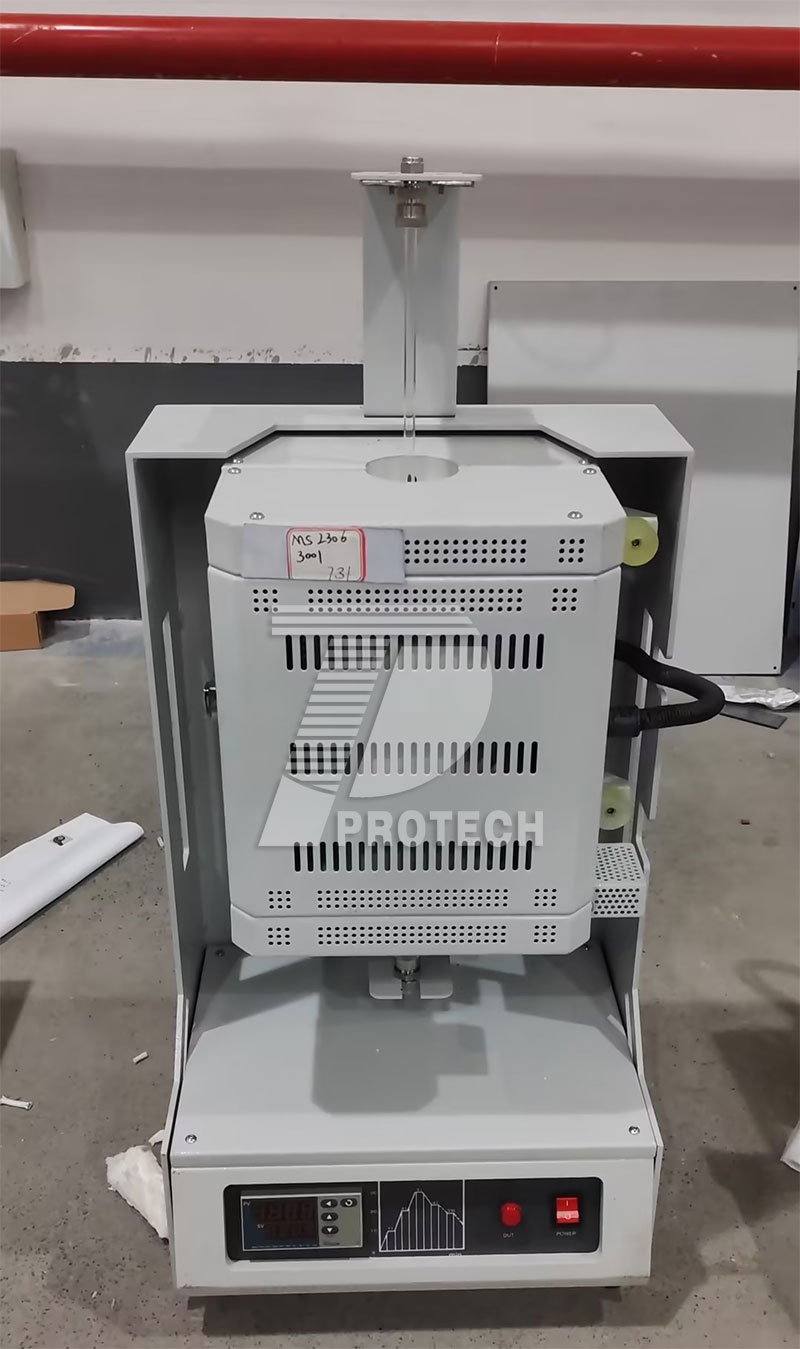

Customized mini experimental vertical tube furnace (click on the image to view product details)

Overall, vertical tube furnaces have many advantages compared to ordinary horizontal tube furnaces. It is recommended to consult relevant technical personnel before purchasing in order to customize a vertical tube furnace suitable for one's own experiment or production!Click to learn more Vertical tube furnaces! Or click on online customer service to learn more about product information!
