The vertical multi temperature zone tube furnace combines the advantages of vertical structure and multi temperature zone design, and has shown great value in material processing, heat treatment technology, and experimental research. Let's take a detailed look at its characteristics and advantages below!

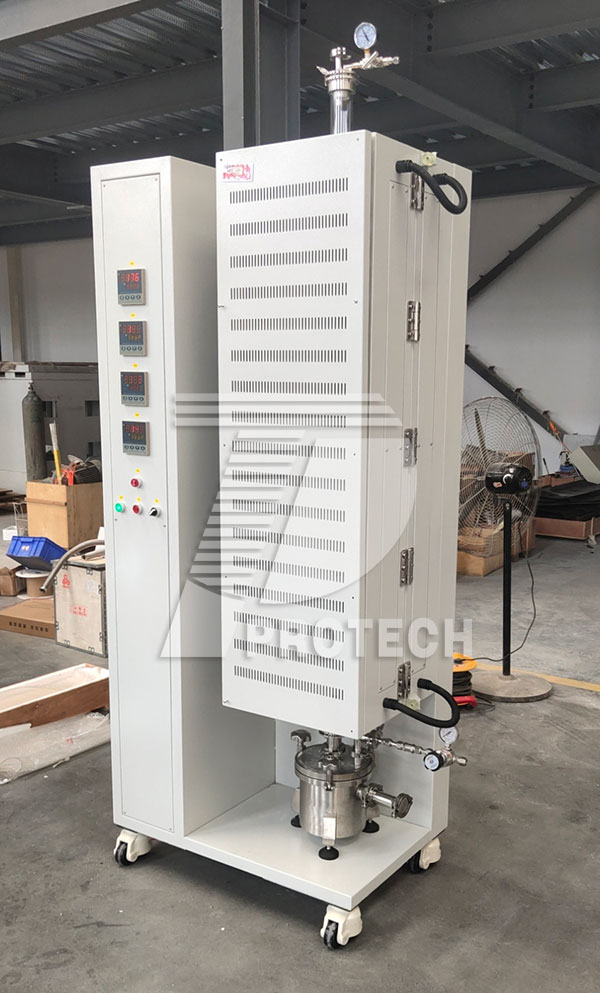

Customized vertical 5-zone tube furnace (click on the image to view product details)

1. Structural design advantages: efficient utilization of space and optimization of thermal field
Vertical layout, saving space
The vertical tube furnace adopts a vertical furnace tube design, which occupies a much smaller area than traditional horizontal furnaces. For example, a 1.2-meter-high vertical furnace only requires a ground area of 0.5 square meters, while a horizontal furnace of the same volume requires 1.2 square meters, making it particularly suitable for laboratory or production sites with limited space.
Multi layer furnace body, increased production capacity
By stacking multiple layers of furnace bodies (such as double-layer or three-layer structures), parallel processing of multiple workstations can be achieved, increasing production capacity by 30% to 50% and meeting the needs of large-scale production.
Uniform temperature gradient
The gas in the vertical furnace tube naturally rises, and with the design of bottom inlet and top outlet, a uniform temperature gradient can be formed to ensure the uniformity of temperature distribution in the furnace and reduce material thermal stress.

2. Multi zone independent control: precise process adaptation and flexible operation
Staged heating for improved efficiency
Each temperature zone can independently set the temperature, heating rate, and holding time to achieve precise staged control of the heating process. For example, one temperature zone is used for rapid heating, while the other is used for constant temperature insulation, shortening the time for materials to reach the target temperature and improving production efficiency.
Complex process adaptation
In complex heat treatment processes such as sintering, annealing, and deposition, different temperature conditions are required at different stages. Multi temperature zone design can complete multi-step processing in a continuous process, avoiding heat loss and contamination caused by sample transfer, and ensuring process stability.
Temperature uniformity guarantee
By independently controlling the heating power of each temperature zone, eliminating temperature gradients, ensuring uniform heating of the workpiece during heat treatment, and avoiding material performance inconsistencies or process defects caused by uneven temperature.

3. Efficient Energy Saving and Environmental Protection: Reducing Operating Costs
Accurate utilization of energy
Independent control of multiple temperature zones can avoid energy waste in global heating, only supplying energy to the required temperature zones. Combined with good insulation materials (such as alumina polycrystalline fibers) and air cooling systems, it reduces heat loss and achieves an energy-saving efficiency of over 30%.
Reduce waste rate
Accurate temperature control improves product quality consistency, reduces scrap rates caused by process defects, and minimizes resource waste and environmental pollution.

4. Intelligence and Security: Convenient Operation, Controllable Risks
intelligent temperature control system
Adopting microcomputer artificial intelligence regulation technology, supporting 30 segment program programming, it can program complex heating, constant temperature, and cooling curves, with a temperature control accuracy of ± 1 ℃ and small temperature fluctuations, ensuring experimental repeatability.
Multiple security protections
Equipped with functions such as overheating, overcurrent, leakage, and vacuum protection, some models also have overvoltage and overcurrent protection systems to ensure that the equipment automatically cuts off power in case of abnormal conditions, ensuring operational safety.
Intuitive operating interface
Modern vertical multi temperature zone tube furnaces are usually equipped with touch screens or remote control systems, which support real-time monitoring of temperature, atmosphere and other parameters, simplify the operation process, and reduce the risk of human error.

5. Application scenario expansion: meet diverse needs
material science
In the fields of semiconductors, nanomaterials, carbon fibers, etc., high-temperature treatment is required under specific atmospheres such as inert gases and reducing gases. The vertical multi temperature zone tube furnace can accurately control the atmosphere inside the furnace, support vacuum atmosphere sintering, and meet the needs of material synthesis, phase transition research, etc.
Chemical and Electronic Industries
Suitable for processes such as chemical vapor deposition (CVD) and crystal growth, the temperature gradient control of reactant decomposition and deposition is achieved through multi temperature zone design, optimizing the process effect.
Metallurgical and Ceramic Industry
In processes such as metal smelting and ceramic sintering, the vertical structure and uniform heating characteristics can improve product quality, reduce deformation and cracks, and are suitable for high-precision heat treatment requirements.

6. Customization and Scalability: Flexible Adaptation to Personalized Needs
Modular design
The heating element, insulation layer and other components adopt a modular structure, with a single component replacement time of ≤ 1 hour, reducing maintenance costs.
Adjustable parameters
We can customize the number of temperature zones, furnace tube materials (such as quartz, ceramic or metal), pipe diameter and length according to user needs, and adapt to different material processing specifications.
Peripheral system integration
Support the combination of vacuum control systems, gas flow regulation devices, etc., to achieve experiments in low, medium, and high vacuum environments and expand the application scope.

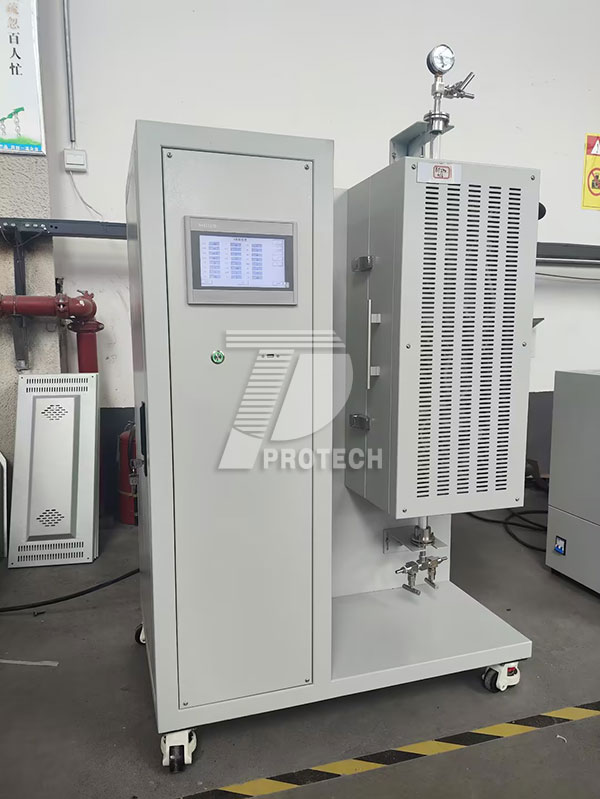

Customized Vertical 4-zone Tube Furnace (Click on the image to view product details)

Overall, the vertical multi temperature zone tube furnace has a wide range of applications due to its characteristics of vertical furnace tubes and multi temperature zone distribution structure. Before selecting, it is necessary to communicate the parameters with relevant technical personnel in order to choose a more suitable vertical multi temperature zone tube furnace for one's own experimental or production needs!Click to learn more Vertical tube furnaces! Or click on online customer service to learn more about product information!
