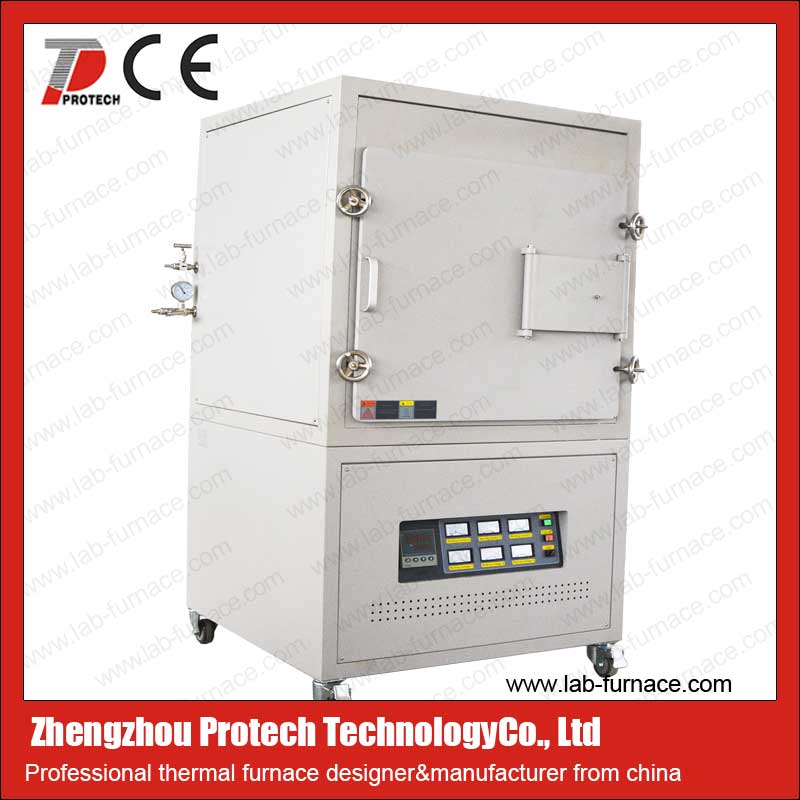

argon gas furnace
argon gas furnace
Model£ºPT-1700A
Description£ºArgon gas furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.
1. Max. energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3. PID automatic control via current limiting phase angle fired the resistor,e.g SCR (Silicon Controlled Rectifier)
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
Technical parameters of argon gas furnace£º
| Model | PT-1700A argon gas furnace |
| Display | LED |
| Max. temperature | 1700°C |
| Working temperature | ≤1600°C |
| Heating rate | Suggestion 0-20°C/min |
| Temperature accuracy | +/-1°C |
| Inside chamber | 300×300×400mm |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Rated power | 10KW |
| Working temperature | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
