Gradient tube furnace is a special type of tube furnace, also known as multi temperature zone tube furnace, characterized by the ability to form multiple different temperature zones within the same furnace tube, thereby meeting the processing requirements of materials under different temperature conditions.

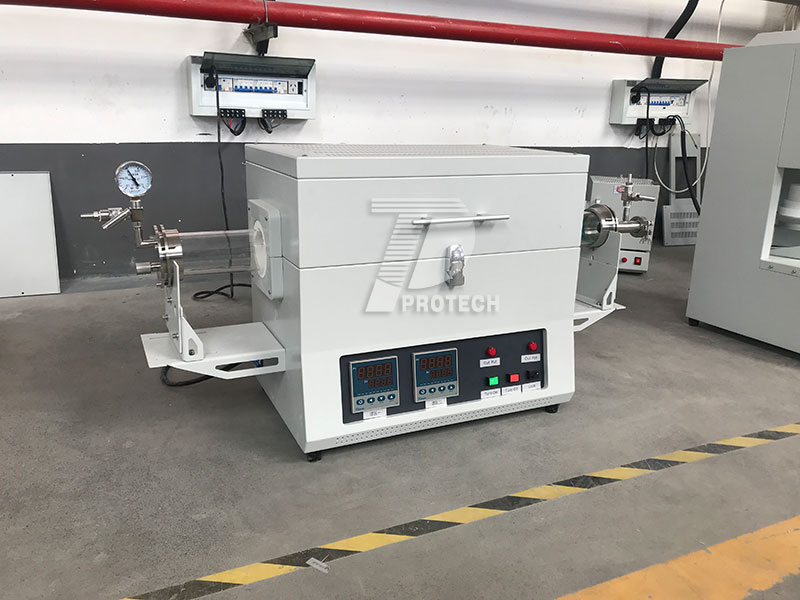

Commonly used two gradient tube furnace (click on the image to view product details)

Definition and Characteristics
Definition: Gradient tube furnace is an advanced heating device that creates a temperature gradient inside the furnace tube through special design, meaning that there are differences in temperature at different locations.

Characteristic:
Multi temperature zone: Multiple temperature zones can be formed within the same furnace tube, with controllable temperatures in each zone to meet complex process requirements.
Efficient heating: Using excellent heating elements such as resistance wires, silicon carbon rods, silicon molybdenum rods, etc., it has the characteristics of high efficiency, stability, and high temperature resistance.
Precise control: Equipped with a matching temperature control system, it can monitor and accurately adjust the temperature inside the furnace in real time, ensuring the stability and reliability of the process.
Atmosphere control: Some gradient tube furnaces also have an atmosphere control system that can control the composition and flow state of the atmosphere inside the furnace to meet specific process requirements.

Working principle
The working principle of gradient tube furnace is mainly based on the process of converting electrical energy into thermal energy. When current passes through a heating element, electrical energy is converted into thermal energy, resulting in high temperature. These heat are transferred to the materials or samples inside the furnace tube through thermal conduction and convection, achieving the desired heating temperature. Due to the special temperature gradient structure designed inside the furnace tube, materials or samples at different positions will undergo heat treatment at different temperatures.

Application area
Gradient tube furnaces have wide application value in multiple fields, including but not limited to:
Research field: Providing powerful tools for materials science research, used to study the changes in physical and chemical properties of materials at different temperatures, explore the phase transition laws, thermal stability, etc. of materials.
Industrial production: used for heat treatment of metal materials (such as annealing, quenching, etc.) to improve the mechanical and process properties of materials; It can also be used for sintering and melting processes of inorganic non-metallic materials such as ceramics and glass.
In the field of new energy, it is used for the preparation and performance testing of battery materials, which is beneficial for the development of new energy technology.
Material processing: used for the synthesis of nanomaterials and the preparation of thin film materials, achieving uniform growth and morphology control of nanoparticles through precise temperature gradient control, as well as specific structure and properties of thin film materials.

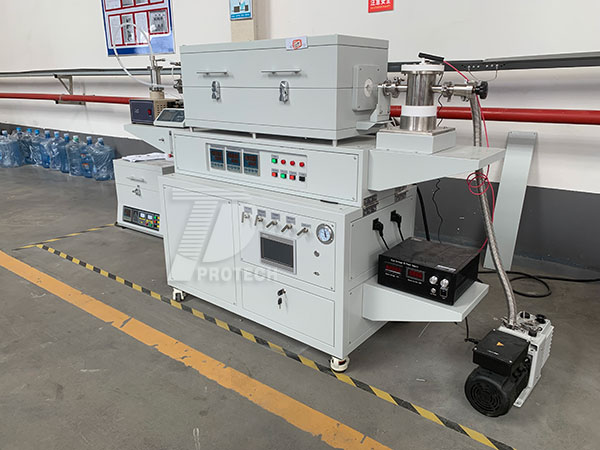

Commonly used triple gradient tube furnace (click on the image to view product details)

Development Trends
With the continuous development of technology, the technology of gradient tube furnaces is also constantly improving and upgrading. In the future, gradient tube furnaces will pay more attention to improving heating efficiency, optimizing temperature control, and enhancing atmosphere control capabilities to meet more complex and diverse process requirements. At the same time, with the rapid development of new energy, new materials and other fields, the application areas of gradient tube furnaces will continue to expand and deepen.Click to learn more Multi-Zone Tube Furnace! Or click on online customer service to learn more about product information!
