When processing powder materials in a vertical tube furnace, a series of steps and precautions need to be followed to ensure the safety and effectiveness of the processing process. Let's take a look at how a vertical tube furnace should handle powder materials!

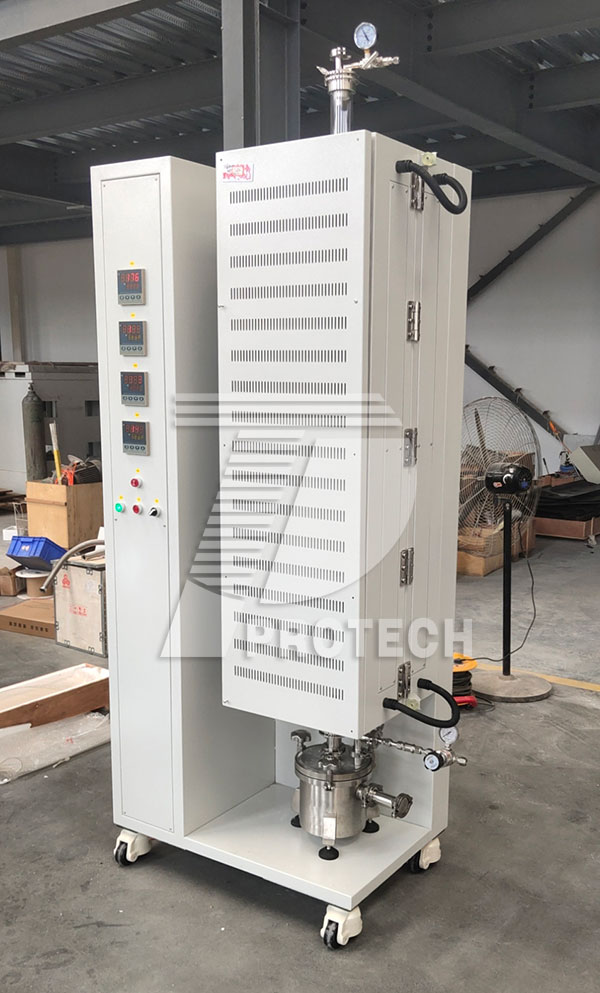

A commonly used vertical tube furnace (click on the image to view product details)

1. Preprocessing stage
Drying treatment:
Due to the possibility of moisture content in powder materials, it can affect their processing efficiency in tube furnaces, so drying treatment is necessary first.
The powder can be placed in a drying oven and dried at an appropriate temperature and time. The drying temperature and time need to be adjusted according to the specific material and moisture content of the powder.
Another method is to use a freeze dryer, which can effectively remove moisture while maintaining the integrity and activity of the sample, but the operation is difficult and requires attention to the freezing speed, vacuum degree, and temperature of the sample.

Filtering and Mixing:
After drying, it may be necessary to screen the powder to remove impurities and insufficiently dried particles.
If necessary, different types of powders can also be mixed to meet specific experimental or production needs.

2. Loading and Placement
Select container:
It is necessary to choose sample containers suitable for tube furnaces, such as ceramic boats, quartz tubes, etc. The container should have good high temperature resistance and not affect the processing effect of powder materials.
The size and shape of the container should be selected based on the amount of powder material and the specifications of the tube furnace.

Loading powder:
Load the preprocessed powder into a container and ensure even distribution of the powder.
If necessary, a thin layer of refractory material can be laid at the bottom of the container to prevent direct contact between the powder and the furnace.

Placement position:
Place the container containing the powder in the appropriate position of the tube furnace. According to experimental or production requirements, it may be necessary to place the container in different areas of the furnace (such as low temperature zone, high temperature zone, etc.).

3. Operation and Control
Set program:
Set the heating program for the tube furnace according to experimental or production requirements. This includes parameters such as heating rate, target temperature, and holding time.
A segmented heating method can be used to better control temperature changes and the processing effect of powder materials.

Protecting the Atmosphere:
During the processing, it is necessary to maintain a certain protective atmosphere inside the tube furnace (such as inert gases such as nitrogen and argon) to prevent powder materials from being oxidized or reacting with impurities in the atmosphere.
It is necessary to ensure stable flow and pressure of the protective atmosphere and make adjustments as needed.

Temperature control:
During the processing, it is necessary to control the temperature of the tube furnace to avoid powder material failure caused by excessive or insufficient temperature.
Thermocouples and other temperature sensors can be used to monitor the furnace temperature in real time and adjust it as needed.

Air flow control:
It is necessary to control the air flow inside the tube furnace to avoid pipeline blockage or contact between powder materials and accumulated impurities inside the furnace.
Air flow control can be achieved by adjusting the ventilation system inside the furnace or changing the flow rate of the protective atmosphere.

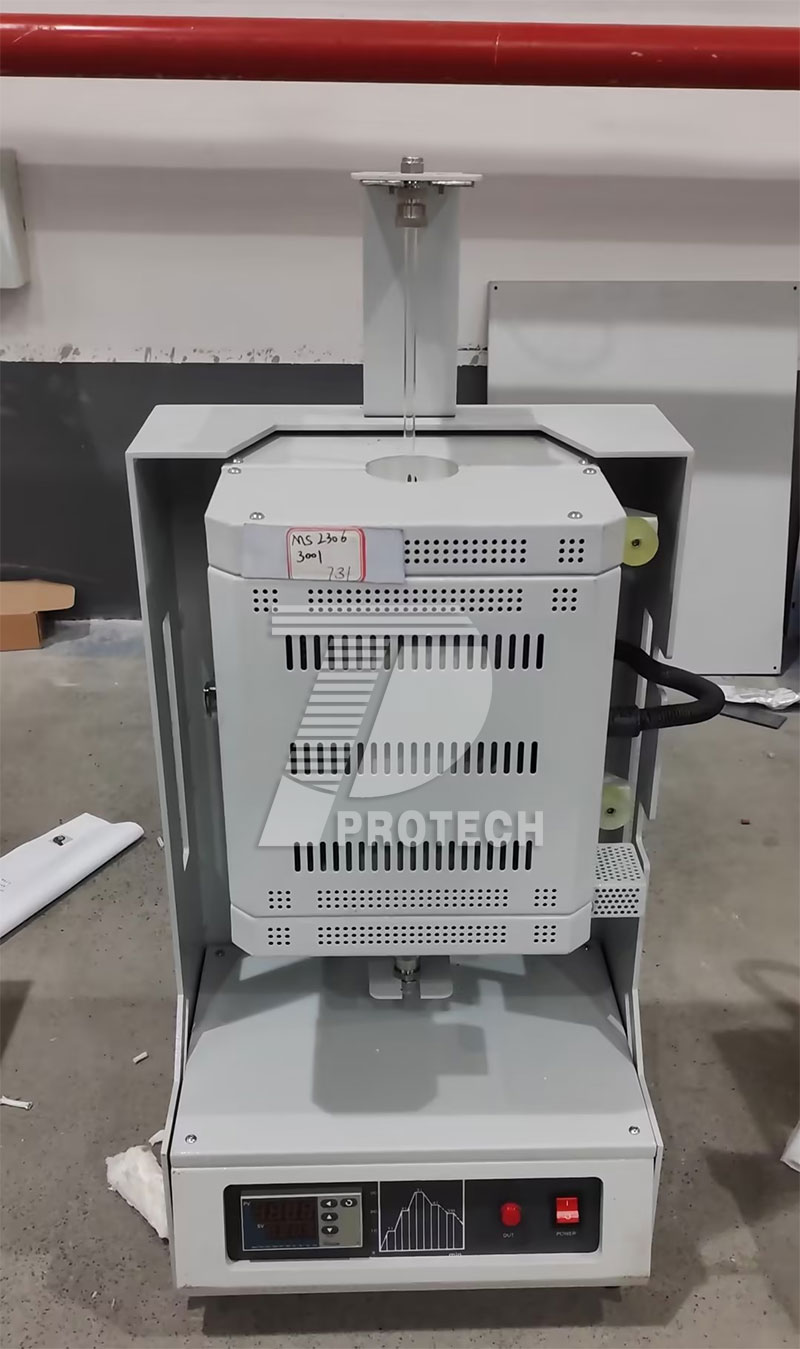

Experimental mini vertical tube furnace (click on the picture to view product details)

4. Subsequent processing
Cooling and Sampling:
After processing, the tube furnace needs to be allowed to cool naturally to room temperature before sampling. This can prevent sample breakage or deformation caused by rapid cooling.
Attention should be paid to safety during sampling to avoid burns or inhalation of harmful substances.

Cleaning and maintenance:
Regularly clean and maintain the tube furnace to ensure its normal operation and extend its service life.
When cleaning, it is important to use appropriate cleaning agents and tools to avoid damage to the furnace and pipelines.

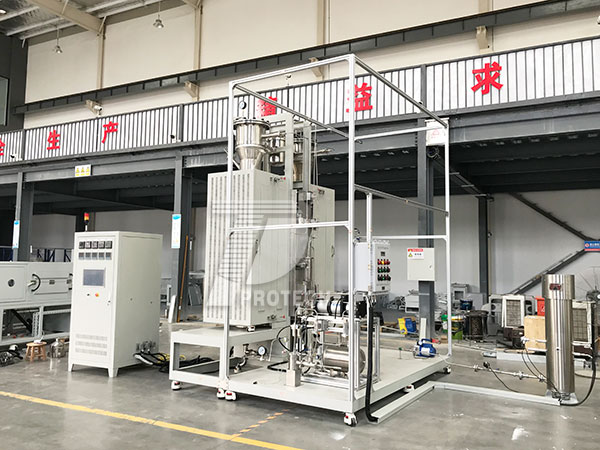

Industrial vertical tube furnace (click on the picture to view product details)

So, the processing of powder materials in a vertical tube furnace requires multiple stages, including pretreatment, loading and placement, operation and control, and subsequent processing. Attention to details and safety issues is necessary at every stage to ensure smooth processing and the quality of the final product.Click to learn more Vertical tube furnaces! Or click on online customer service to learn more about product information!
