The common faults and troubleshooting methods in CVD (Chemical Vapor Deposition) process involve multiple aspects, mainly including temperature control, gas flow and mixing, reactant concentration, substrate treatment, equipment cleaning, and overall process stability. So what faults will CVD encounter during use? How to solve the problem after a malfunction occurs? Let's take a look below!

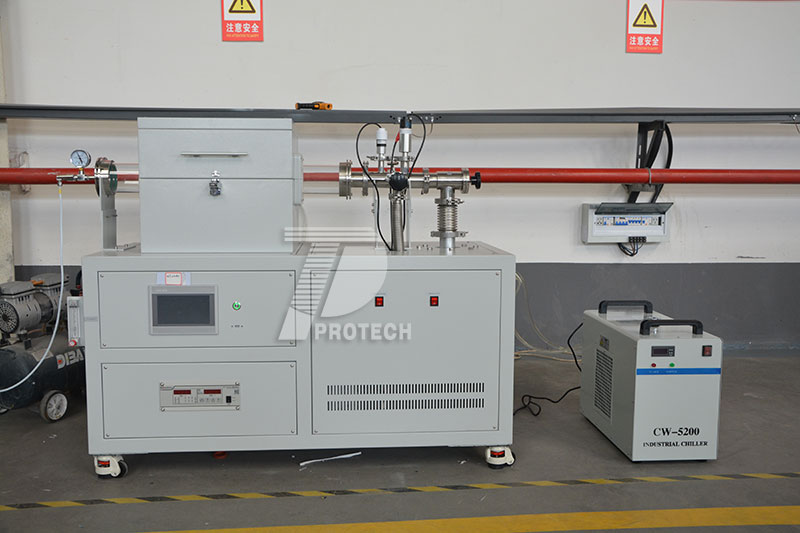

Commonly used multi gas path CVD electric furnace (click on the image to view product details)

1. Temperature control malfunction
Common faults
The temperature cannot reach the set value
Possible reasons: heating element malfunction, control system issues, temperature sensor malfunction.
Exclusion method: Check whether the heating element is damaged or aged, and replace it if necessary; Check the control system, including controller and PID parameter settings, to ensure normal operation; Check the temperature sensor, confirm its accuracy and position, and calibrate or replace it if necessary.

Large temperature fluctuations
Possible reasons: wind circulation system malfunction, poor thermocouple contact, unstable control system.
Exclusion method: Check the air circulation system to ensure normal air circulation, and adjust the baffle to open appropriately; Check the connection of the thermocouple to ensure good contact; Adjust PID parameters to optimize the stability of the control system.

High temperature triggers safety device
Possible reasons: high temperature setting, control system malfunction, safety device triggering.
Exclusion method: Reduce the temperature setting value to ensure it is within a safe range; Check the control system and troubleshoot; Check the safety device and confirm its normal operation.

2. Gas flow and mixing faults
Common faults
Uneven gas flow
Possible reasons: inaccurate gas flow control and unreasonable design of gas distribution system.
Exclusion method: Accurately control the reactant flow rate, optimize the gas distribution system design, and ensure uniform gas flow.

Uneven gas mixing
Possible reasons: design defects in the reaction chamber and poor performance of the mixing device.
Exclusion method: Optimize the reaction chamber design to improve mixing performance, such as adding a mixer or adjusting the inlet position; Strengthen the monitoring of the reaction process to ensure even gas mixing.

3. Reagent concentration malfunction
Common faults
Unstable concentration of reactants
Possible reasons: unstable gas supply system and insufficient flow control accuracy.
Exclusion method: Check the gas supply system to ensure stable gas supply; Improve flow control accuracy by using high-precision flow meters and controllers.

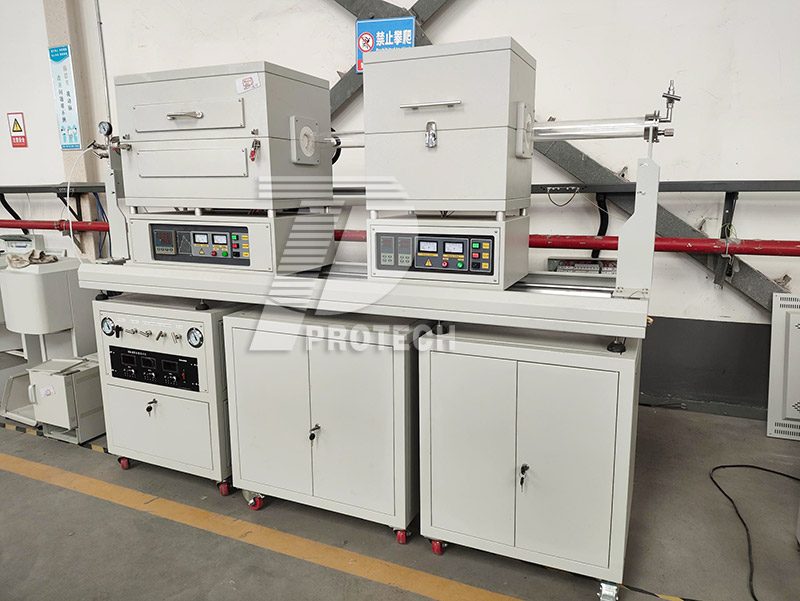

Double furnace slide CVD electric furnace (click on the picture to view product details)

4. Substrate processing failure
Common faults
Uneven surface of substrate
Possible reasons: improper pretreatment process, substrate material issues.
Exclusion method: Improve the substrate pretreatment process, such as adding grinding and polishing steps; Replace with substrate materials of better quality.

Poor adhesion between substrate and deposition layer
Possible reasons: Incomplete surface treatment of the substrate and impurities in the atmosphere gas.
Exclusion method: Improve the quality of substrate pretreatment process to ensure that the surface is clean and free of impurities; Improve the purity of the atmosphere gas and use high-purity gas for deposition.

5. Equipment cleaning malfunction
Common faults
Possible reasons for incomplete equipment cleaning include improper cleaning methods and inappropriate selection of cleaning agents.
Exclusion method: Strengthen equipment cleaning work, use appropriate cleaning agents and methods to ensure that there are no residues inside the equipment.

6. Overall process stability failure
Exclusion method
Real time monitoring and control system
Introduce better real-time monitoring technologies (such as spectroscopic analysis, atomic force microscopy, etc.) to monitor key parameters in the reaction process in real-time and adjust process parameters in a timely manner to ensure stable reaction conditions.

Optimize process parameters
Accurately control parameters such as reaction temperature, gas flow rate, pressure, etc., and find better process conditions through experimental design and data analysis to avoid faults.

Equipment maintenance and cleaning
Regularly maintain and clean the equipment to avoid residue accumulation and prevent malfunctions, ensuring that the equipment is in better condition.

Standard Operating Procedures
Develop and adhere to standard operating procedures (SOP), standardize operational steps to reduce the occurrence of failures caused by human errors, and ensure the stability and reliability of the production process.

Continuous improvement and innovation
Encourage the team to continuously improve process technology, introduce innovative concepts, expand methods for solving faults, and continuously improve production efficiency and product quality.

Training and skill enhancement
Regular training and skill enhancement should be provided to operators to enable them to master the principles, operating procedures, and troubleshooting methods of CVD process proficiently, reducing the occurrence of faults caused by human factors.

Feedback mechanism and data analysis
Establish a comprehensive fault feedback mechanism to promptly record and analyze the causes of faults, and take corresponding improvement measures to prevent similar faults from happening again.

quality management system
Introduce a quality management system (such as ISO quality management system), establish a quality monitoring system and process, and strictly control each link to ensure the stability and controllability of the production process.

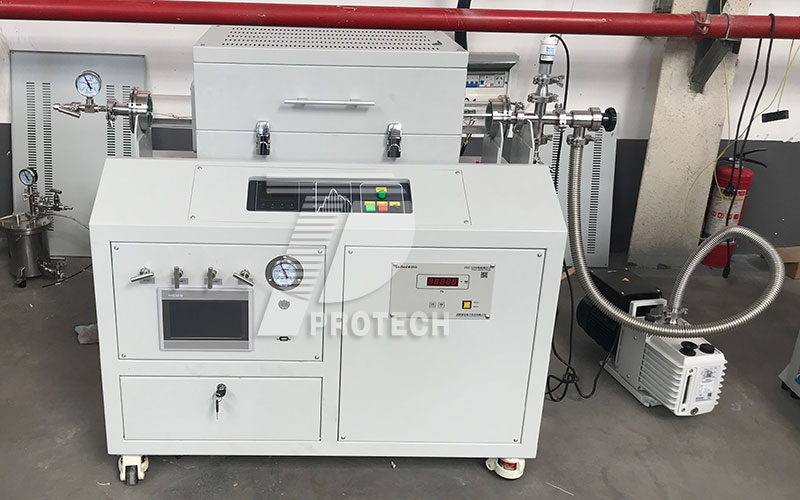

Customized large diameter vacuum CVD electric furnace (click on the image to view product details)

The above measures can effectively solve common faults in CVD process and improve the stability and reliability of the process.Click to learn more CVD devices! Or click on online customer service to learn more about product information!
